    3 Column Radiator - Horizontal Triple Column Radiator in White or Black

    In stock
    SKU
    DUSC-COL-3H
    As low as £123.00
    Add to Wish List Add to Compare

    Need Help?

    Call an heating expert on 01282 429061

    Key Features

    More Information
    Width 1040 mm
    Manufacturer DUSC

    Product Details

    DUSC Columns

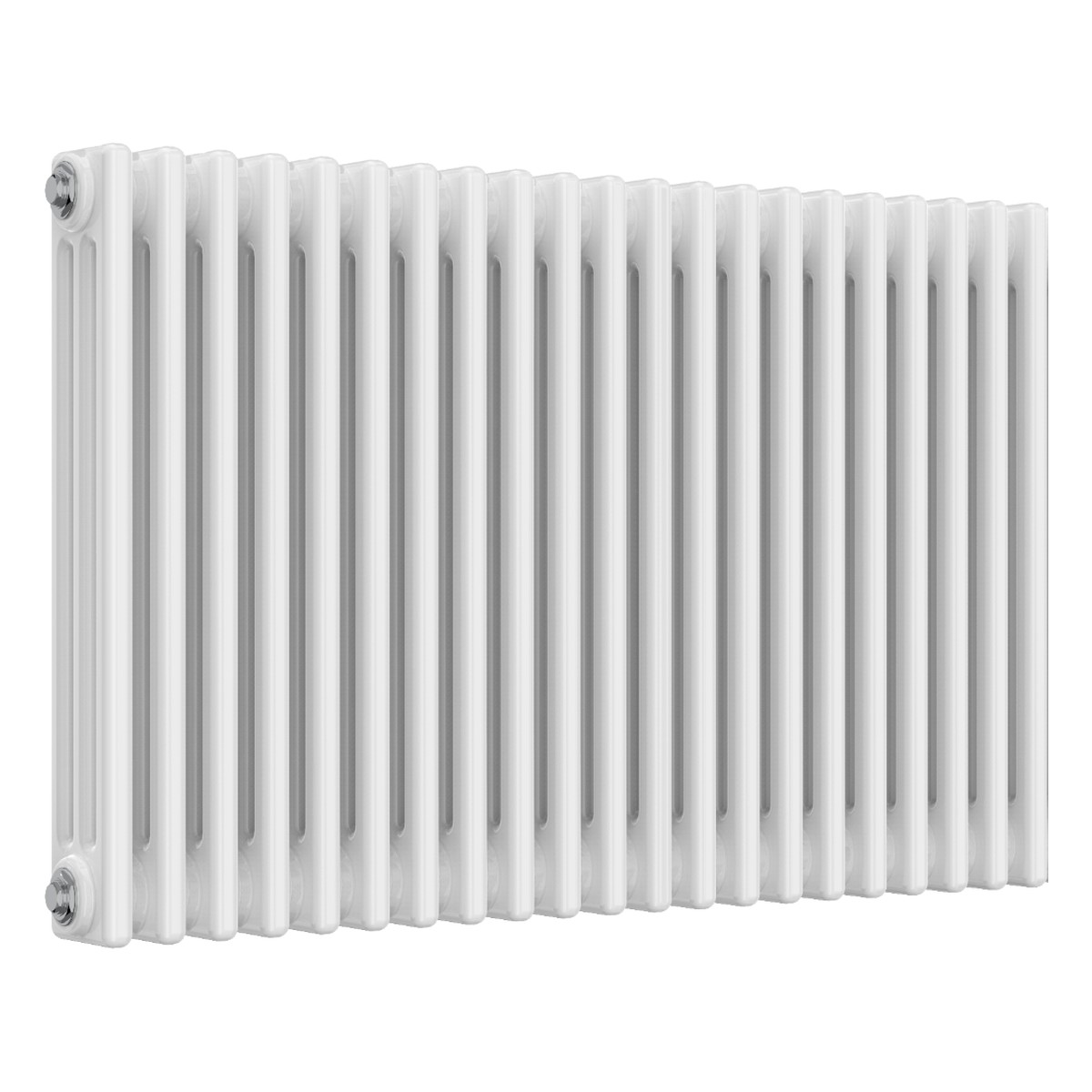

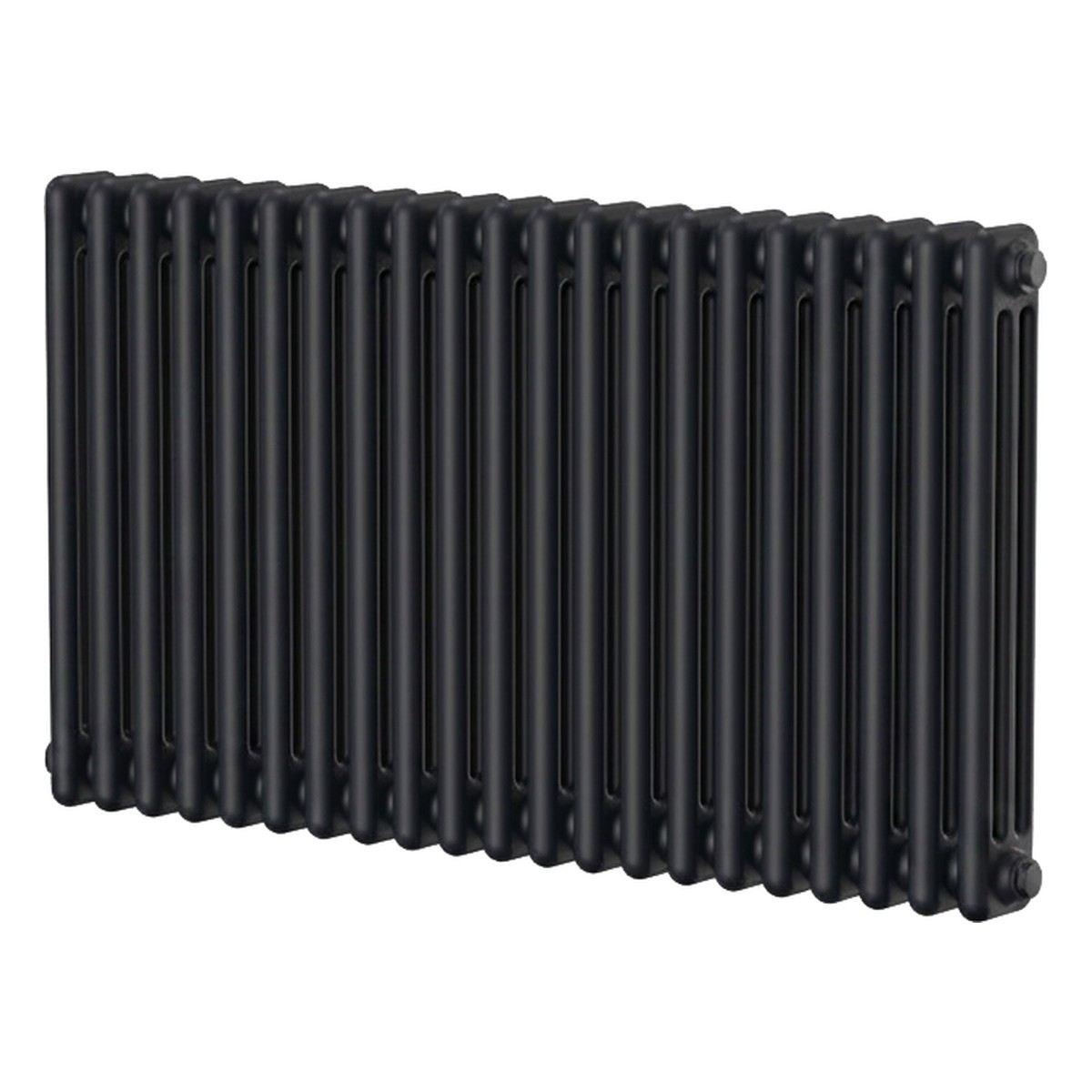

    3 Column Radiator in White or Black - 34 Exact Sizes

    The most popular traditional column radiator: triple column mild steel with the look of cast iron, 118mm deep. Choose your colour, height and width above - every size shows its BTU, watts and pipe centres before you buy.
    WhiteBlack3 ColumnHorizontal118mm DeepMatching Feet Available5 Year GuaranteeFree UK Delivery
    Up to 7,610
    BTU dT50
    300-750
    Height (mm)
    425-1370
    Width (mm)
    118mm
    Projection
    2
    Colours
    5yr
    Guarantee
    Overview

    The 3 column radiator is the classic choice - deep enough to put out real heat, slim enough at 118mm to suit most rooms. This triple column radiator comes in white in 28 sizes, from low 300mm and 400mm heights that sit under a window up to 750mm high, and in black in 6 widths at 600mm high. Outputs run from 1,258 to 7,610 BTU.

    Every DUSC Columns radiator is made from mild steel with a hard-wearing powder coat finish and carries a 5 year guarantee. You get the look of a cast iron column radiator at a fraction of the weight, and because the pipe centres match the width, it lines up easily with existing pipework.

    Tight for depth? The 2 column radiator is 92mm deep. Need more heat from the same wall? See the 4 column radiator or the high output 6 column radiator. Going tall? See the 3 column vertical radiator, or browse all column radiators.

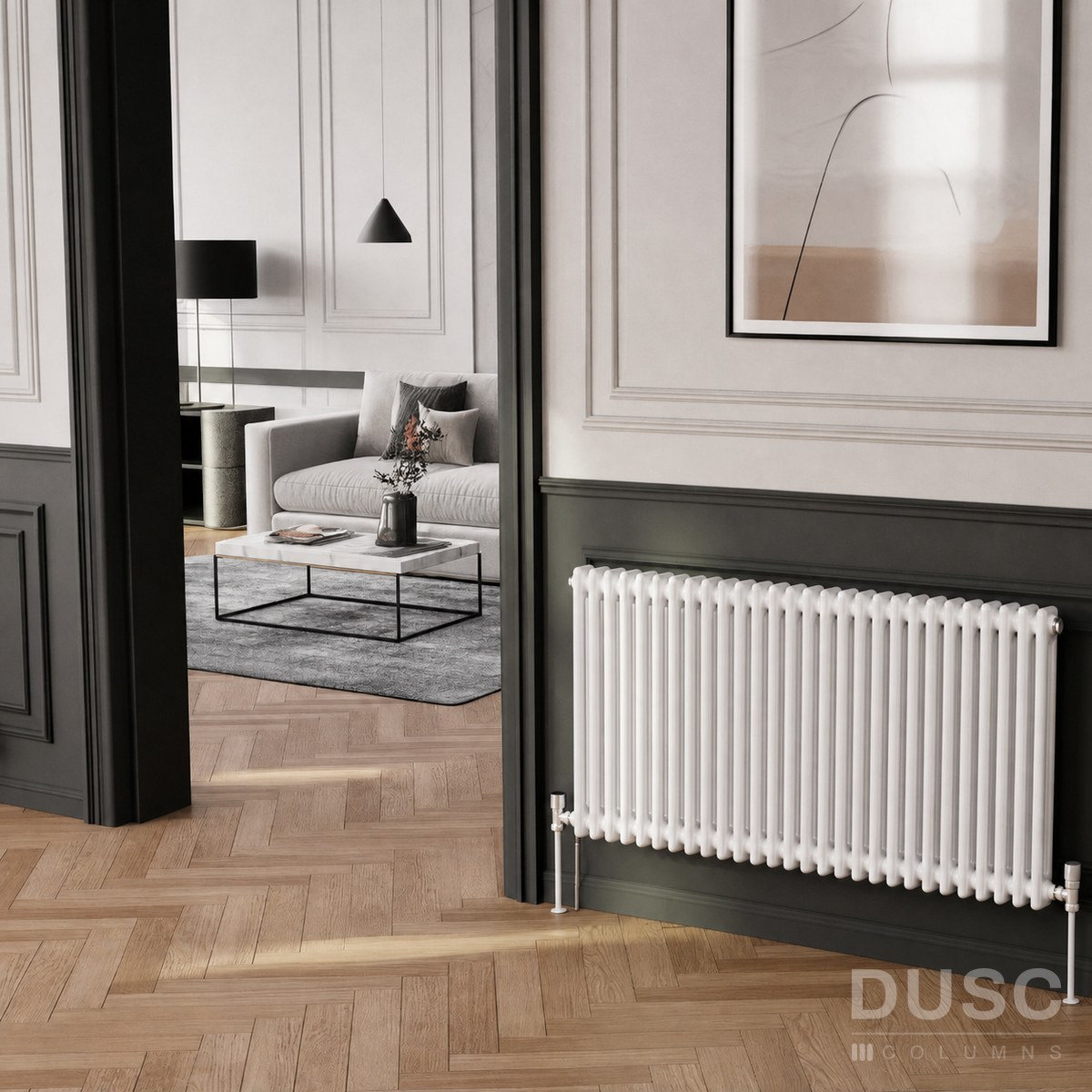

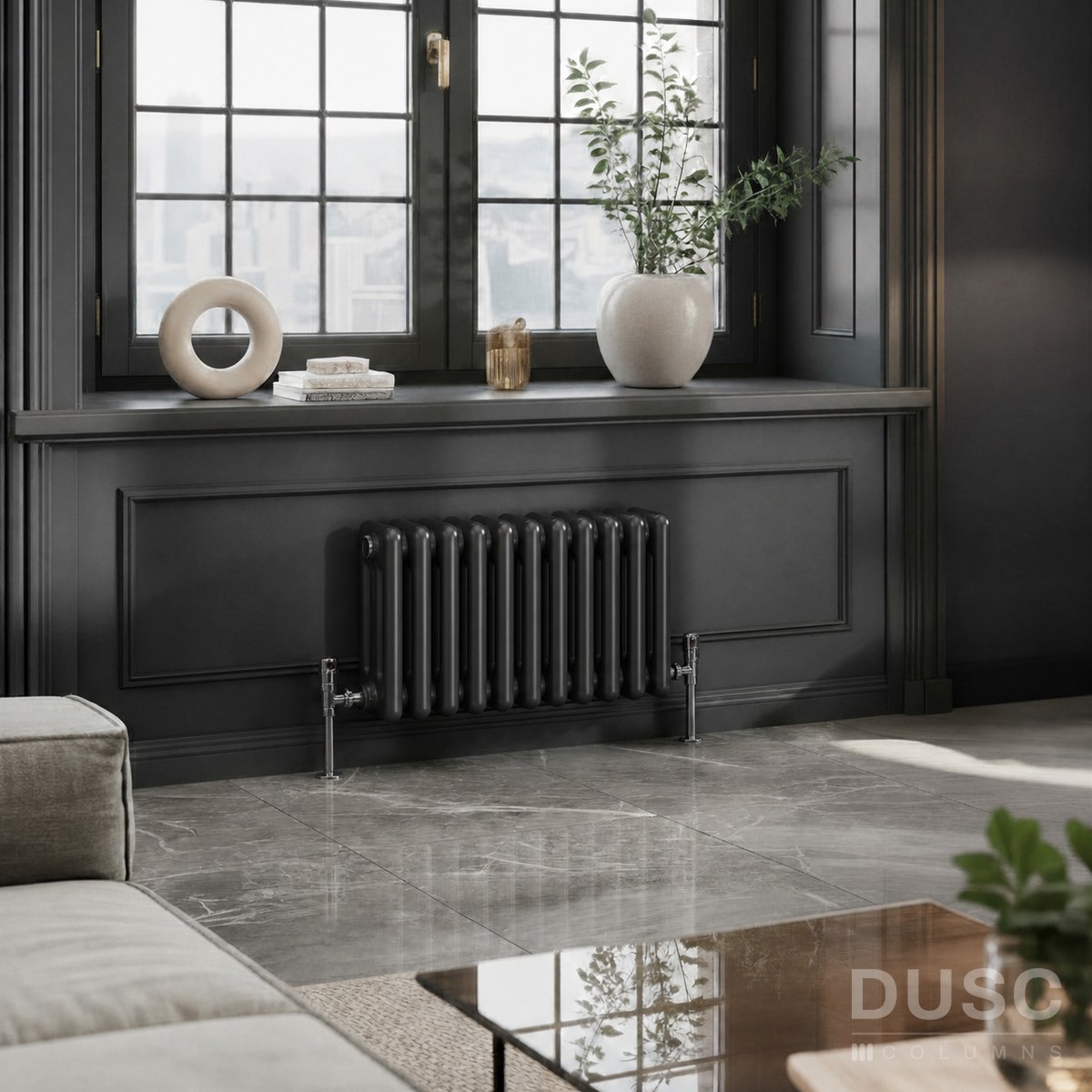

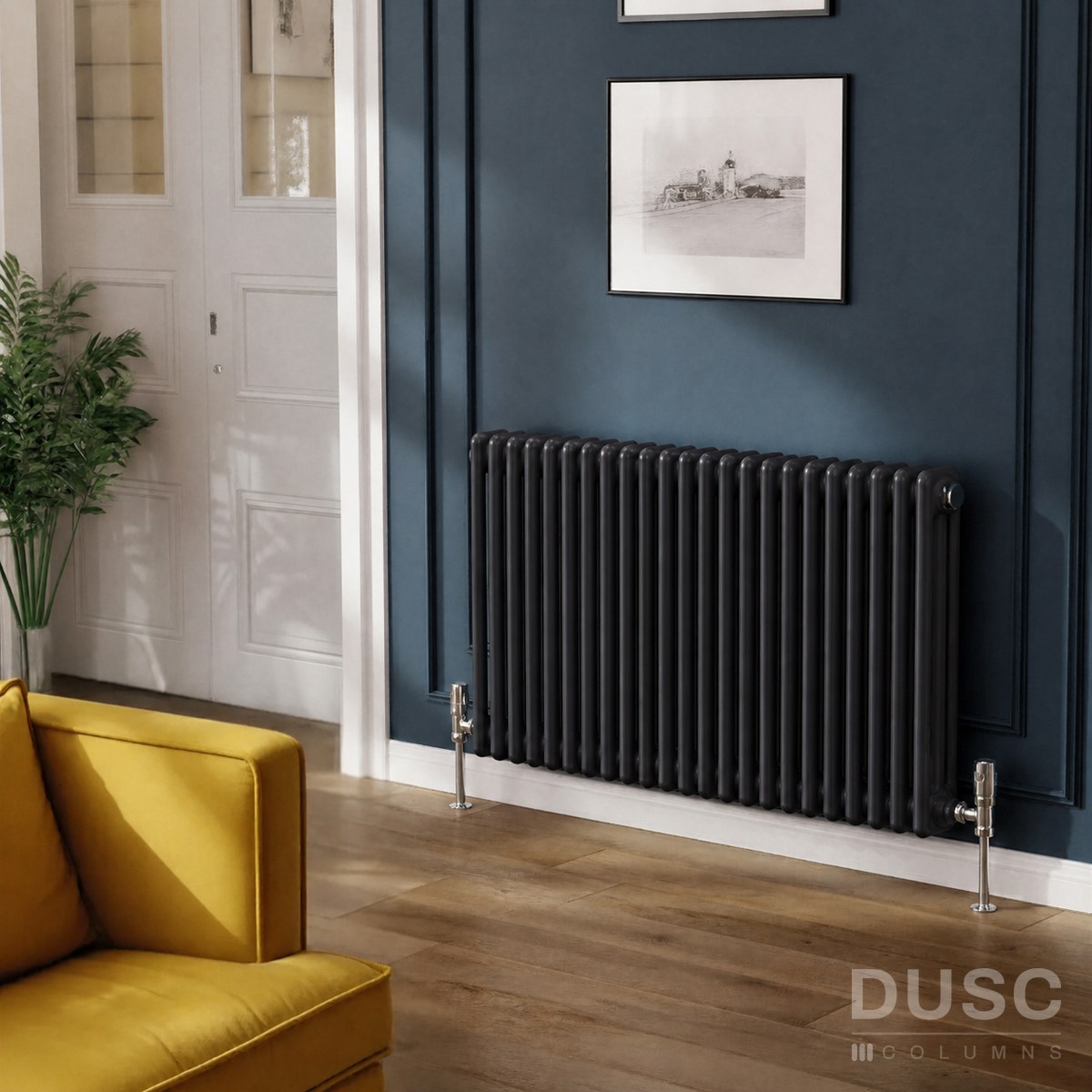

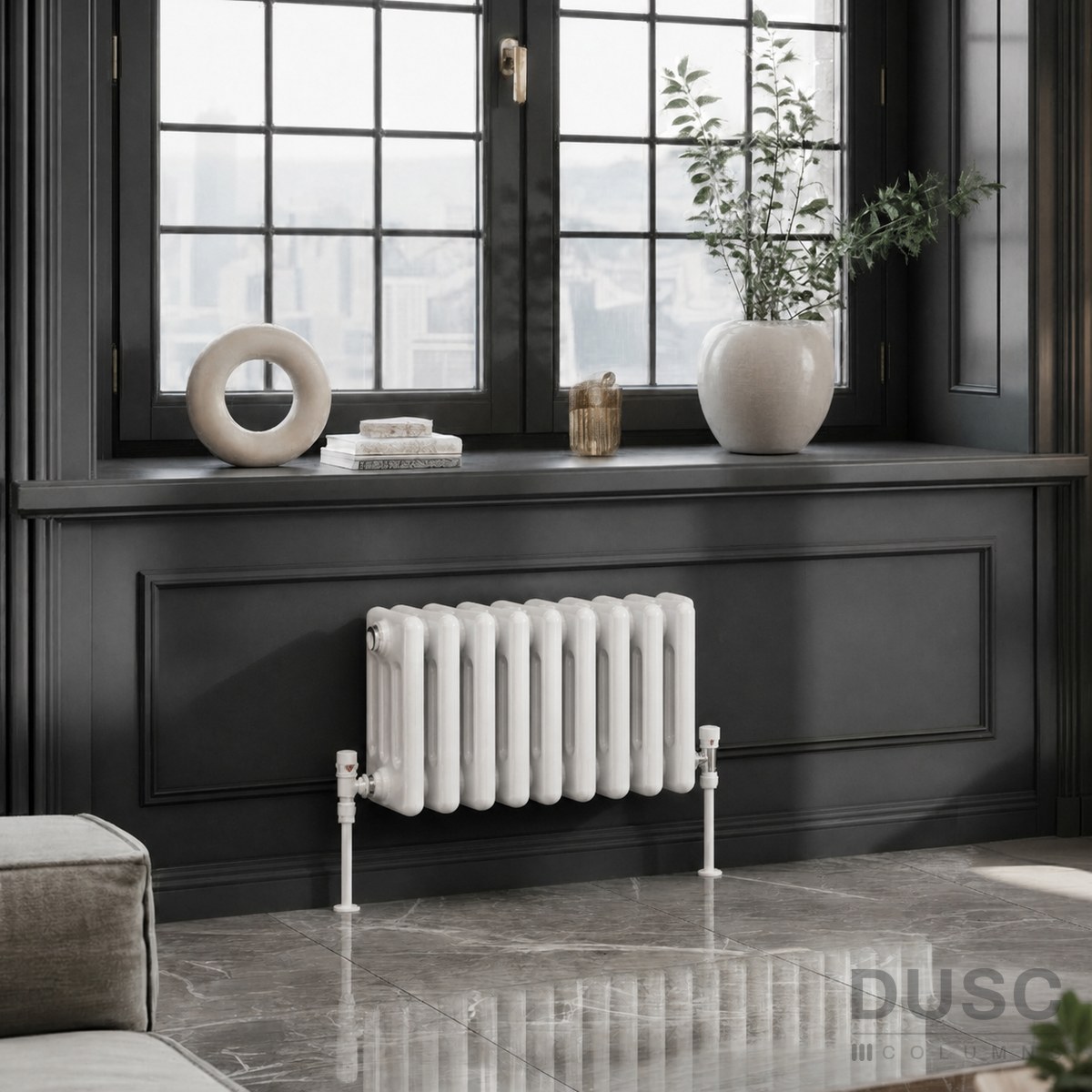

    Room photography shows the range style - section count varies by size, so check the size table for the exact model.

    Sizes & BTU

    Heat output for every size at Delta T50. On this range the pipe centres are the same as the width. Choose your colour, height and width above and the price, BTU and watts update to match.

    Height x widthSectionsBTU (Delta T50)WattsPipe centresColours
    300 x 830mm181,888554830mmWhite
    300 x 965mm212,202645965mmWhite
    300 x 1190mm262,7267991190mmWhite
    300 x 1370mm303,1459231370mmWhite
    400 x 425mm91,258369425mmWhite
    400 x 605mm131,818533605mmWhite
    400 x 830mm182,517738830mmWhite
    400 x 965mm212,936861965mmWhite
    400 x 1190mm263,6351,0661190mmWhite
    400 x 1370mm304,1931,2301370mmWhite
    500 x 425mm91,552455425mmWhite
    500 x 605mm132,242658605mmWhite
    500 x 830mm183,104910830mmWhite
    500 x 965mm213,6221,063965mmWhite
    500 x 1190mm264,4861,3161190mmWhite
    500 x 1370mm305,1751,5181370mmWhite
    600 x 425mm91,833538425mmWhite | Black
    600 x 605mm132,648777605mmWhite | Black
    600 x 830mm183,6531,071830mmWhite | Black
    600 x 965mm214,2621,250965mmWhite | Black
    600 x 1190mm265,2771,5481190mmWhite | Black
    600 x 1370mm306,0881,7851370mmWhite | Black
    750 x 425mm92,292672425mmWhite
    750 x 605mm133,310971605mmWhite
    750 x 830mm184,5661,339830mmWhite
    750 x 965mm215,3281,563965mmWhite
    750 x 1190mm266,5961,9341190mmWhite
    750 x 1370mm307,6102,2321370mmWhite

    Black is made in the 600mm height, in all six widths.

    Each size also has its own page - click the colour to see it.

    Specifications
    RangeDUSC Columns
    Type3 column radiator (horizontal)
    ColoursWhite or black powder coat
    Heights300mm, 400mm, 500mm, 600mm, 750mm
    Widths425mm, 605mm, 830mm, 965mm, 1190mm, 1370mm
    Projection from wall118mm
    Wall to pipe centres68mm
    Heat output (Delta T50)1,258 to 7,610 BTU (369 to 2,232 watts)
    Pipe centresSame as the width
    Valve positionBottom, at opposite ends
    MaterialMild steel
    Weight (empty)11.79 to 58.13kg depending on size
    Guarantee5 years
    In the boxRadiator, wall brackets, fixing kit, instructions
    ValvesNot included - sold separately
    FeetOptional matching feet, 140mm high - decorative, not load bearing
    Fitting
    Replacing an existing radiator? On this range the pipe centres are the same as the width - a 965mm wide radiator has 965mm pipe centres. Pick the width that matches your current pipework and it drops straight on, with no re-piping.

    Fitting is a routine job for any plumber or a confident DIY installer.

    • Connects to a standard UK two-pipe central heating system.
    • Valves fit at the bottom, at opposite ends. Add 90mm to the pipe centre measurement when fitting with valves.
    • Brackets hold the radiator 118mm off the wall, with the pipes 68mm out - allow for that when planning skirting or furniture.
    • It is heavier full of water: fix into masonry or studwork, and use fixings rated for the filled weight on plasterboard.
    • Flush the system and dose inhibitor after fitting, as with any steel radiator.
    Feet & Valves

    Matching 3 column feet are available in white or black, supplied as a pair and finished to match. They stand 140mm high and give the radiator the look of a traditional floor standing cast iron column radiator. Choose them in the Matching Feet option above - pick the colour that matches your radiator.

    The feet are decorative and are not load bearing. The radiator must still be fixed to the wall using the brackets supplied - the wall fixings carry the full weight of the radiator when it is filled with water.

    Valves are not included - you need a pair: one wheelhead or thermostatic valve and one lockshield. Browse our radiator valves and accessories, including thermostatic radiator valves.

    • Traditional cross-head valves complete the period look.
    • A thermostatic valve holds a room at a set temperature.
    • Angled, corner and straight valves all suit this radiator - choose by where your pipes come out of the wall or floor.
    Delivery & Returns

    Orders are picked from UK stock and sent out carefully packed.

    • FREE UK mainland delivery on this radiator - typically 3 to 5 working days.
    • Check the radiator on arrival and report any transit damage straight away.
    • 30 day returns on unused radiators in original packaging.
    • Questions on access or timed delivery? Call us on 01282 429061.
    Frequently Asked Questions
    More columns means a deeper radiator and more heat from the same size. At 600 x 965mm our 2 column gives 3,686 BTU (92mm deep), the 3 column 4,262 BTU (118mm deep) and the 4 column 5,470 BTU (160mm deep). The 3 column is the usual balance of heat and depth.
    Start with the space. The width sets the pipe centres, so match it to your pipework, and pick a height that clears the windowsill - the 300mm and 400mm heights suit low windows. Then check the BTU in the size table against the heat the room needs, and size up for north facing, draughty or high-ceilinged rooms.
    No. The radiator hangs on the wall brackets supplied. Matching 3 column feet in white or black are an optional extra for the floor standing look - they are decorative and do not carry any weight.
    On this range the pipe centres are the same as the width: 425, 605, 830, 965, 1190 or 1370mm. Measure centre to centre across your current pipes, and add 90mm to the pipe centre figure when fitting new valves.
    Every radiator turns the heat in the water into heat in the room, so no style is more efficient than another at that. What a column radiator does well is give plenty of heat from a small area of wall, and the extra steel and water mean it cools down more gradually than a thin panel radiator. Running costs come down to your boiler or heat pump and how you control it.
    Yes - it works on any wet central heating system, including a heat pump. The outputs on this page are at Delta T50, typical of a boiler. A heat pump runs cooler, and at Delta T30 any radiator gives out roughly half its Delta T50 figure, so size up and ask your installer for the heat loss of the room.
    No - it is mild steel made in the traditional column shape, so it has the cast iron look at a fraction of the weight. A 600 x 965mm 3 column weighs 34.41kg empty.
    The radiator, wall brackets, a fixing kit and instructions. Valves are not included and are sold separately. Matching feet are an optional extra in the options above.
