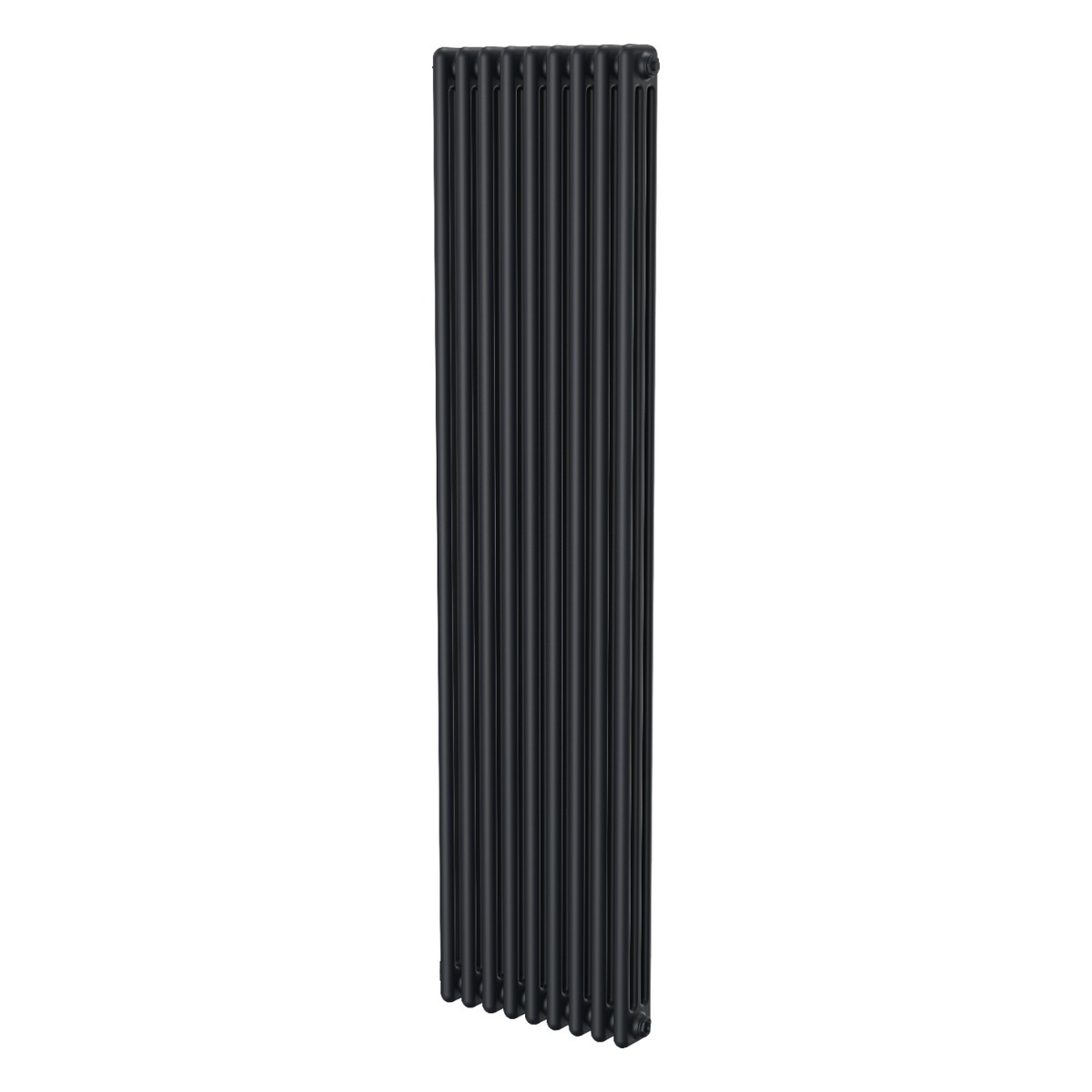

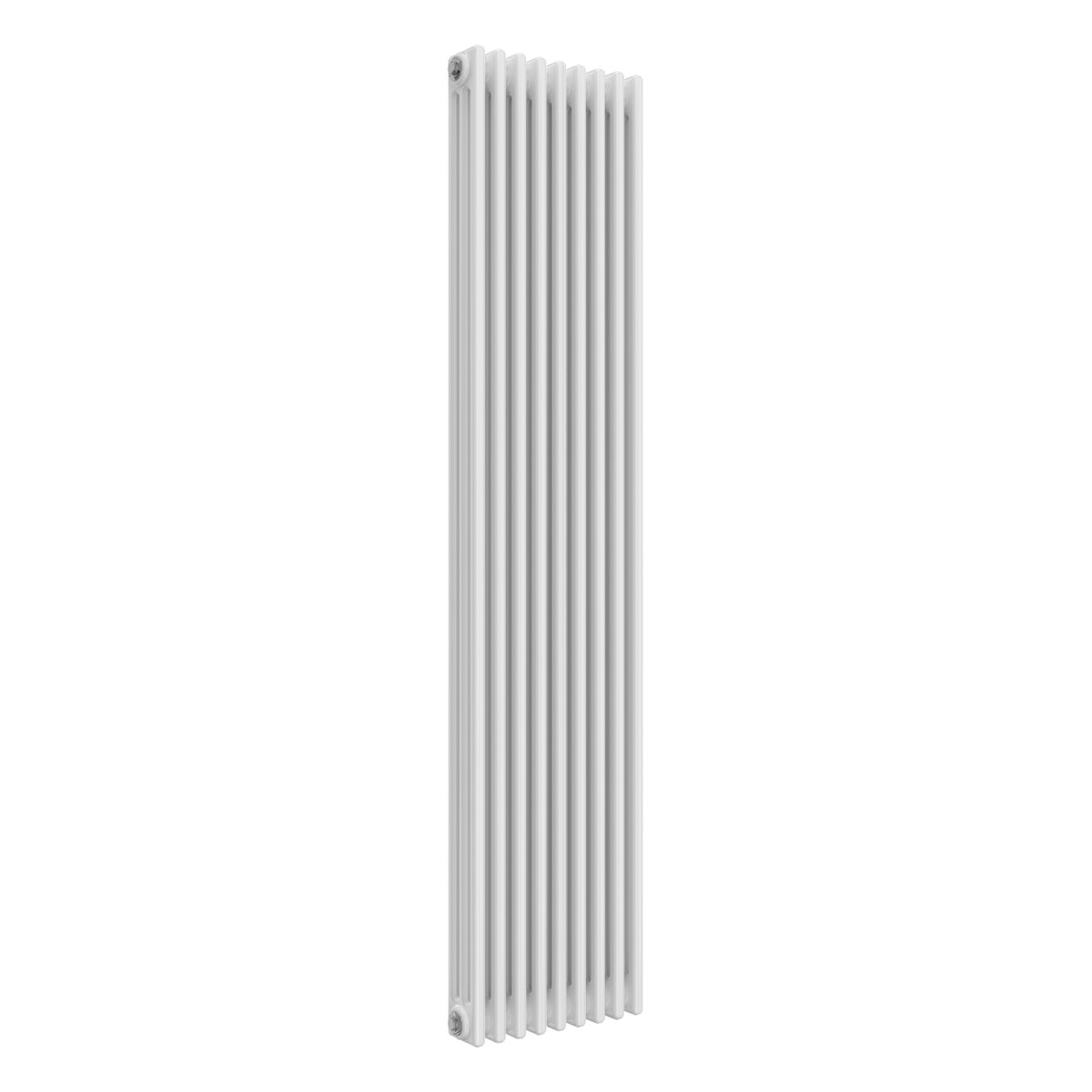

3 Column Vertical Radiator in White or Black - 1800mm Tall
A tall triple column radiator: more heat than a 2 column from the same narrow strip of wall, 118mm deep with the look of traditional cast iron. Choose your colour and width above - every size shows its BTU, watts and pipe centres before you buy.
WhiteBlack3 ColumnVertical118mm Deep5 Year GuaranteeFree UK Delivery
Up to 5,176
BTU dT50
1800
Height (mm)
245-425
Width (mm)
118mm
Projection
2
Colours
5yr
Guarantee
Overview
The 3 column vertical radiator gives the most heat from the least wall width in the range. It is 1800mm tall in three widths, 245, 335 and 425mm, and the 1800 x 425mm gives 5,176 BTU - enough for a large room from a strip of wall under half a metre wide. It stands 118mm off the wall.
Every DUSC Columns radiator is made from mild steel with a hard-wearing white or black powder coat and carries a 5 year guarantee. You get the look of a tall cast iron column radiator at a fraction of the weight, and because the pipe centres match the width, it lines up easily with the pipework.

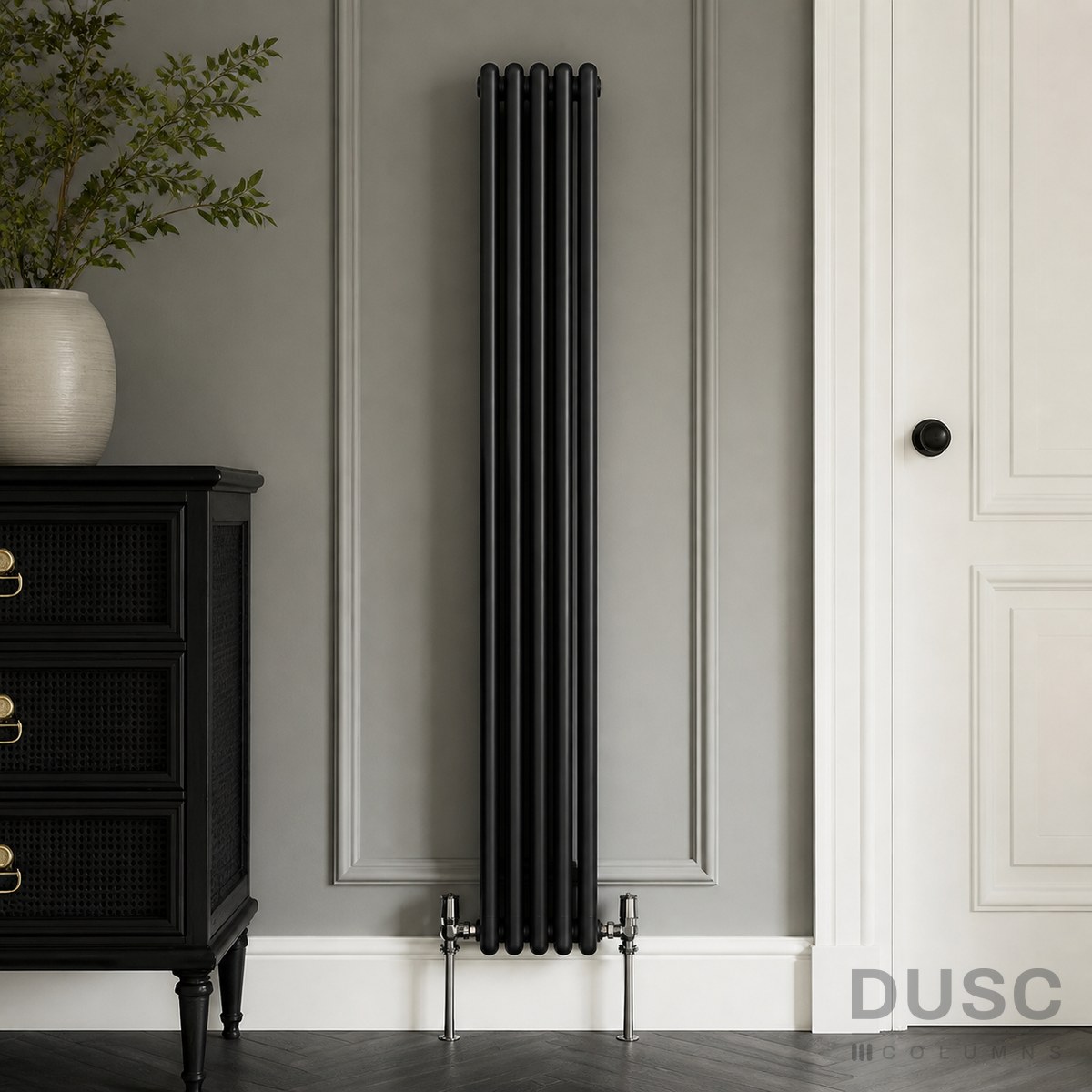

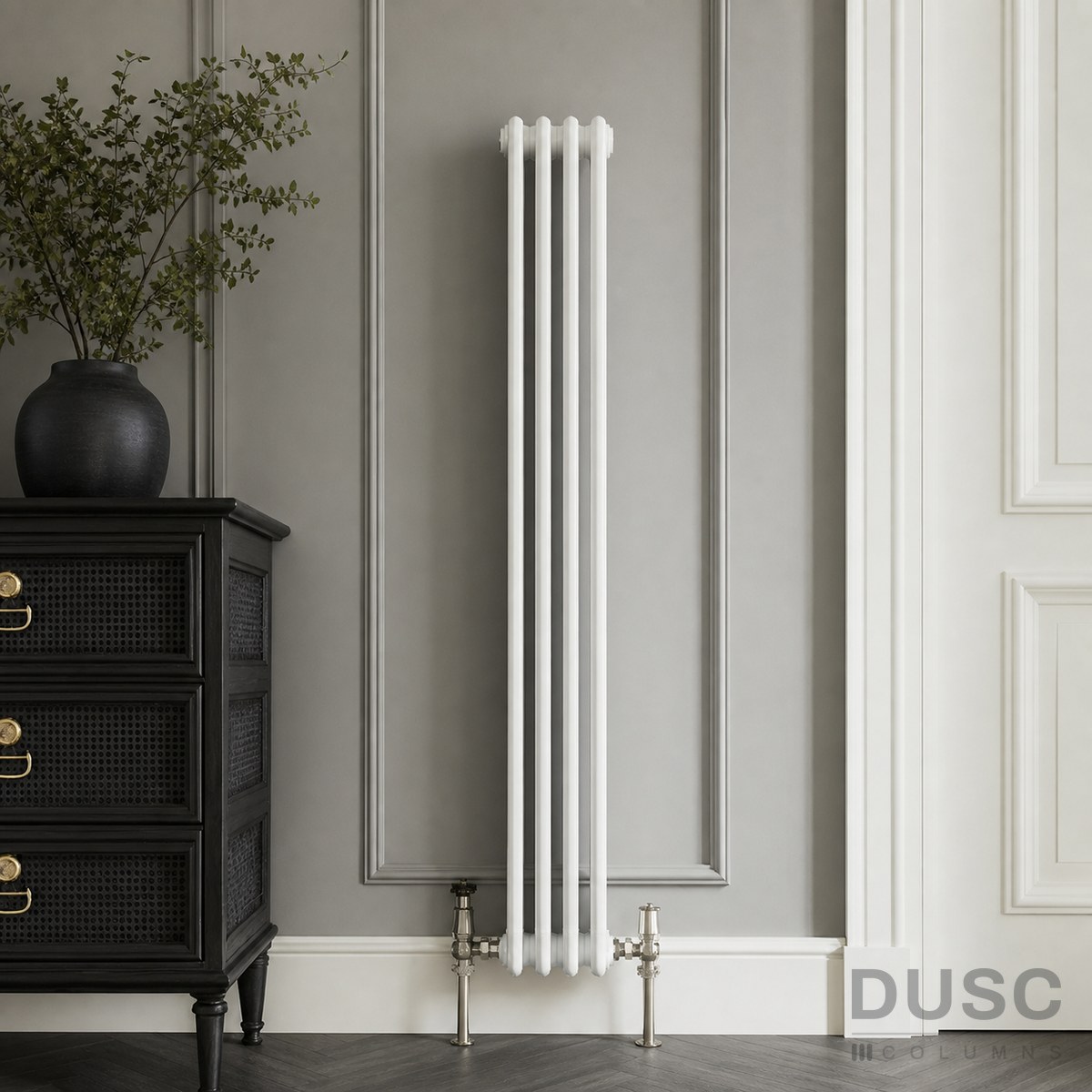

Room photography shows the range style - section count varies by size, so check the size table for the exact model.
Sizes & BTU
Heat output for every size at Delta T50. On this range the pipe centres are the same as the width. Choose your colour and width above and the price, BTU and watts update to match.
Each size also has its own page - click the colour to see it.
Specifications
Range
DUSC Columns
Type
3 column radiator (vertical)
Colours
White or black powder coat
Heights
1800mm
Widths
245mm, 335mm, 425mm
Projection from wall
118mm
Wall to pipe centres
68mm
Heat output (Delta T50)
2,875 to 5,176 BTU (843 to 1,518 watts)
Pipe centres
Same as the width
Valve position
At the foot of each end column
Material
Mild steel
Weight (empty)
25.02 to 43.54kg depending on size
Guarantee
5 years
In the box
Radiator, wall brackets, fixing kit, instructions
Valves
Not included - sold separately
Mounting
Wall mounted on the brackets supplied - no feet
Fitting
Replacing an existing radiator? On this range the pipe centres are the same as the width - a 335mm wide radiator has 335mm pipe centres. Pick the width that matches your current pipework and it drops straight on, with no re-piping.
Fitting is a routine job for any plumber or a confident DIY installer.
Connects to a standard UK two-pipe central heating system.
Valves fit at the foot of each end column. Add 90mm to the pipe centre measurement when fitting with valves.
Brackets hold the radiator 118mm off the wall, with the pipes 68mm out - allow for that when planning skirting or furniture.
It is heavier full of water: fix into masonry or studwork, and use fixings rated for the filled weight on plasterboard.
Flush the system and dose inhibitor after fitting, as with any steel radiator.
Mounting & Valves
This is a wall mounted vertical radiator and does not take floor feet. It fixes on the brackets supplied.
The wall fixings carry the full filled weight. Allow for the water on top of the empty weight in the specification, and use fixings rated accordingly - especially on plasterboard or stud walls.
Traditional cross-head valves complete the period look.
A thermostatic valve holds a room at a set temperature.
Angled, corner and straight valves all suit this radiator - choose by where your pipes come out of the wall or floor.
Delivery & Returns
Orders are picked from UK stock and sent out carefully packed.
FREE UK mainland delivery on this radiator - typically 3 to 5 working days.
Check the radiator on arrival and report any transit damage straight away.
30 day returns on unused radiators in original packaging.
Questions on access or timed delivery? Call us on 01282 429061.
Frequently Asked Questions
Depth and heat. At 1800 x 425mm our 2 column vertical gives 3,806 BTU and stands 92mm off the wall; the 3 column gives 5,176 BTU and stands 118mm off the wall. Choose 3 column when you need more heat from the same width.
Yes - heat output depends on the size and the number of columns, not which way up the radiator stands. The 1800 x 425mm 3 column vertical gives 5,176 BTU from under half a metre of wall width.
No. This is a wall mounted radiator and it hangs on the brackets supplied. Fix into masonry or studwork and use fixings rated for the filled weight, especially on plasterboard.
On this range the pipe centres are the same as the width: 245, 335 or 425mm, with the valves at the foot of each end column. Add 90mm to the pipe centre figure when fitting new valves.
Yes - it works on any wet central heating system, including a heat pump. The outputs on this page are at Delta T50, typical of a boiler. At Delta T30 any radiator gives out roughly half its Delta T50 figure, so size up and ask your installer for the heat loss of the room.
The radiator, wall brackets, a fixing kit and instructions. Valves are not included and are sold separately.
