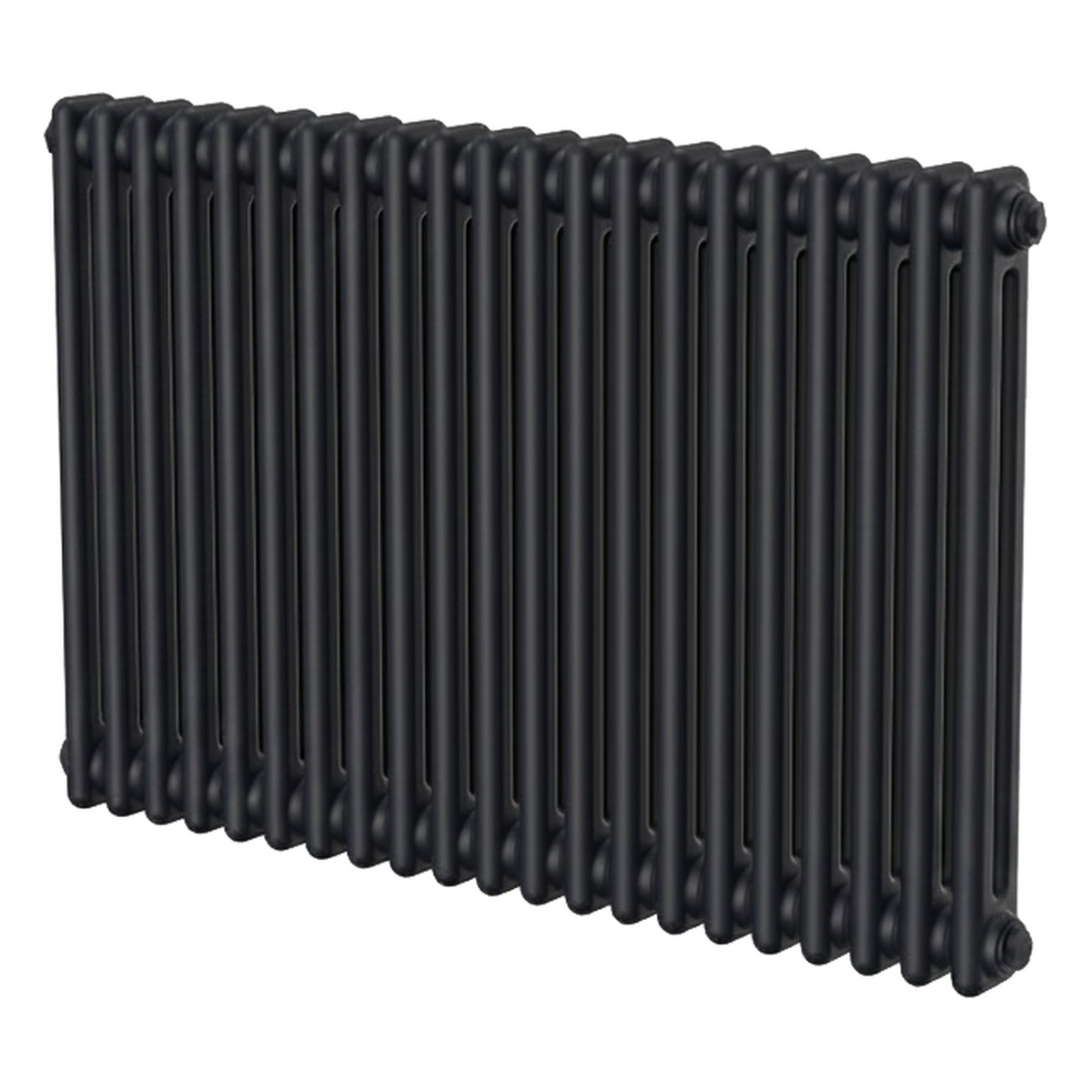

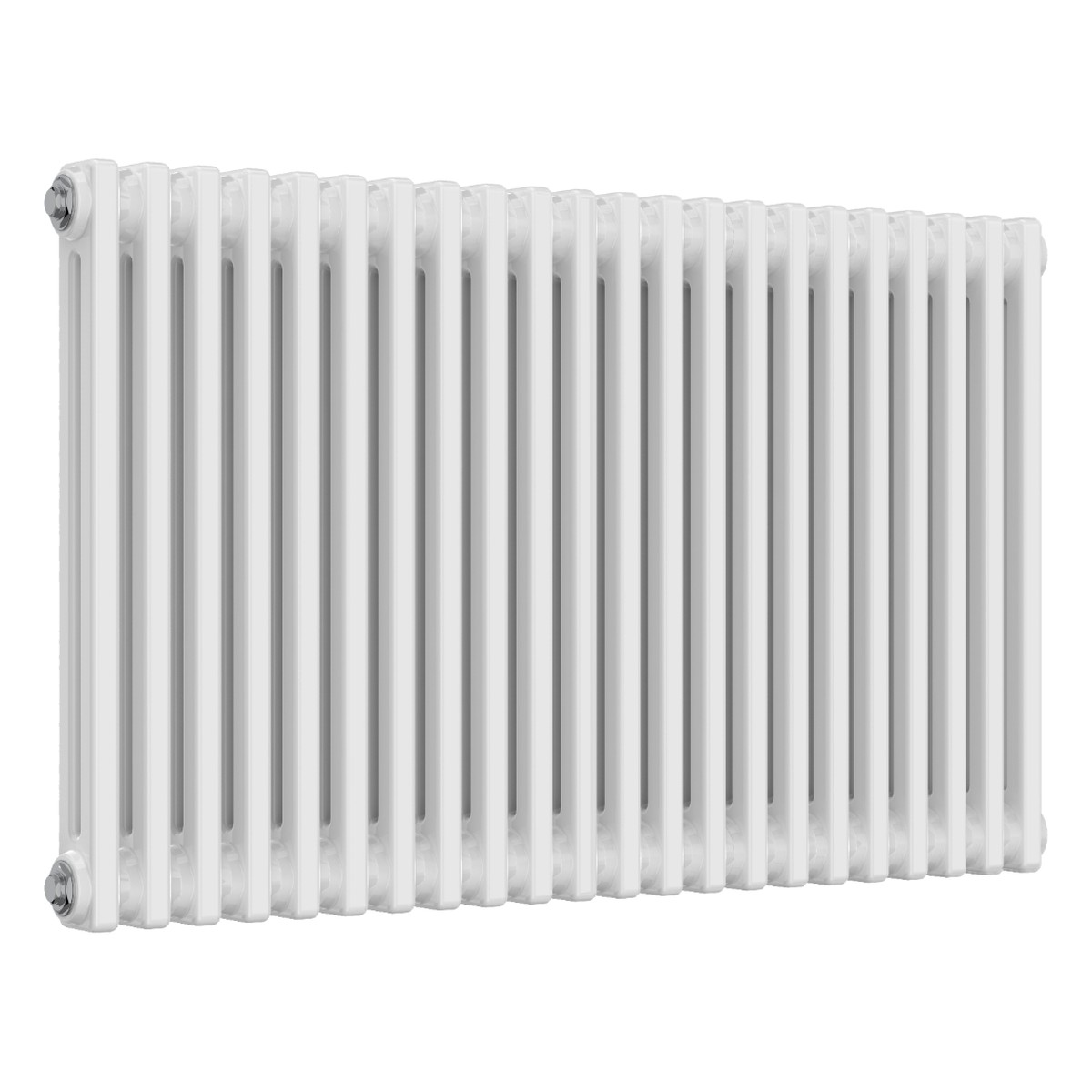

2 Column Radiator in White or Black - Choose Your Exact Size
The classic double column radiator in mild steel with the look of traditional cast iron. Choose your colour, height and width above - every size shows its BTU, watts and pipe centres before you buy.
WhiteBlack2 ColumnHorizontal92mm DeepMatching Feet Available5 Year GuaranteeFree UK Delivery
Up to 3,839
BTU dT50
500-600
Height (mm)
425-1190
Width (mm)
92mm
Projection
2
Colours
5yr
Guarantee
Overview
A 2 column radiator is the slimmest of the traditional column styles: two rows of steel columns, just 92mm off the wall, so it suits hallways, bedrooms and any room where a deeper radiator would stick out too far. This double column radiator comes in white in 10 sizes and in black in 5 sizes, from a compact 500 x 425mm up to 600 x 1190mm and 3,839 BTU.
Every DUSC Columns radiator is made from mild steel with a hard-wearing powder coat finish and carries a 5 year guarantee. You get the look of a cast iron column radiator at a fraction of the weight, and because the pipe centres match the width, it lines up easily with existing pipework.

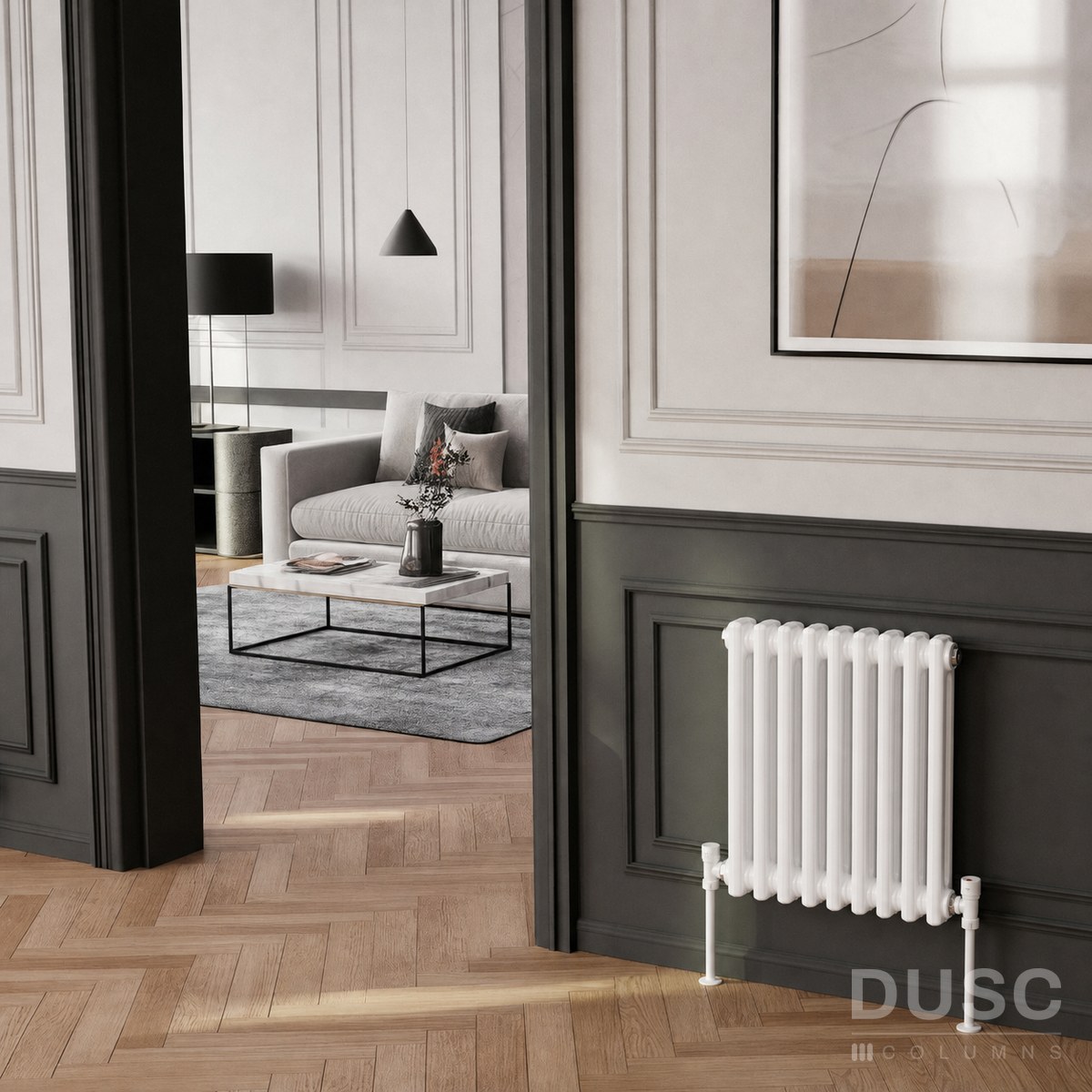

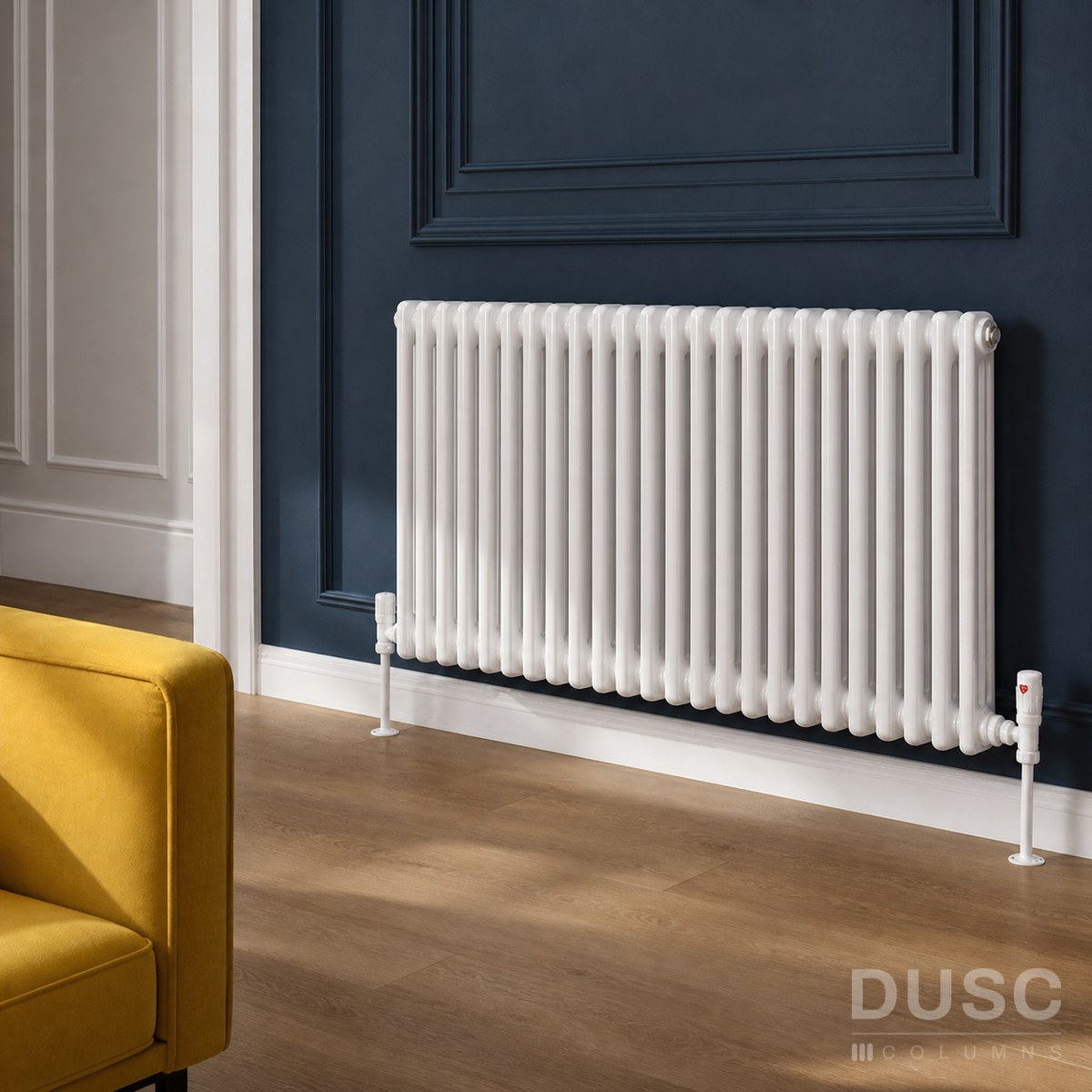

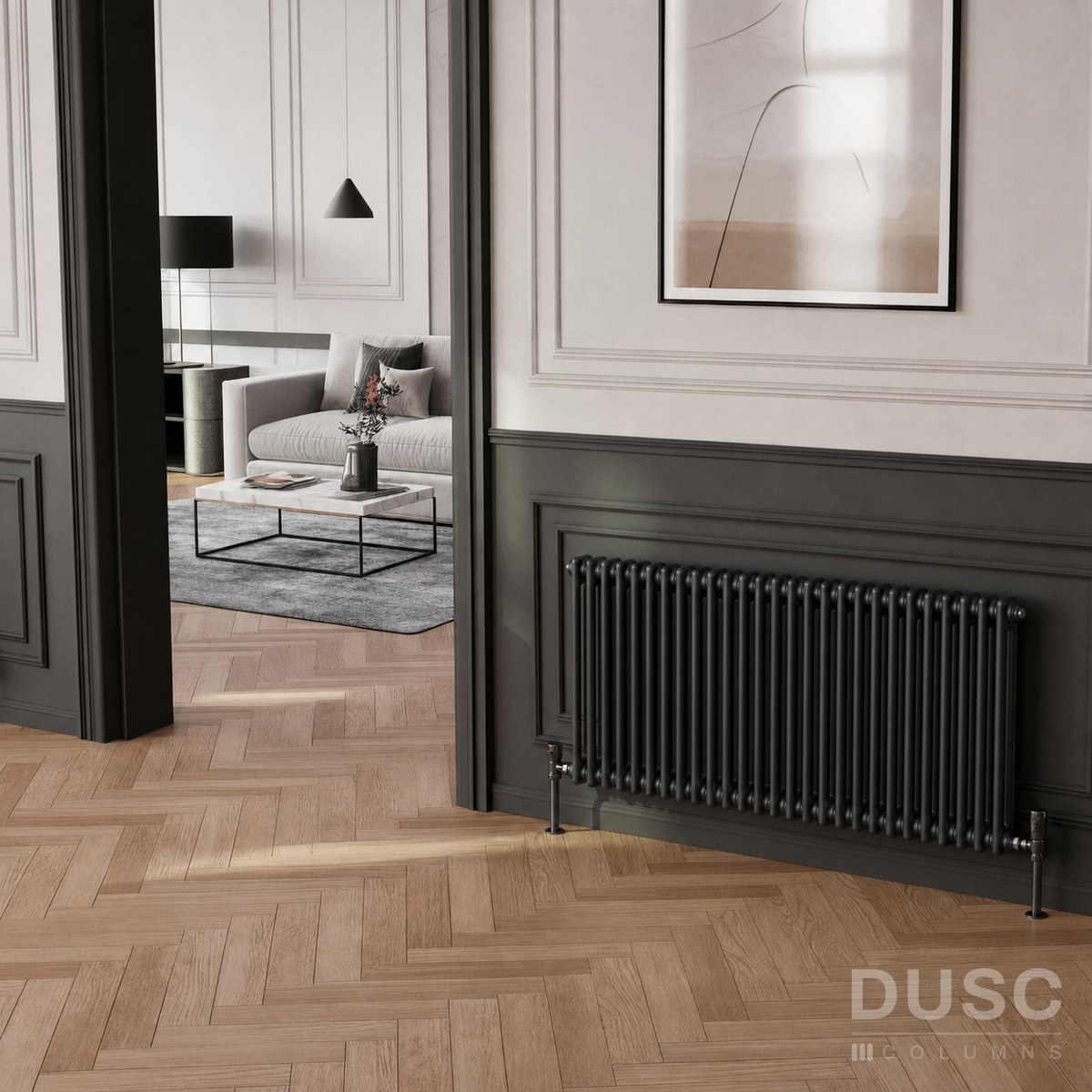

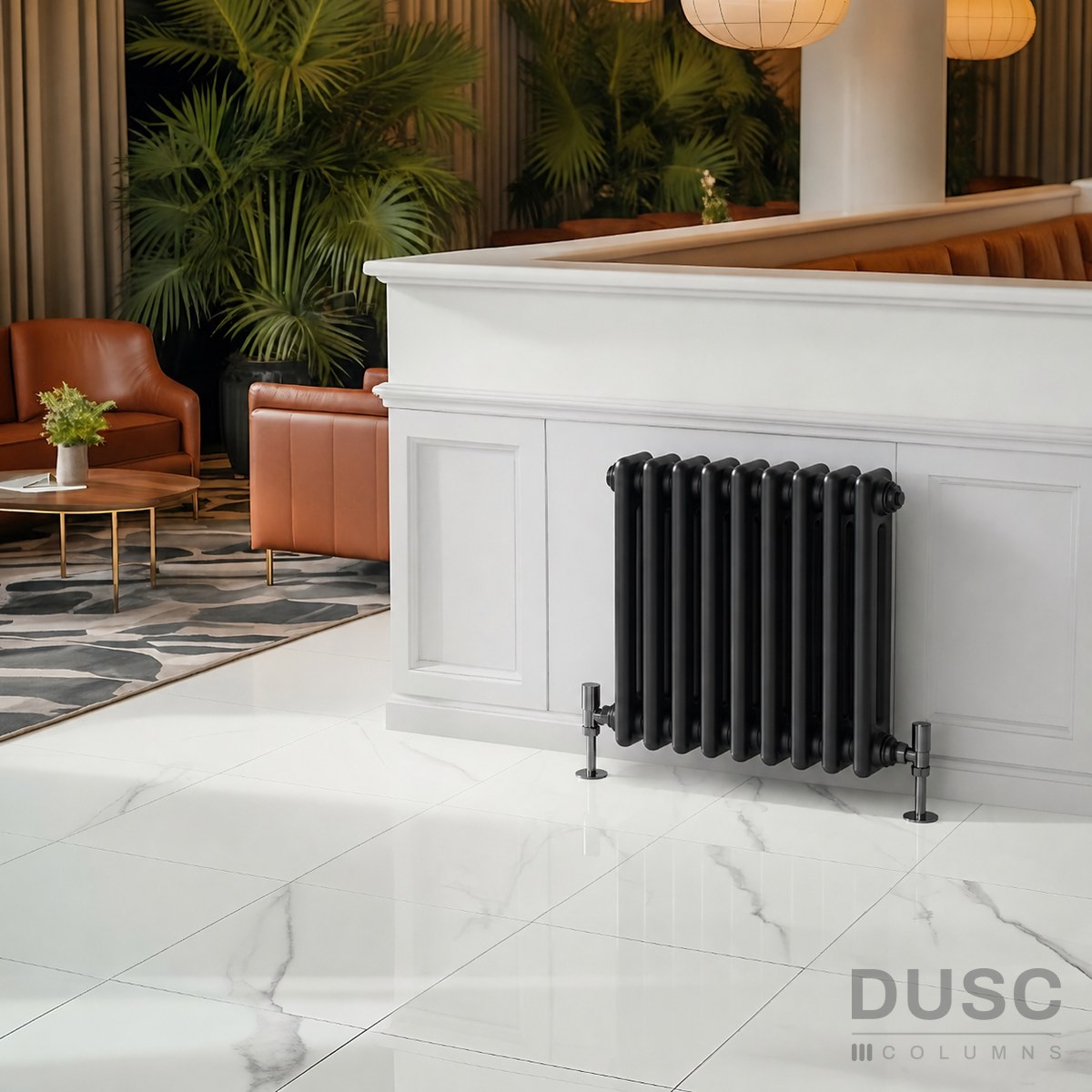

Room photography shows the range style - section count varies by size, so check the size table for the exact model.
Sizes & BTU
Heat output for every size at Delta T50. On this range the pipe centres are the same as the width. Choose your colour, height and width above and the price, BTU and watts update to match.
Black is made in the 600mm height, in all five widths.
Each size also has its own page - click the colour to see it.
Specifications
Range
DUSC Columns
Type
2 column radiator (horizontal)
Colours
White or black powder coat
Heights
500mm, 600mm
Widths
425mm, 605mm, 830mm, 965mm, 1190mm
Projection from wall
92mm
Wall to pipe centres
68mm
Heat output (Delta T50)
1,126 to 3,839 BTU (330 to 1,126 watts)
Pipe centres
Same as the width
Valve position
Bottom, at opposite ends
Material
Mild steel
Weight (empty)
9.82 to 30.70kg depending on size
Guarantee
5 years
In the box
Radiator, wall brackets, fixing kit, instructions
Valves
Not included - sold separately
Feet
Optional matching feet, 140mm high - decorative, not load bearing
Fitting
Replacing an existing radiator? On this range the pipe centres are the same as the width - a 830mm wide radiator has 830mm pipe centres. Pick the width that matches your current pipework and it drops straight on, with no re-piping.
Fitting is a routine job for any plumber or a confident DIY installer.
Connects to a standard UK two-pipe central heating system.
Valves fit at the bottom, at opposite ends. Add 90mm to the pipe centre measurement when fitting with valves.
Brackets hold the radiator 92mm off the wall, with the pipes 68mm out - allow for that when planning skirting or furniture.
It is heavier full of water: fix into masonry or studwork, and use fixings rated for the filled weight on plasterboard.
Flush the system and dose inhibitor after fitting, as with any steel radiator.
Feet & Valves
Matching 2 column feet are available in white or black, supplied as a pair and finished to match. They stand 140mm high and give the radiator the look of a traditional floor standing cast iron column radiator. Choose them in the Matching Feet option above - pick the colour that matches your radiator.
The feet are decorative and are not load bearing. The radiator must still be fixed to the wall using the brackets supplied - the wall fixings carry the full weight of the radiator when it is filled with water.
Traditional cross-head valves complete the period look.
A thermostatic valve holds a room at a set temperature.
Angled, corner and straight valves all suit this radiator - choose by where your pipes come out of the wall or floor.
Delivery & Returns
Orders are picked from UK stock and sent out carefully packed.
FREE UK mainland delivery on this radiator - typically 3 to 5 working days.
Check the radiator on arrival and report any transit damage straight away.
30 day returns on unused radiators in original packaging.
Questions on access or timed delivery? Call us on 01282 429061.
Frequently Asked Questions
The number of columns sets the depth and the heat output. A 2 column radiator is 92mm deep; a 3 column radiator is 118mm deep and gives more heat from the same size. At 600 x 965mm our 2 column gives 3,686 BTU and our 3 column gives 4,262 BTU. Choose 2 column where space in front of the wall is tight, and 3 or 4 column where you need more heat.
Start with the space. The width sets the pipe centres, so match it to your pipework, and choose 500 or 600mm high to clear the windowsill. Then check the BTU in the size table against the heat the room needs - size up for north facing, draughty or high-ceilinged rooms.
No. The radiator hangs on the wall brackets supplied. Matching feet are an optional extra for the floor standing look - they are decorative and do not carry any weight.
On this range the pipe centres are the same as the width: 425, 605, 830, 965 or 1190mm. Measure centre to centre across your current pipes, and add 90mm to the pipe centre figure when fitting new valves.
Every radiator turns the heat in the water into heat in the room, so no style is more efficient than another at that. What a column radiator does well is give plenty of heat from a small area of wall, and the extra steel and water mean it cools down more gradually than a thin panel radiator. Running costs come down to your boiler or heat pump and how you control it.
Yes - it works on any wet central heating system, including a heat pump. The outputs on this page are at Delta T50, typical of a boiler. A heat pump runs cooler, and at Delta T30 any radiator gives out roughly half its Delta T50 figure, so size up and ask your installer for the heat loss of the room.
The radiator, wall brackets, a fixing kit and instructions. Valves are not included and are sold separately. Matching feet are an optional extra in the options above.
