6 Column Radiator in White - Maximum Heat, 14 Exact Sizes
The deepest radiator in the range: six columns of mild steel, 243mm deep, for the most heat from the least wall. Choose your height and width above - every size shows its BTU, watts and pipe centres before you buy.
White6 ColumnHorizontal243mm DeepMatching Feet Available5 Year GuaranteeFree UK Delivery
Up to 9,589
BTU dT50
300-600
Height (mm)
605-1190
Width (mm)
243mm
Projection
1
Colour
5yr
Guarantee
Overview
The 6 column radiator is the high output end of the column range. Six rows of columns and 243mm of depth put far more steel on the wall than a standard radiator, so a low one can heat a big room: the 300 x 1190mm gives 4,992 BTU, and the 600 x 1190mm gives 9,589 BTU. It comes in white in 14 sizes, 300 to 600mm high and 605 to 1190mm wide.
Every DUSC Columns radiator is made from mild steel with a hard-wearing white powder coat and carries a 5 year guarantee. Allow for the depth - it stands 243mm off the wall - and because the pipe centres match the width, it lines up easily with existing pipework.

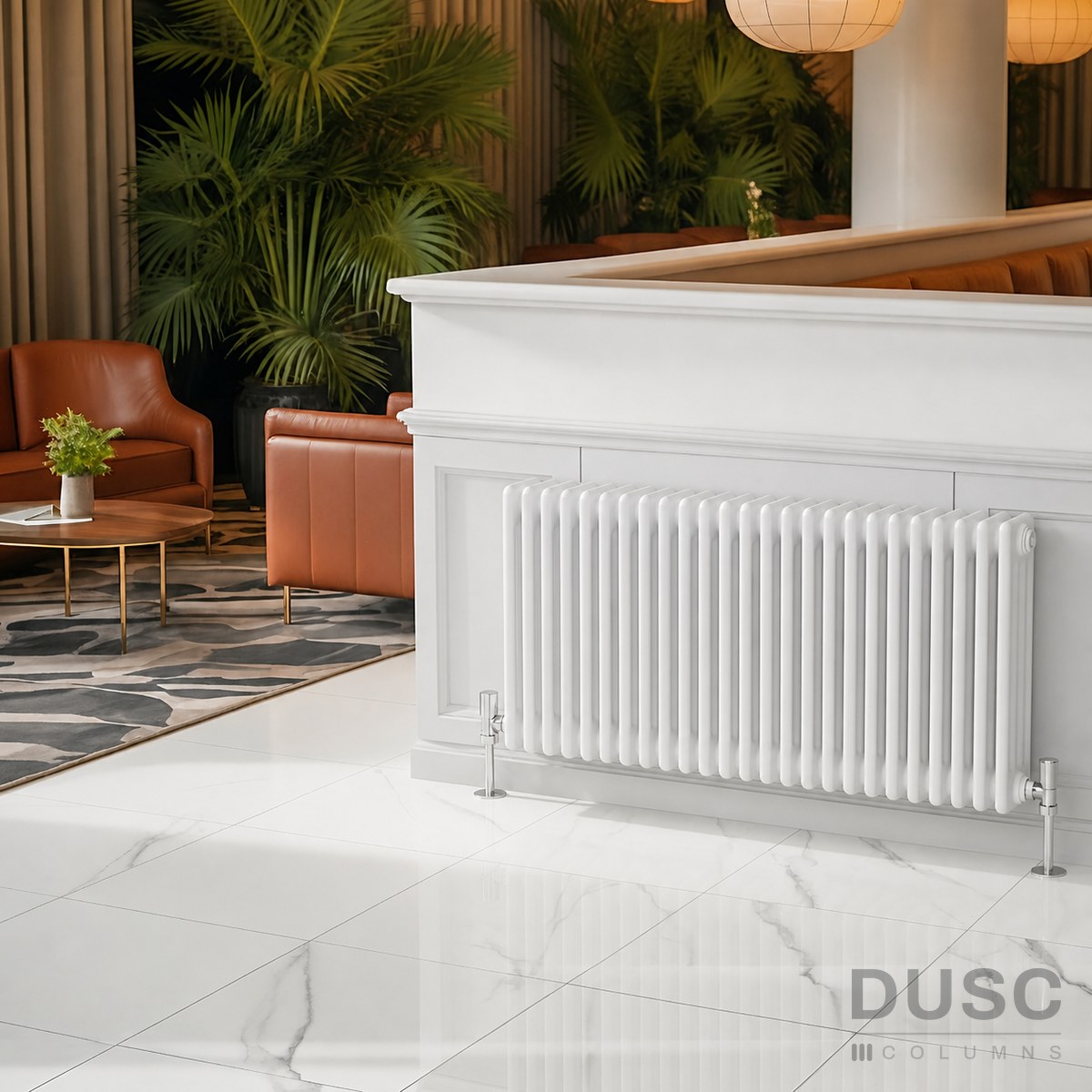

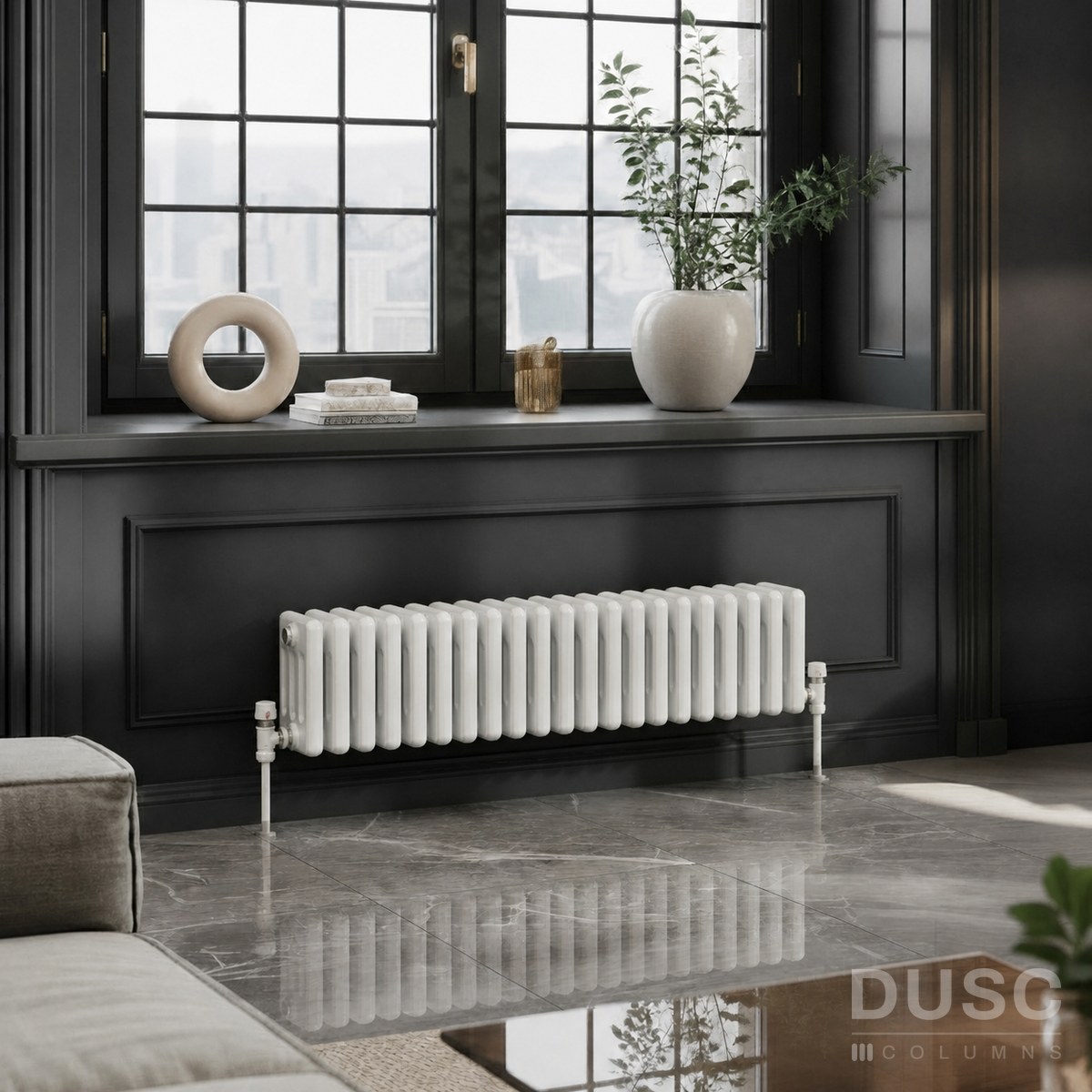

Room photography shows the range style - section count varies by size, so check the size table for the exact model.
Sizes & BTU
Heat output for every size at Delta T50. On this range the pipe centres are the same as the width. Choose your height and width above and the price, BTU and watts update to match.
Each size also has its own page - click the colour to see it.
Specifications
Range
DUSC Columns
Type
6 column radiator (horizontal)
Colours
White powder coat
Heights
300mm, 400mm, 500mm, 600mm
Widths
605mm, 830mm, 965mm, 1190mm
Projection from wall
243mm
Wall to pipe centres
133mm
Heat output (Delta T50)
3,587 to 9,589 BTU (1,052 to 2,812 watts)
Pipe centres
Same as the width
Valve position
Bottom, at opposite ends
Material
Mild steel
Weight (empty)
35.59 to 82.93kg depending on size
Guarantee
5 years
In the box
Radiator, wall brackets, fixing kit, instructions
Valves
Not included - sold separately
Feet
Optional matching feet, 140mm high - decorative, not load bearing
Fitting
Replacing an existing radiator? On this range the pipe centres are the same as the width - a 965mm wide radiator has 965mm pipe centres. Pick the width that matches your current pipework and it drops straight on, with no re-piping.
Fitting is a routine job for any plumber or a confident DIY installer.
Connects to a standard UK two-pipe central heating system.
Valves fit at the bottom, at opposite ends. Add 90mm to the pipe centre measurement when fitting with valves.
Brackets hold the radiator 243mm off the wall, with the pipes 133mm out - allow for that when planning skirting or furniture.
It is heavier full of water: fix into masonry or studwork, and use fixings rated for the filled weight on plasterboard.
Flush the system and dose inhibitor after fitting, as with any steel radiator.
Feet & Valves
Matching 6 column feet are available in white, supplied as a pair and finished to match. They stand 140mm high and give the radiator the look of a traditional floor standing cast iron column radiator. Choose them in the Matching Feet option above.
The feet are decorative and are not load bearing. The radiator must still be fixed to the wall using the brackets supplied - the wall fixings carry the full weight of the radiator when it is filled with water.
Traditional cross-head valves complete the period look.
A thermostatic valve holds a room at a set temperature.
Angled, corner and straight valves all suit this radiator - choose by where your pipes come out of the wall or floor.
Delivery & Returns
Orders are picked from UK stock and sent out carefully packed.
FREE UK mainland delivery on this radiator - typically 3 to 5 working days.
Check the radiator on arrival and report any transit damage straight away.
30 day returns on unused radiators in original packaging.
Questions on access or timed delivery? Call us on 01282 429061.
Frequently Asked Questions
For heat. Six columns give far more output than a 3 column of the same height and width - at 600 x 965mm our 6 column gives 7,928 BTU against 4,262 BTU for the 3 column. That lets a low radiator under a window heat a large room.
243mm, with the pipes 133mm out from the wall. Check there is room in front of it, particularly in hallways and beside doors.
No. The radiator hangs on the wall brackets supplied. Matching 6 column feet are an optional extra for the floor standing look - they are decorative and do not carry any weight.
On this range the pipe centres are the same as the width: 605, 830, 965 or 1190mm. Measure centre to centre across your current pipes, and add 90mm to the pipe centre figure when fitting new valves.
Yes - and high output radiators are a good match for heat pumps, because they give more heat at the lower water temperatures a heat pump runs at. The outputs on this page are at Delta T50; at Delta T30 any radiator gives out roughly half its Delta T50 figure, so ask your installer for the heat loss of the room.
The radiator, wall brackets, a fixing kit and instructions. Valves are not included and are sold separately. Matching feet are an optional extra in the options above.
