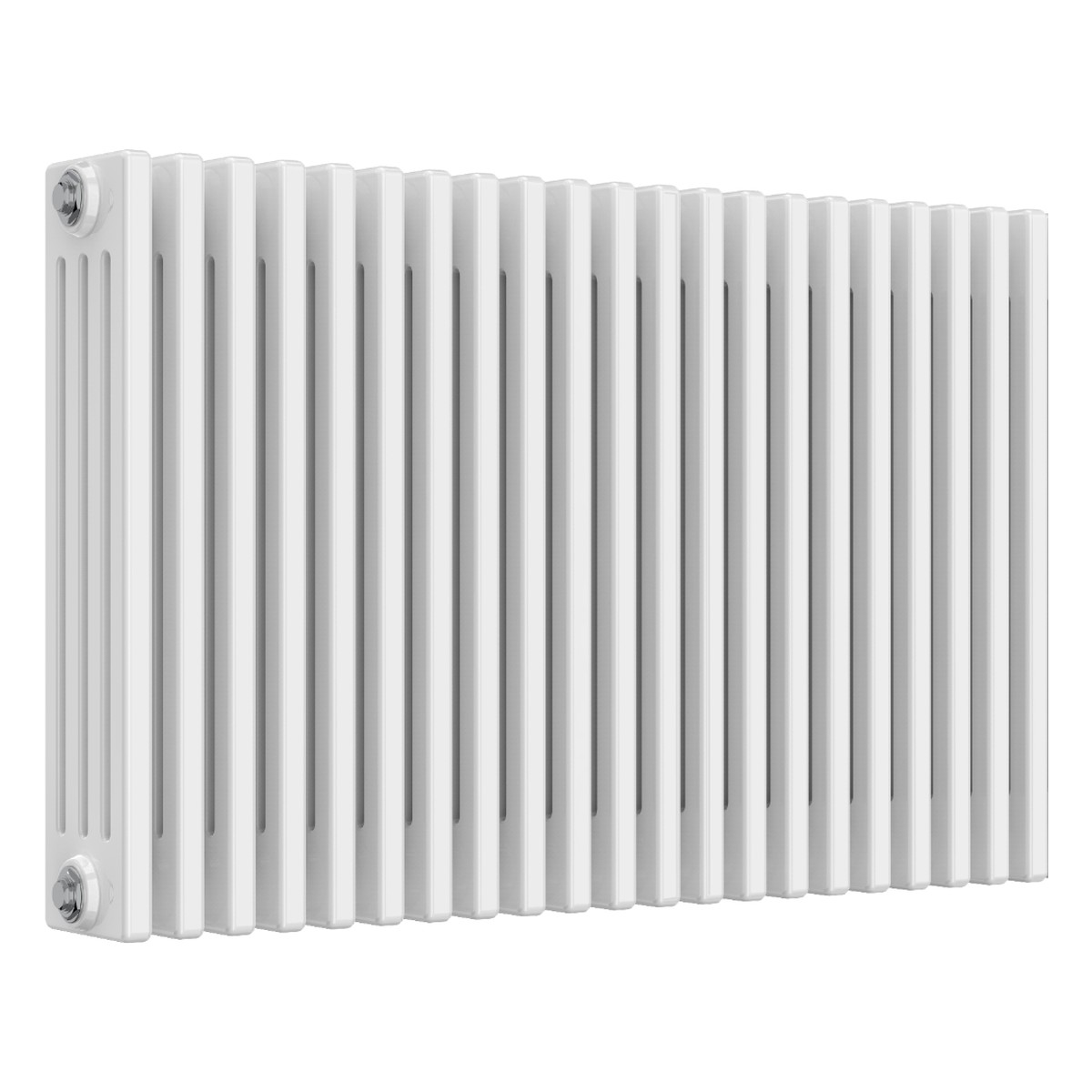

    4 Column Radiator - Horizontal Four Column Radiator in White

    In stock
    SKU
    DUSC-COL-4H
    As low as £137.00
    Add to Wish List Add to Compare

    Need Help?

    Call an heating expert on 01282 429061

    Key Features

    More Information
    Width 1040 mm
    Manufacturer DUSC

    Product Details

    DUSC Columns

    4 Column Radiator in White - 27 Exact Sizes

    Four columns of mild steel for more heat from the same wall space, 160mm deep with the look of traditional cast iron. Choose your height and width above - every size shows its BTU, watts and pipe centres before you buy.
    White4 ColumnHorizontal160mm DeepMatching Feet Available5 Year GuaranteeFree UK Delivery
    Up to 9,766
    BTU dT50
    300-750
    Height (mm)
    425-1370
    Width (mm)
    160mm
    Projection
    1
    Colour
    5yr
    Guarantee
    Overview

    A 4 column radiator packs more steel into the same wall space, so it gives noticeably more heat than a 2 or 3 column of the same height and width. That makes it the one for big living rooms, open plan spaces and high ceilings, or anywhere wall space is short. This four column radiator comes in white in 27 sizes, from 300mm high for under a low window up to 750mm high, with outputs from 1,583 to 9,766 BTU.

    Every DUSC Columns radiator is made from mild steel with a hard-wearing white powder coat and carries a 5 year guarantee. It stands 160mm off the wall, and because the pipe centres match the width, it lines up easily with existing pipework.

    Less depth to play with? See the 3 column radiator (118mm deep). Need even more heat? See the high output 6 column radiator, or browse all column radiators and white radiators.

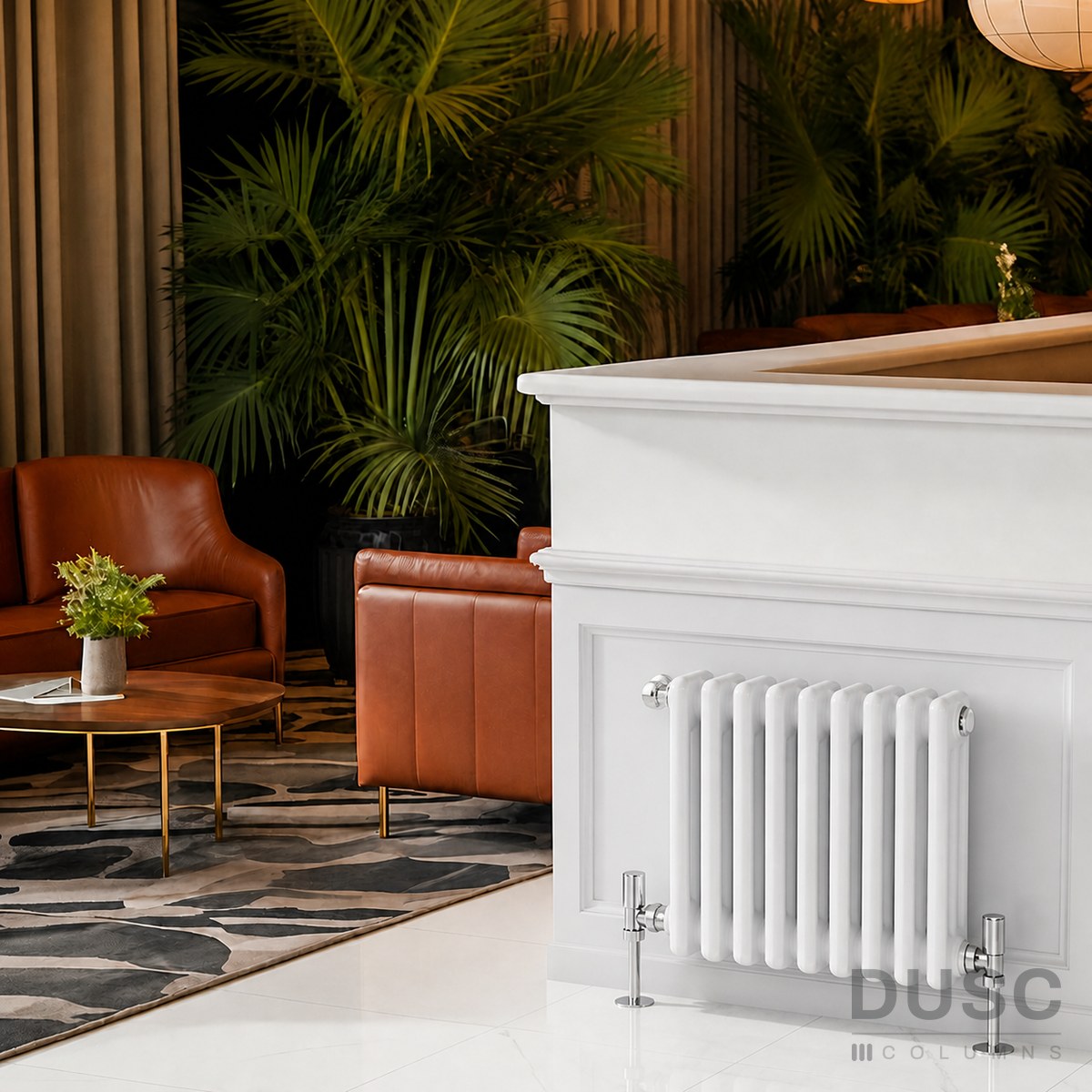

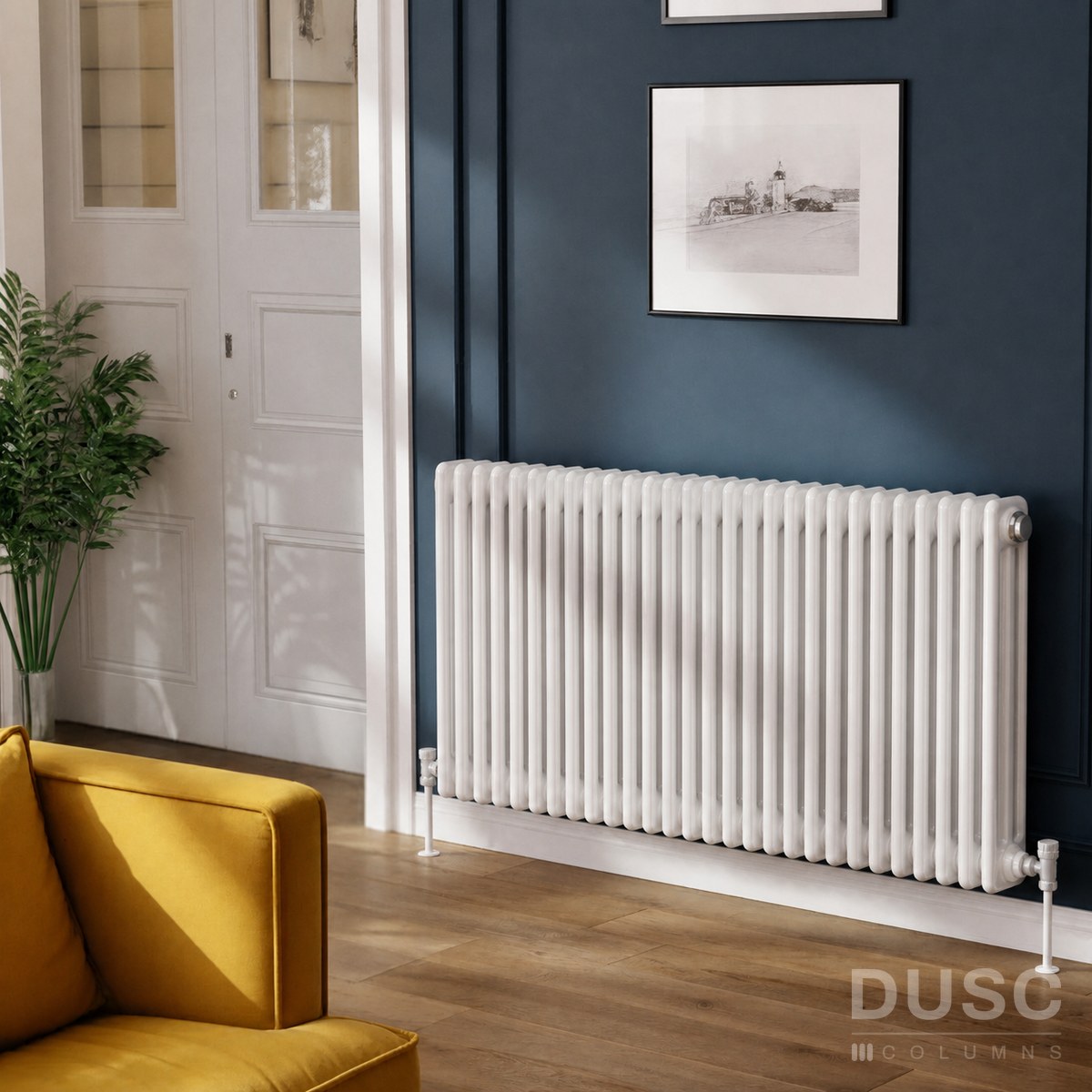

    Room photography shows the range style - section count varies by size, so check the size table for the exact model.

    Sizes & BTU

    Heat output for every size at Delta T50. On this range the pipe centres are the same as the width. Choose your height and width above and the price, BTU and watts update to match.

    Height x widthSectionsBTU (Delta T50)WattsPipe centresColours
    300 x 830mm182,435714830mmWhite
    300 x 965mm212,841833965mmWhite
    300 x 1190mm263,5171,0311190mmWhite
    300 x 1370mm304,0591,1911370mmWhite
    400 x 425mm91,583464425mmWhite
    400 x 605mm132,052670605mmWhite
    400 x 830mm183,166928830mmWhite
    400 x 965mm213,6931,083965mmWhite
    400 x 1190mm264,5731,3411190mmWhite
    400 x 1370mm305,2771,5481370mmWhite
    500 x 425mm91,979580425mmWhite
    500 x 830mm183,9571,160830mmWhite
    500 x 965mm214,6171,354965mmWhite
    500 x 1190mm265,7161,6761190mmWhite
    500 x 1370mm306,5961,9341370mmWhite
    600 x 425mm92,344688425mmWhite
    600 x 605mm133,386993605mmWhite
    600 x 830mm184,6881,375830mmWhite
    600 x 965mm215,4701,604965mmWhite
    600 x 1190mm266,7721,9861190mmWhite
    600 x 1370mm307,8132,2911370mmWhite
    750 x 425mm92,930859425mmWhite
    750 x 605mm134,2331,241605mmWhite
    750 x 830mm185,8601,719830mmWhite
    750 x 965mm216,8372,005965mmWhite
    750 x 1190mm268,4652,4821190mmWhite
    750 x 1370mm309,7662,8641370mmWhite

    Each size also has its own page - click the colour to see it.

    Specifications
    RangeDUSC Columns
    Type4 column radiator (horizontal)
    ColoursWhite powder coat
    Heights300mm, 400mm, 500mm, 600mm, 750mm
    Widths425mm, 605mm, 830mm, 965mm, 1190mm, 1370mm
    Projection from wall160mm
    Wall to pipe centres95mm
    Heat output (Delta T50)1,583 to 9,766 BTU (464 to 2,864 watts)
    Pipe centresSame as the width
    Valve positionBottom, at opposite ends
    MaterialMild steel
    Weight (empty)15.45 to 76.69kg depending on size
    Guarantee5 years
    In the boxRadiator, wall brackets, fixing kit, instructions
    ValvesNot included - sold separately
    FeetOptional matching feet, 140mm high - decorative, not load bearing
    Fitting
    Replacing an existing radiator? On this range the pipe centres are the same as the width - a 965mm wide radiator has 965mm pipe centres. Pick the width that matches your current pipework and it drops straight on, with no re-piping.

    Fitting is a routine job for any plumber or a confident DIY installer.

    • Connects to a standard UK two-pipe central heating system.
    • Valves fit at the bottom, at opposite ends. Add 90mm to the pipe centre measurement when fitting with valves.
    • Brackets hold the radiator 160mm off the wall, with the pipes 95mm out - allow for that when planning skirting or furniture.
    • It is heavier full of water: fix into masonry or studwork, and use fixings rated for the filled weight on plasterboard.
    • Flush the system and dose inhibitor after fitting, as with any steel radiator.
    Feet & Valves

    Matching 4 column feet are available in white, supplied as a pair and finished to match. They stand 140mm high and give the radiator the look of a traditional floor standing cast iron column radiator. Choose them in the Matching Feet option above.

    The feet are decorative and are not load bearing. The radiator must still be fixed to the wall using the brackets supplied - the wall fixings carry the full weight of the radiator when it is filled with water.

    Valves are not included - you need a pair: one wheelhead or thermostatic valve and one lockshield. Browse our radiator valves and accessories, including thermostatic radiator valves.

    • Traditional cross-head valves complete the period look.
    • A thermostatic valve holds a room at a set temperature.
    • Angled, corner and straight valves all suit this radiator - choose by where your pipes come out of the wall or floor.
    Delivery & Returns

    Orders are picked from UK stock and sent out carefully packed.

    • FREE UK mainland delivery on this radiator - typically 3 to 5 working days.
    • Check the radiator on arrival and report any transit damage straight away.
    • 30 day returns on unused radiators in original packaging.
    • Questions on access or timed delivery? Call us on 01282 429061.
    Frequently Asked Questions
    It gives more heat from the same size but sits further from the wall. At 600 x 965mm our 4 column gives 5,470 BTU against 4,262 BTU for the 3 column, and stands 160mm off the wall instead of 118mm. Choose 4 column when you need the heat and have the depth.
    Start with the space. The width sets the pipe centres, so match it to your pipework, and pick a height that clears the windowsill - 300mm and 400mm suit low windows. Then check the BTU in the size table against the heat the room needs.
    No. The radiator hangs on the wall brackets supplied. Matching 4 column feet are an optional extra for the floor standing look - they are decorative and do not carry any weight.
    On this range the pipe centres are the same as the width: 425, 605, 830, 965, 1190 or 1370mm. Measure centre to centre across your current pipes, and add 90mm to the pipe centre figure when fitting new valves. The pipes sit 95mm out from the wall on this model.
    Yes - it works on any wet central heating system, including a heat pump, and the extra columns help because they give more heat from the same wall space. The outputs on this page are at Delta T50; at Delta T30 any radiator gives out roughly half its Delta T50 figure, so ask your installer for the heat loss of the room.
    The radiator, wall brackets, a fixing kit and instructions. Valves are not included and are sold separately. Matching feet are an optional extra in the options above.
    The exact sizeNot the nearest size - check the table for yours
    Free UK mainland deliveryTypically 3 to 5 working days
    Plumbing trade expertsReal advice from PlumbXtra Burnley
