| Manufacturer Warranty | 5 Years (T&C’s Apply) |
|---|---|
| Orientation | Horizontal Orientation |
| Colour | White |
| Height | 600 mm |
| Width | 1010 mm |
| Heat Output Watts | 1328 |
| Heat Output BTU | 4532 |
| Radiator Pipe Centres (mm) (Plus Valves) | approx. 1010 |
| Radiator Projection (mm) | 98-108 |
| Radiator Wall To Pipe Centres (mm) | 30-40 |
| Manufacturer | Kartell |
| Manufacturer Part No | LK26001010 |
A shade over a metre of white columns for the living room wall: twenty-two sections, 4,532 BTU (1,328W) at Delta T60, and the kind of low horizontal line that makes alcoves look purpose-built. This size carries most average lounges single-handed, without the visual weight of a double-panel convector or the cost of cast iron.
The Laser Klassic construction story is consistent: laser-welded mild steel, gloss white powder coat, 68mm two-column depth, 10 bar pressure test, five year Kartell guarantee, brackets and fixings in the box. All that changes is how much wall you give it.

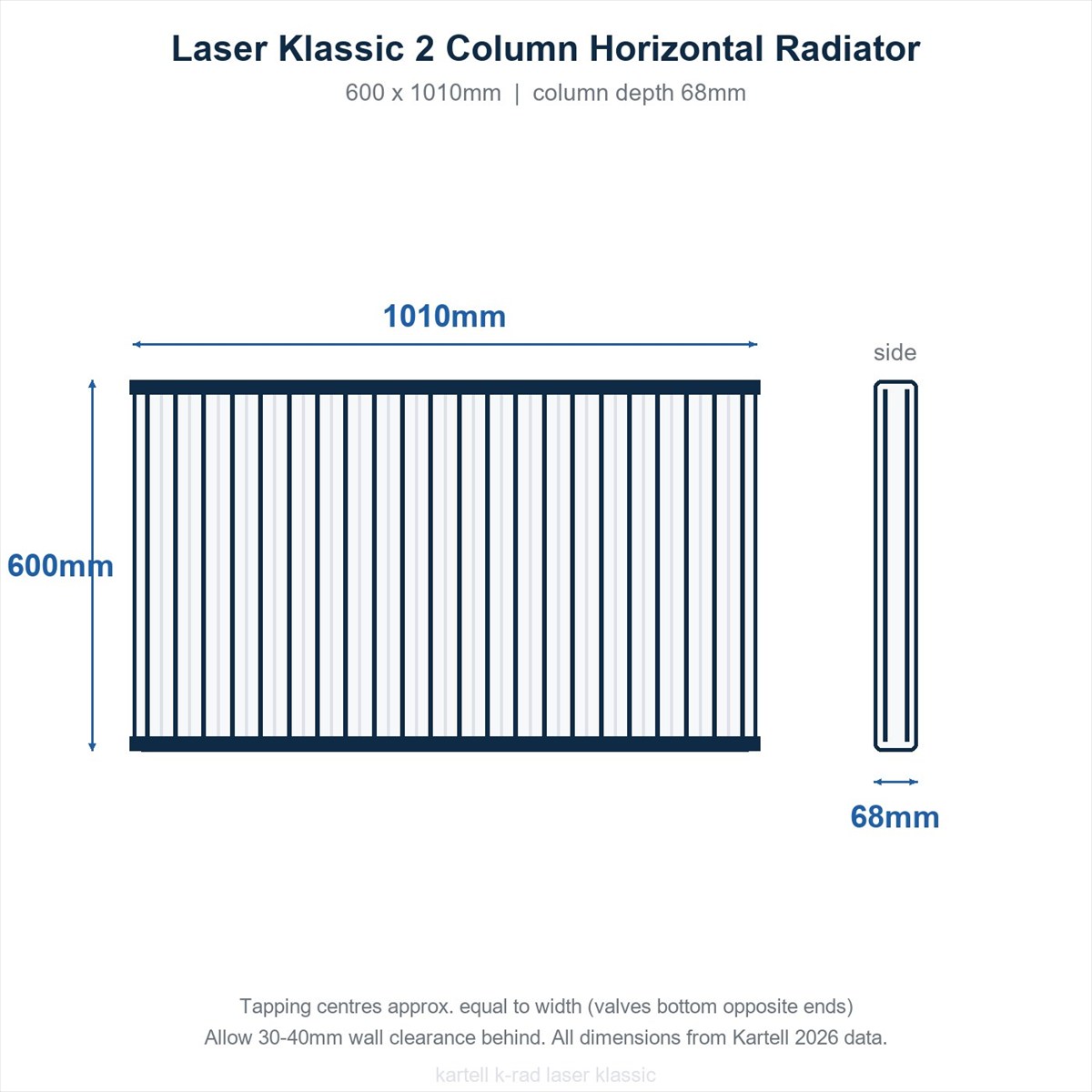

Range photography is for illustration - the number of sections varies with the size ordered. This listing is the 600 x 1010mm 2 column model with 22 sections. Dimension drawing included in the gallery.
A radiator only looks right when it heats right, so check the numbers first.
| Output at Delta T60 (Kartell published) | 4,532 BTU / 1,328W |
|---|---|
| Output at Delta T50 (calculated, EN442 factor) | approx. 3,576 BTU / 1,048W |
| Typical room coverage | roughly 8-11 square metres in an average UK home |
Coverage is a guide only - insulation, glazing area and ceiling height change the sums. Use a BTU calculator with your room dimensions before ordering, and size up slightly for north-facing or draughty rooms.
| Range | Kartell K-Rad Laser Klassic |
|---|---|
| Type | 2 column radiator (horizontal) |
| Height x Width | 600 x 1010mm |
| Column depth | 68mm (allow 98-108mm wall to front face) |
| Sections | 22 |
| Heat output (Delta T60) | 4,532 BTU / 1,328W |
| Heat output (Delta T50, calculated) | approx. 3,576 BTU / 1,048W |
| Finish | Gloss white powder coat over mild steel |
| Material | Laser-welded mild steel |
| Tapping centres | approx. 1010mm - valves at bottom opposite ends |
| Weight (empty) | 24.2kg |
| Pressure tested | 10 bar |
| Guarantee | 5 years (register with Kartell UK) |
| In the box | Radiator, wall brackets, fixing kit, instructions |
| Valves | Not included - sold separately |
Fitting follows standard UK two-pipe practice and holds no surprises for an installer.
Valves are not included. You need a pair: one wheelhead or thermostatic (TRV) valve plus one lockshield. Angled valves suit pipework rising from the floor; straight valves suit wall-fed pipe runs.
See our radiator valves range - the Kartell TRV and lockshield twin packs pair perfectly.
Orders are picked from live UK stock. Radiators are palletised or double-boxed and checked before dispatch - please inspect on arrival and note any transit damage with the driver.
