| Manufacturer Warranty | 5 Years (T&C’s Apply) |
|---|---|
| Orientation | Horizontal Orientation |
| Colour | White |
| Height | 600 mm |
| Width | 650 mm |
| Heat Output Watts | 845 |
| Heat Output BTU | 2884 |
| Radiator Pipe Centres (mm) (Plus Valves) | approx. 650 |
| Radiator Projection (mm) | 98-108 |
| Radiator Wall To Pipe Centres (mm) | 30-40 |
| Manufacturer | Kartell |
| Manufacturer Part No | LK2600650 |
The classic starter column: 600 x 650mm, fourteen white sections, 2,884 BTU (845W) at Delta T60. It slips under window boards, into cloakrooms and alongside back doors - all the places a period look is wanted but space is short. Against original tiles or painted tongue-and-groove it looks like it has always been there.
Gloss white powder coat over laser-welded mild steel, a slim 68mm two-column depth, 10 bar pressure testing and a five year Kartell guarantee make it as practical as it is pretty. Brackets and fixings are included; it pairs beautifully with traditional chrome valves.

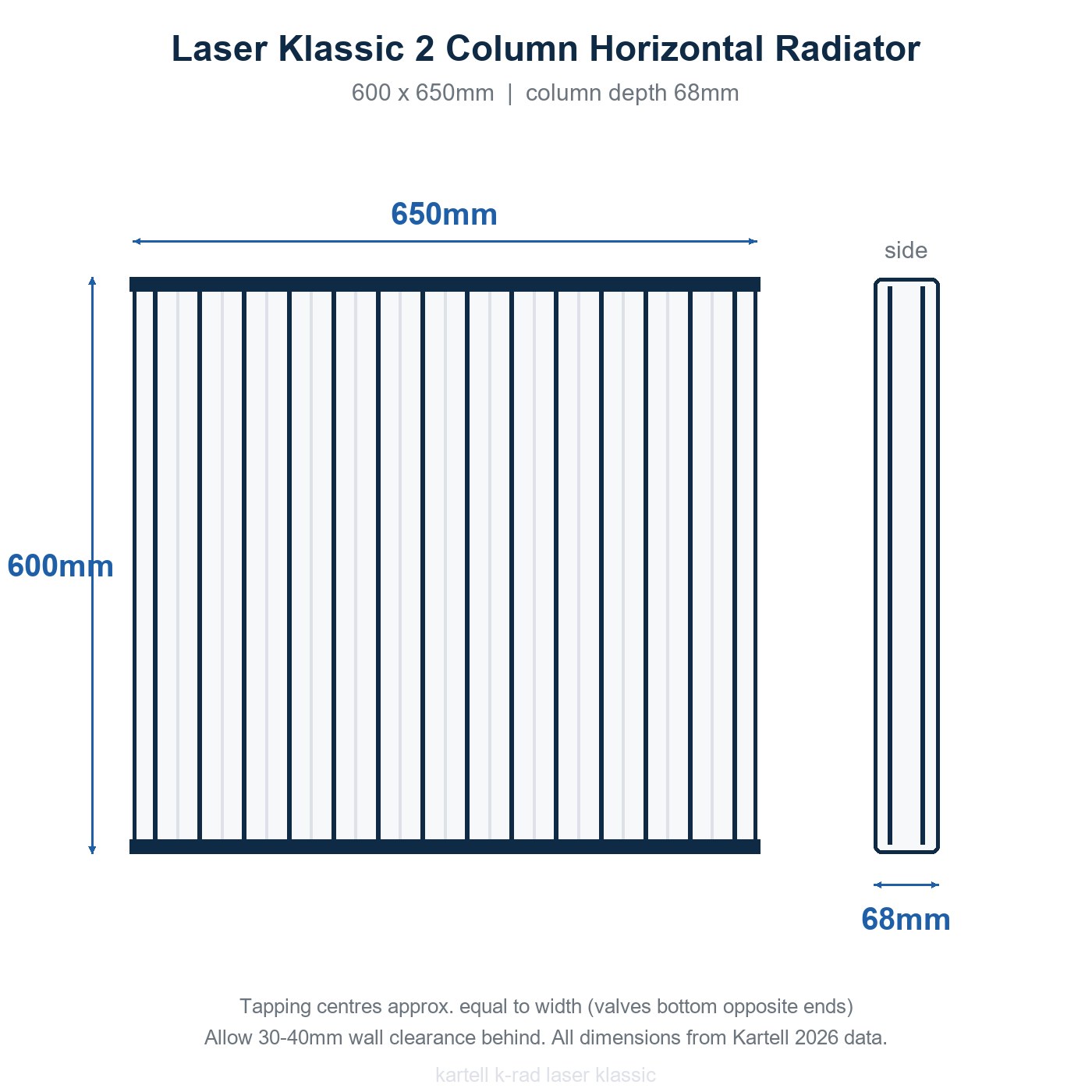

Range photography is for illustration - the number of sections varies with the size ordered. This listing is the 600 x 650mm 2 column model with 14 sections. Dimension drawing included in the gallery.
Start with the room, not the radiator: output should match the space's heat loss.
| Output at Delta T60 (Kartell published) | 2,884 BTU / 845W |
|---|---|
| Output at Delta T50 (calculated, EN442 factor) | approx. 2,275 BTU / 667W |
| Typical room coverage | roughly 5-7 square metres in an average UK home |
Coverage is a guide only - insulation, glazing area and ceiling height change the sums. Use a BTU calculator with your room dimensions before ordering, and size up slightly for north-facing or draughty rooms.
| Range | Kartell K-Rad Laser Klassic |
|---|---|
| Type | 2 column radiator (horizontal) |
| Height x Width | 600 x 650mm |
| Column depth | 68mm (allow 98-108mm wall to front face) |
| Sections | 14 |
| Heat output (Delta T60) | 2,884 BTU / 845W |
| Heat output (Delta T50, calculated) | approx. 2,275 BTU / 667W |
| Finish | Gloss white powder coat over mild steel |
| Material | Laser-welded mild steel |
| Tapping centres | approx. 650mm - valves at bottom opposite ends |
| Weight (empty) | 15.68kg |
| Pressure tested | 10 bar |
| Guarantee | 5 years (register with Kartell UK) |
| In the box | Radiator, wall brackets, fixing kit, instructions |
| Valves | Not included - sold separately |
Any heating engineer will treat this as a straightforward swap or first fix.
Valves are not included. You need a pair: one wheelhead or thermostatic (TRV) valve plus one lockshield. Angled valves suit pipework rising from the floor; straight valves suit wall-fed pipe runs.
See our radiator valves range - the Kartell TRV and lockshield twin packs pair perfectly.
Orders are picked from live UK stock. Radiators are palletised or double-boxed and checked before dispatch - please inspect on arrival and note any transit damage with the driver.
