| Manufacturer Warranty | 5 Years (T&C’s Apply) |
|---|---|
| Orientation | Horizontal Orientation |
| Colour | White |
| Height | 600 mm |
| Width | 650 mm |
| Heat Output Watts | 1198 |
| Heat Output BTU | 4088 |
| Radiator Pipe Centres (mm) (Plus Valves) | approx. 650 |
| Radiator Projection (mm) | 130-140 |
| Radiator Wall To Pipe Centres (mm) | 30-40 |
| Manufacturer | Kartell |
| Manufacturer Part No | LK3600650 |
North-facing rooms and solid-wall cottages need more heat per metre of wall than modern rules of thumb suggest - and that is precisely what a compact three-column provides. This 650mm white model turns fourteen sections at 100mm deep into 4,088 BTU (1,198W) at Delta T60, roughly forty percent more than its two-column twin in the same footprint.
Laser-welded mild steel, gloss white powder coat, 10 bar pressure testing and Kartell's five year guarantee come as standard, with brackets and fixings boxed. A thermostatic valve makes the most of the extra capacity in small, hard-to-heat rooms.

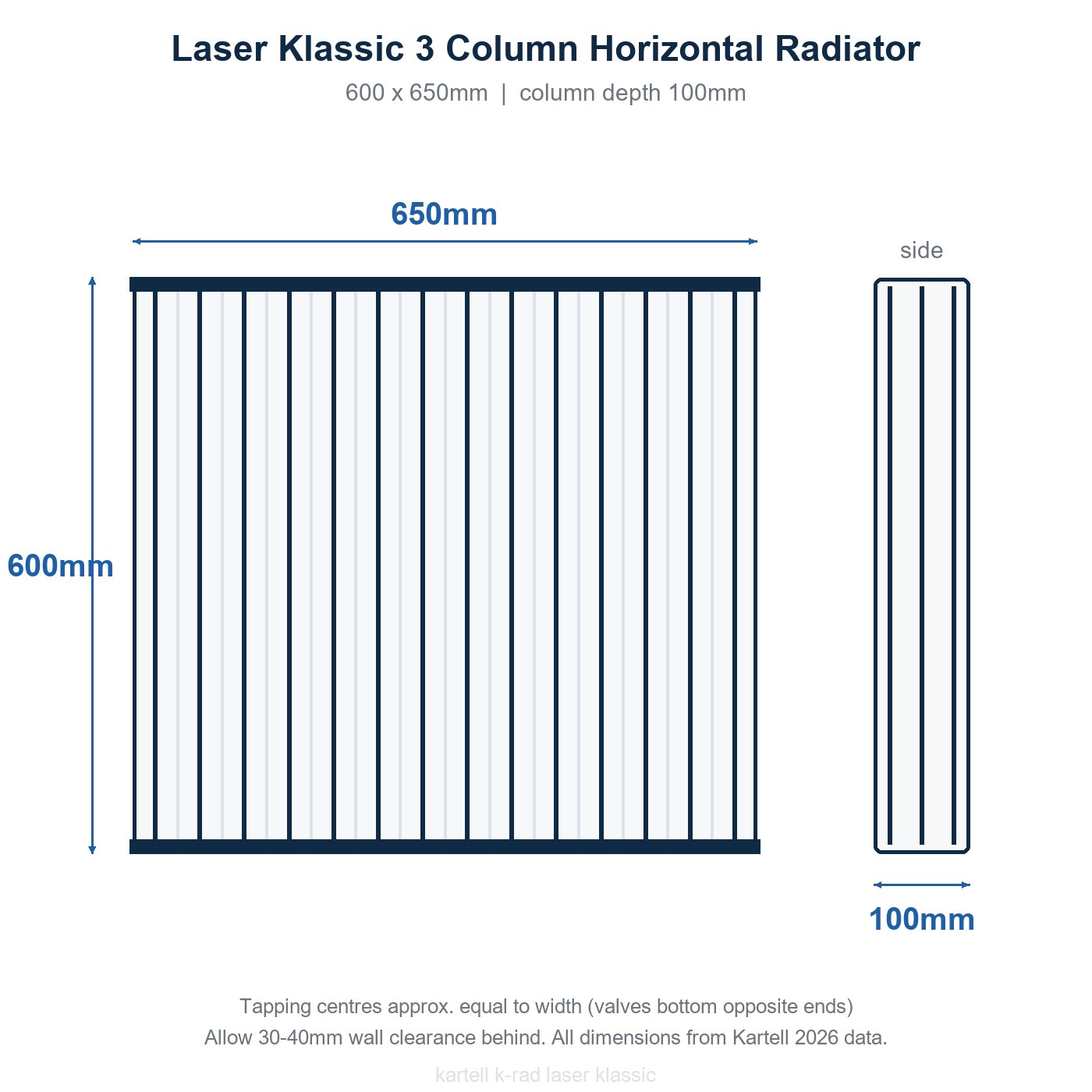

Range photography is for illustration - the number of sections varies with the size ordered. This listing is the 600 x 650mm 3 column model with 14 sections. Dimension drawing included in the gallery.
The right radiator is the one sized to the room, not the biggest that fits the wall.
| Output at Delta T60 (Kartell published) | 4,088 BTU / 1,198W |
|---|---|
| Output at Delta T50 (calculated, EN442 factor) | approx. 3,226 BTU / 945W |
| Typical room coverage | roughly 7-10 square metres in an average UK home |
Coverage is a guide only - insulation, glazing area and ceiling height change the sums. Use a BTU calculator with your room dimensions before ordering, and size up slightly for north-facing or draughty rooms.
| Range | Kartell K-Rad Laser Klassic |
|---|---|
| Type | 3 column radiator (horizontal) |
| Height x Width | 600 x 650mm |
| Column depth | 100mm (allow 130-140mm wall to front face) |
| Sections | 14 |
| Heat output (Delta T60) | 4,088 BTU / 1,198W |
| Heat output (Delta T50, calculated) | approx. 3,226 BTU / 945W |
| Finish | Gloss white powder coat over mild steel |
| Material | Laser-welded mild steel |
| Tapping centres | approx. 650mm - valves at bottom opposite ends |
| Weight (empty) | 22.4kg |
| Pressure tested | 10 bar |
| Guarantee | 5 years (register with Kartell UK) |
| In the box | Radiator, wall brackets, fixing kit, instructions |
| Valves | Not included - sold separately |
Installation is a routine job for any plumber or competent DIYer used to hanging radiators.
Valves are not included. You need a pair: one wheelhead or thermostatic (TRV) valve plus one lockshield. Angled valves suit pipework rising from the floor; straight valves suit wall-fed pipe runs.
See our radiator valves range - the Kartell TRV and lockshield twin packs pair perfectly.
Orders are picked from live UK stock. Radiators are palletised or double-boxed and checked before dispatch - please inspect on arrival and note any transit damage with the driver.
