| Manufacturer Warranty | 5 Years (T&C’s Apply) |
|---|---|
| Orientation | Horizontal Orientation |
| Colour | White |
| Height | 600 mm |
| Width | 1010 mm |
| Heat Output Watts | 1883 |
| Heat Output BTU | 6424 |
| Radiator Pipe Centres (mm) (Plus Valves) | approx. 1010 |
| Radiator Projection (mm) | 130-140 |
| Radiator Wall To Pipe Centres (mm) | 30-40 |
| Manufacturer | Kartell |
| Manufacturer Part No | LK36001010 |
Principal bedrooms and generous lounges sit squarely in this radiator's territory: 1010mm wide, twenty-two white sections, 6,424 BTU (1,883W) at Delta T60. It brings cast-iron-era output and proportions to rooms that were built around them, but hangs on modern walls and heats up in a fraction of the time thanks to its efficient mild steel waterways.
Each radiator is laser-welded, powder coated gloss white, pressure tested to 10 bar and guaranteed for five years by Kartell. The three-column body runs 100mm deep with brackets and a full fixing kit supplied. Optional floor feet suit solid-floor installations.

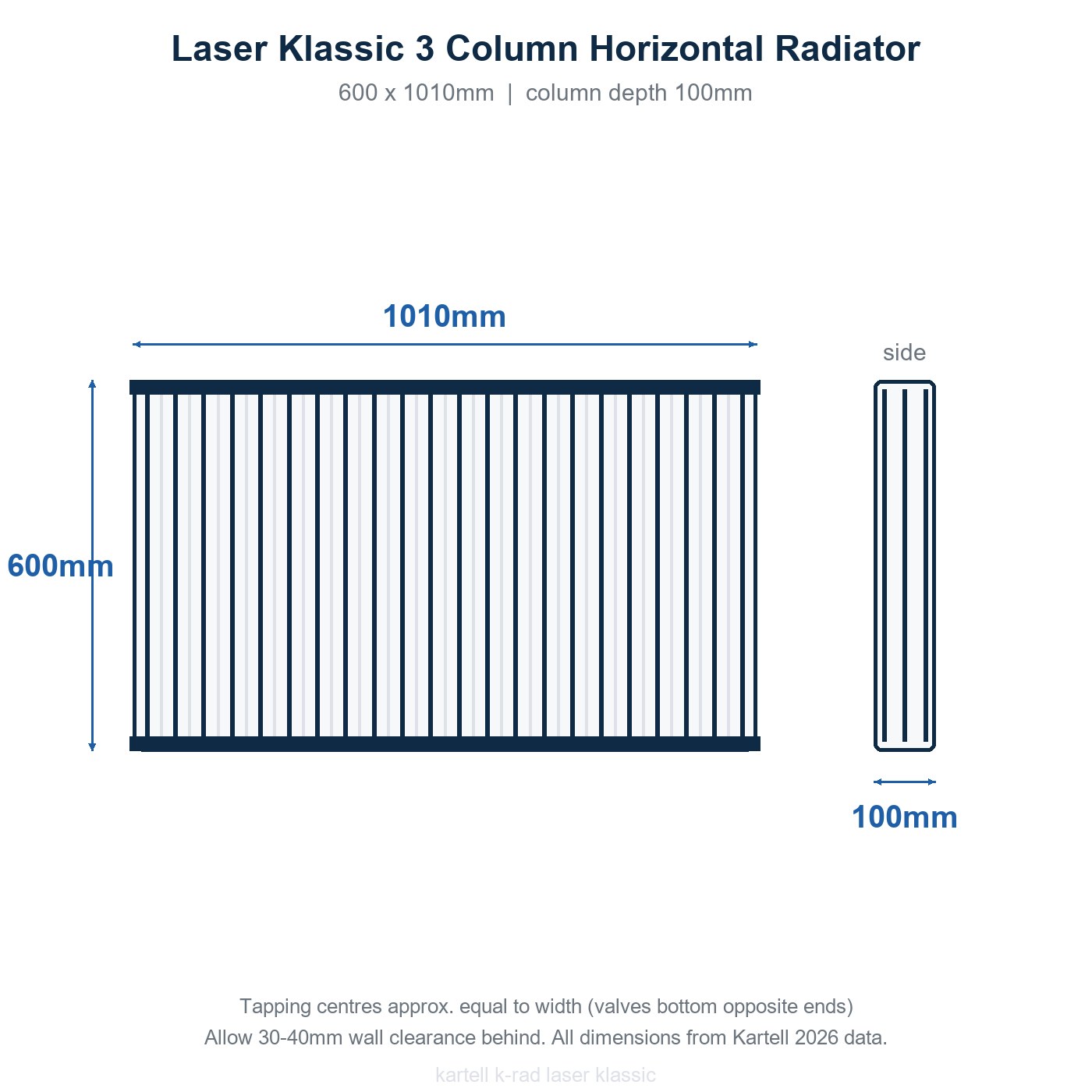

Range photography is for illustration - the number of sections varies with the size ordered. This listing is the 600 x 1010mm 3 column model with 22 sections. Dimension drawing included in the gallery.
Sizing correctly matters more than style - here is where this model fits.
| Output at Delta T60 (Kartell published) | 6,424 BTU / 1,883W |
|---|---|
| Output at Delta T50 (calculated, EN442 factor) | approx. 5,069 BTU / 1,486W |
| Typical room coverage | roughly 11-16 square metres in an average UK home |
Coverage is a guide only - insulation, glazing area and ceiling height change the sums. Use a BTU calculator with your room dimensions before ordering, and size up slightly for north-facing or draughty rooms.
| Range | Kartell K-Rad Laser Klassic |
|---|---|
| Type | 3 column radiator (horizontal) |
| Height x Width | 600 x 1010mm |
| Column depth | 100mm (allow 130-140mm wall to front face) |
| Sections | 22 |
| Heat output (Delta T60) | 6,424 BTU / 1,883W |
| Heat output (Delta T50, calculated) | approx. 5,069 BTU / 1,486W |
| Finish | Gloss white powder coat over mild steel |
| Material | Laser-welded mild steel |
| Tapping centres | approx. 1010mm - valves at bottom opposite ends |
| Weight (empty) | 34.1kg |
| Pressure tested | 10 bar |
| Guarantee | 5 years (register with Kartell UK) |
| In the box | Radiator, wall brackets, fixing kit, instructions |
| Valves | Not included - sold separately |
Any heating engineer will treat this as a straightforward swap or first fix.
Valves are not included. You need a pair: one wheelhead or thermostatic (TRV) valve plus one lockshield. Angled valves suit pipework rising from the floor; straight valves suit wall-fed pipe runs.
See our radiator valves range - the Kartell TRV and lockshield twin packs pair perfectly.
Orders are picked from live UK stock. Radiators are palletised or double-boxed and checked before dispatch - please inspect on arrival and note any transit damage with the driver.
