2 Column Vertical Radiator in White or Black - Tall and Narrow
A tall double column radiator for the walls a horizontal one will not fit: beside doors, in alcoves and on narrow chimney breasts. Choose your colour, height and width above - every size shows its BTU, watts and pipe centres before you buy.
WhiteBlack2 ColumnVertical92mm Deep5 Year GuaranteeFree UK Delivery
Up to 5,074
BTU dT50
1500-1800
Height (mm)
245-560
Width (mm)
92mm
Projection
2
Colours
5yr
Guarantee
Overview
A vertical column radiator puts the heat where a horizontal one will not fit. This 2 column vertical radiator is 1800mm tall in five widths from a slim 245mm to 560mm, plus a 1500mm height in white, and it stands just 92mm off the wall. The 1800 x 560mm gives 5,074 BTU, enough for a good sized room from a strip of wall barely half a metre wide.
Every DUSC Columns radiator is made from mild steel with a hard-wearing white or black powder coat and carries a 5 year guarantee. You get the look of a tall cast iron column radiator at a fraction of the weight, and because the pipe centres match the width, it lines up easily with the pipework.

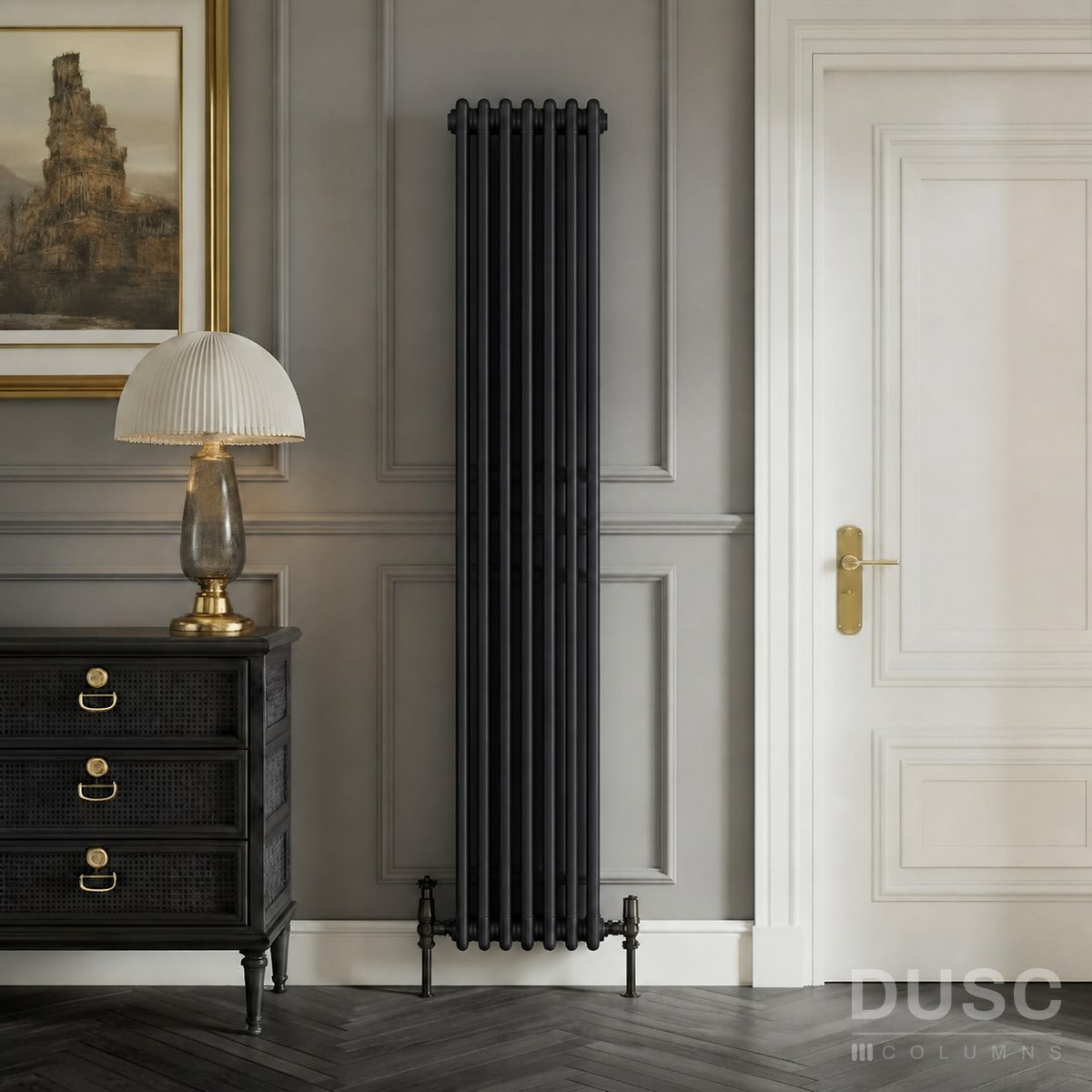

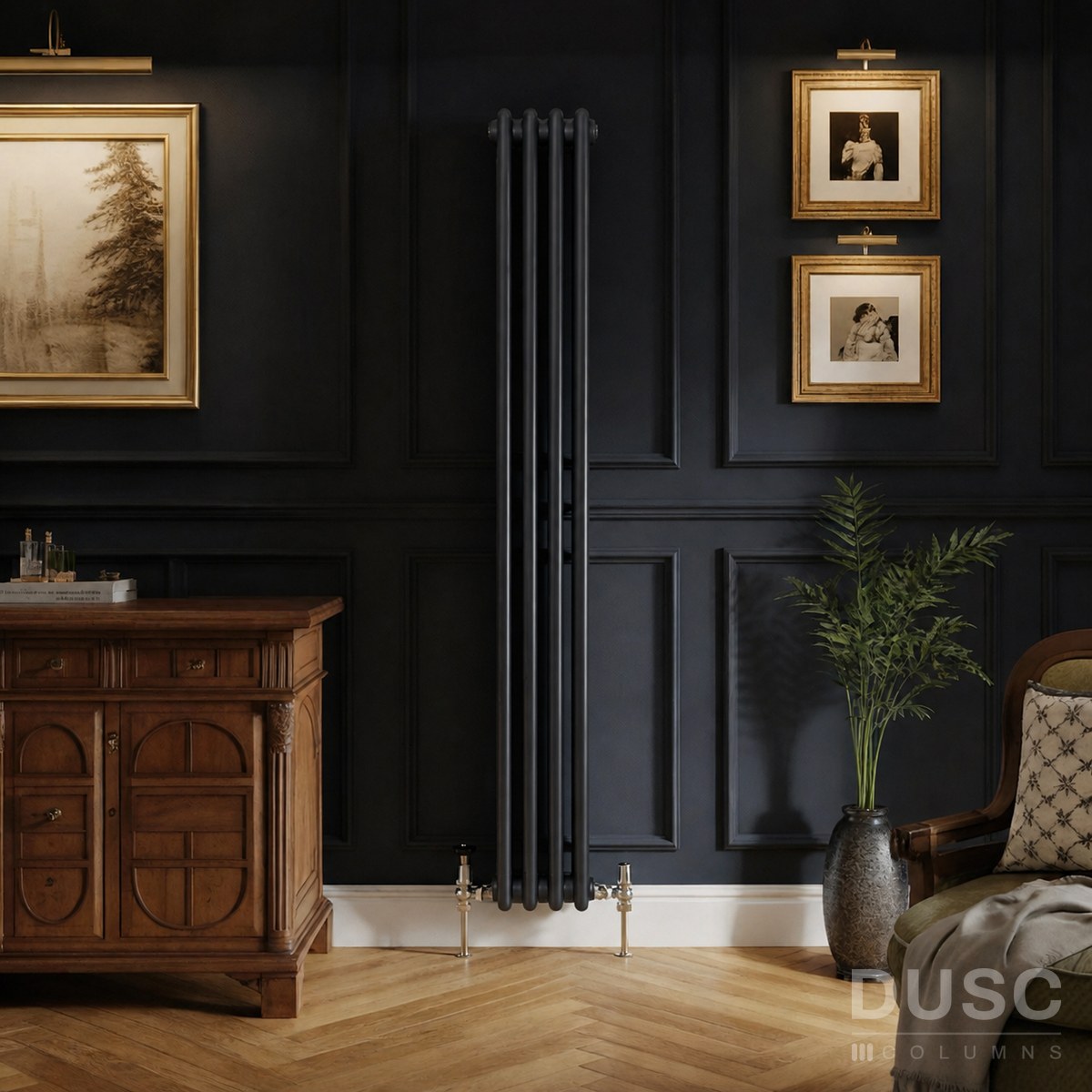

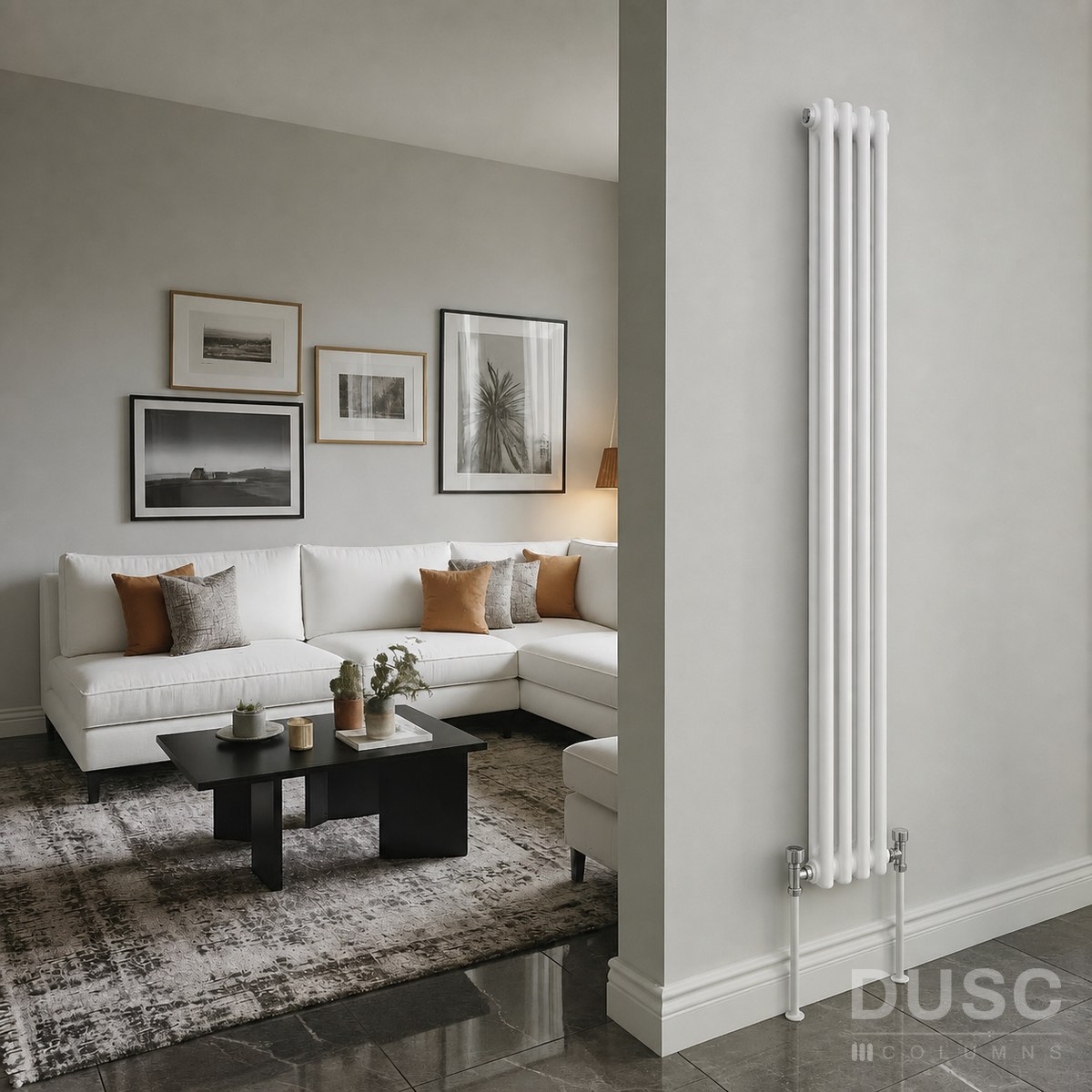

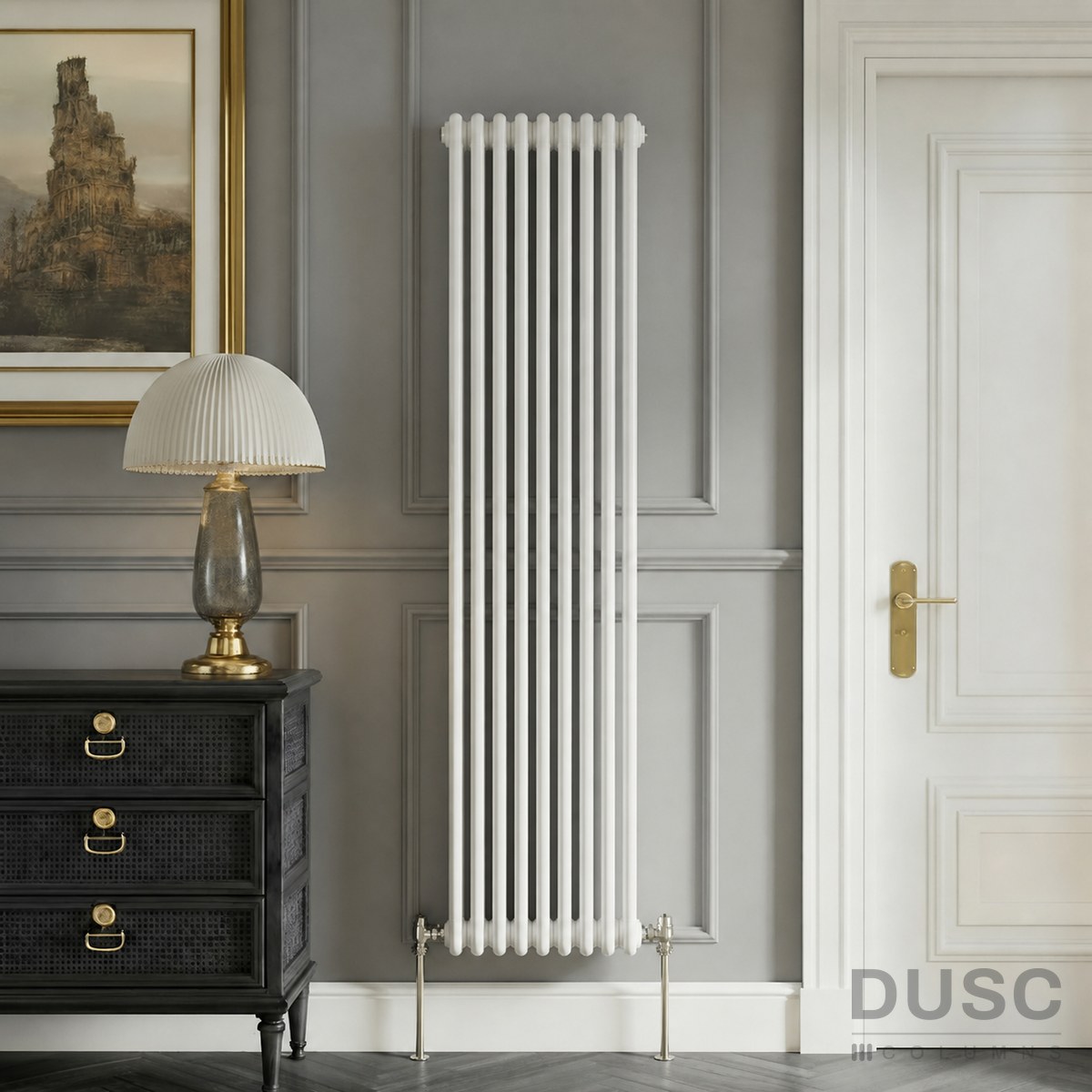

Room photography shows the range style - section count varies by size, so check the size table for the exact model.
Sizes & BTU
Heat output for every size at Delta T50. On this range the pipe centres are the same as the width. Choose your colour, height and width above and the price, BTU and watts update to match.

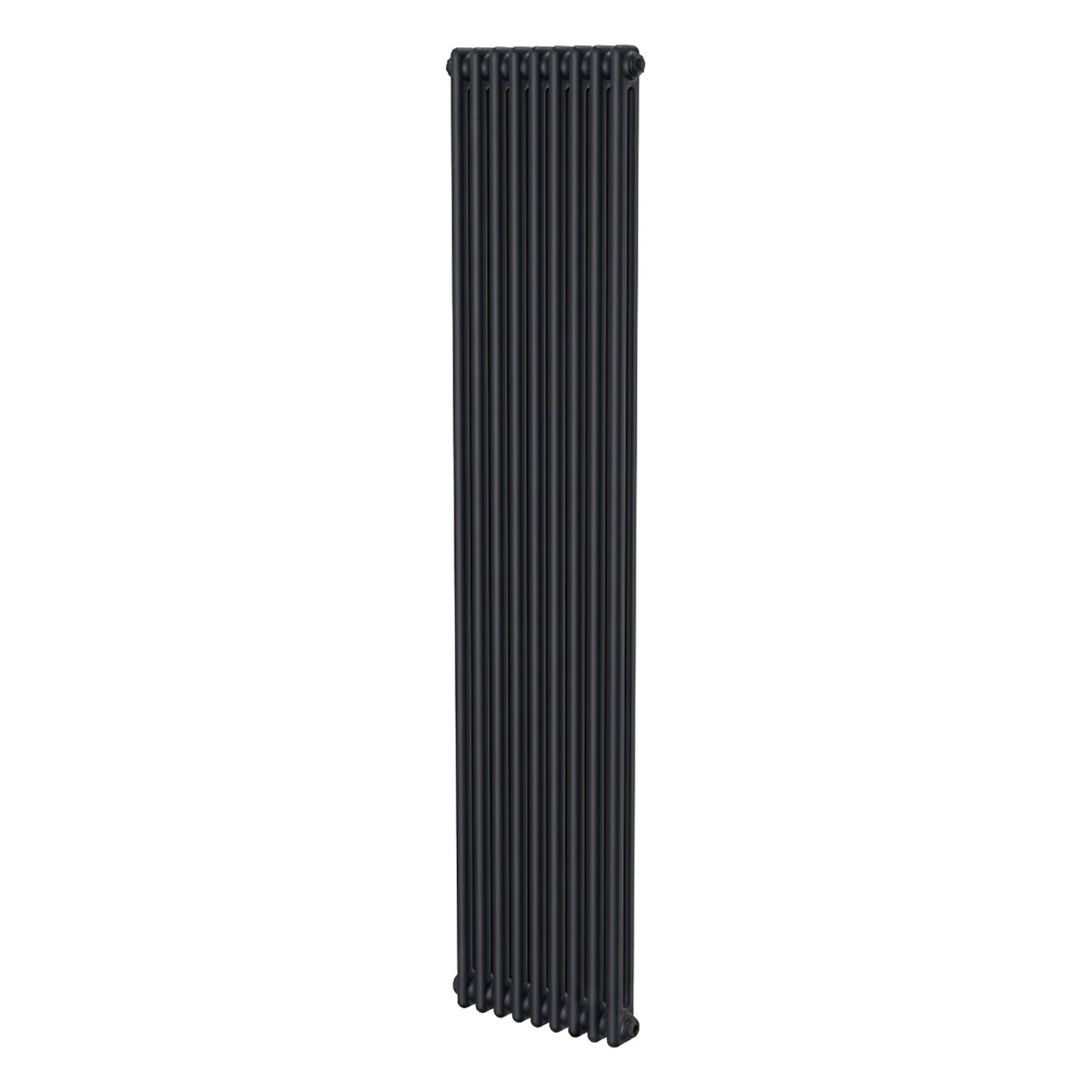

Black is made in the 1800mm height, in all five widths.
Each size also has its own page - click the colour to see it.
Specifications
Range
DUSC Columns
Type
2 column radiator (vertical)
Colours
White or black powder coat
Heights
1500mm, 1800mm
Widths
245mm, 335mm, 425mm, 515mm, 560mm
Projection from wall
92mm
Wall to pipe centres
68mm
Heat output (Delta T50)
2,113 to 5,074 BTU (620 to 1,488 watts)
Pipe centres
Same as the width
Valve position
At the foot of each end column
Material
Mild steel
Weight (empty)
17.81 to 39.65kg depending on size
Guarantee
5 years
In the box
Radiator, wall brackets, fixing kit, instructions
Valves
Not included - sold separately
Mounting
Wall mounted on the brackets supplied - no feet
Fitting
Replacing an existing radiator? On this range the pipe centres are the same as the width - a 425mm wide radiator has 425mm pipe centres. Pick the width that matches your current pipework and it drops straight on, with no re-piping.
Fitting is a routine job for any plumber or a confident DIY installer.
Connects to a standard UK two-pipe central heating system.
Valves fit at the foot of each end column. Add 90mm to the pipe centre measurement when fitting with valves.
Brackets hold the radiator 92mm off the wall, with the pipes 68mm out - allow for that when planning skirting or furniture.
It is heavier full of water: fix into masonry or studwork, and use fixings rated for the filled weight on plasterboard.
Flush the system and dose inhibitor after fitting, as with any steel radiator.
Mounting & Valves
This is a wall mounted vertical radiator and does not take floor feet. It fixes on the brackets supplied.
The wall fixings carry the full filled weight. Allow for the water on top of the empty weight in the specification, and use fixings rated accordingly - especially on plasterboard or stud walls.
Traditional cross-head valves complete the period look.
A thermostatic valve holds a room at a set temperature.
Angled, corner and straight valves all suit this radiator - choose by where your pipes come out of the wall or floor.
Delivery & Returns
Orders are picked from UK stock and sent out carefully packed.
FREE UK mainland delivery on this radiator - typically 3 to 5 working days.
Check the radiator on arrival and report any transit damage straight away.
30 day returns on unused radiators in original packaging.
Questions on access or timed delivery? Call us on 01282 429061.
Frequently Asked Questions

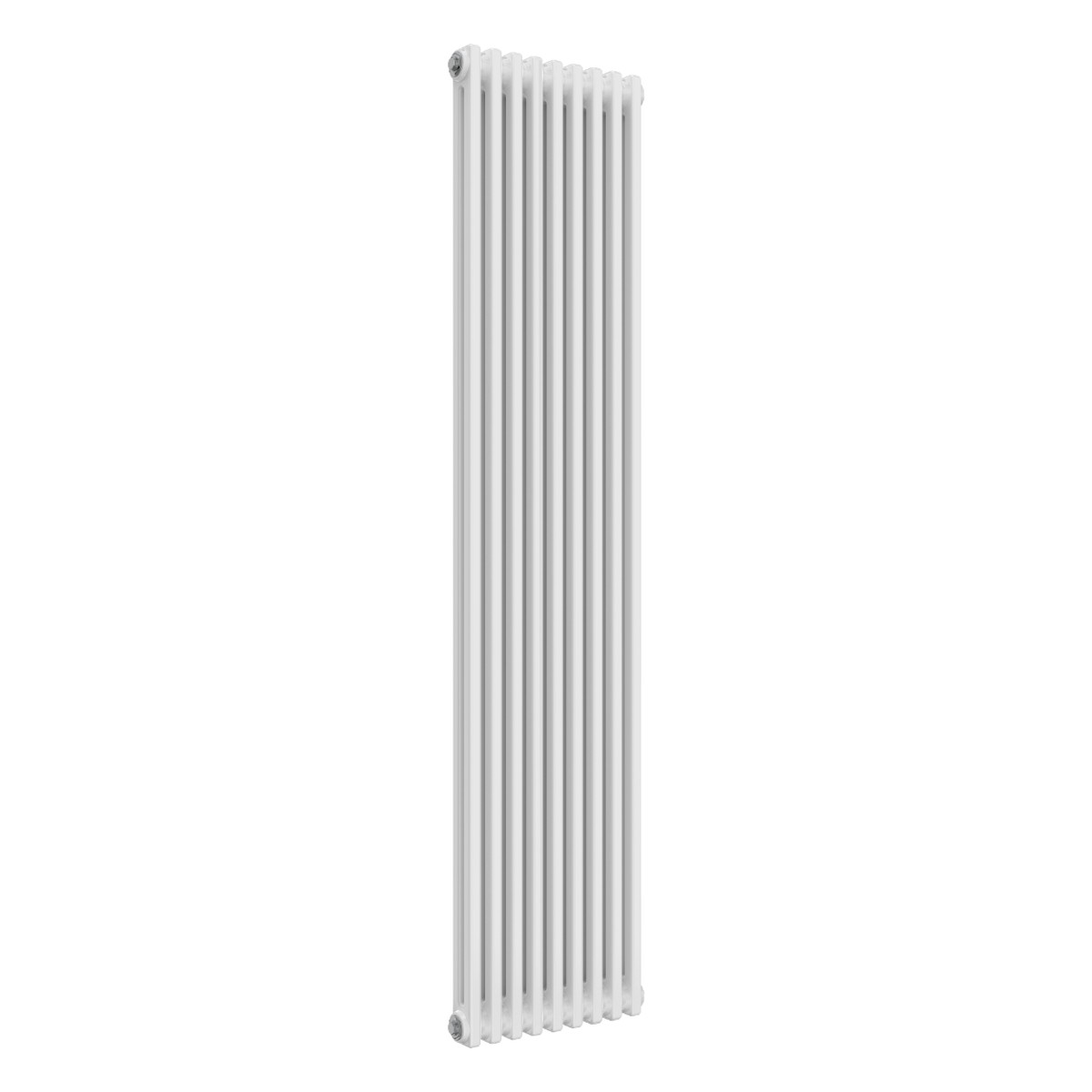

Yes - heat output depends on the size and the number of columns, not which way up the radiator stands. Our 1800 x 425mm 2 column vertical gives 3,806 BTU, about the same as a 600 x 1190mm 2 column horizontal at 3,839 BTU, from about a third of the wall width.
Choose the height first - 1800mm for a full height feature, 1500mm where there is less wall above - then the width that fits the space and your pipework. Check the BTU in the size table against the heat the room needs.
No. This is a wall mounted radiator and it hangs on the brackets supplied. Fix into masonry or studwork and use fixings rated for the filled weight, especially on plasterboard.
On this range the pipe centres are the same as the width: 245, 335, 425, 515 or 560mm, with the valves at the foot of each end column. Add 90mm to the pipe centre figure when fitting new valves.
Yes - it works on any wet central heating system, including a heat pump. The outputs on this page are at Delta T50, typical of a boiler. At Delta T30 any radiator gives out roughly half its Delta T50 figure, so size up and ask your installer for the heat loss of the room.
The radiator, wall brackets, a fixing kit and instructions. Valves are not included and are sold separately.
