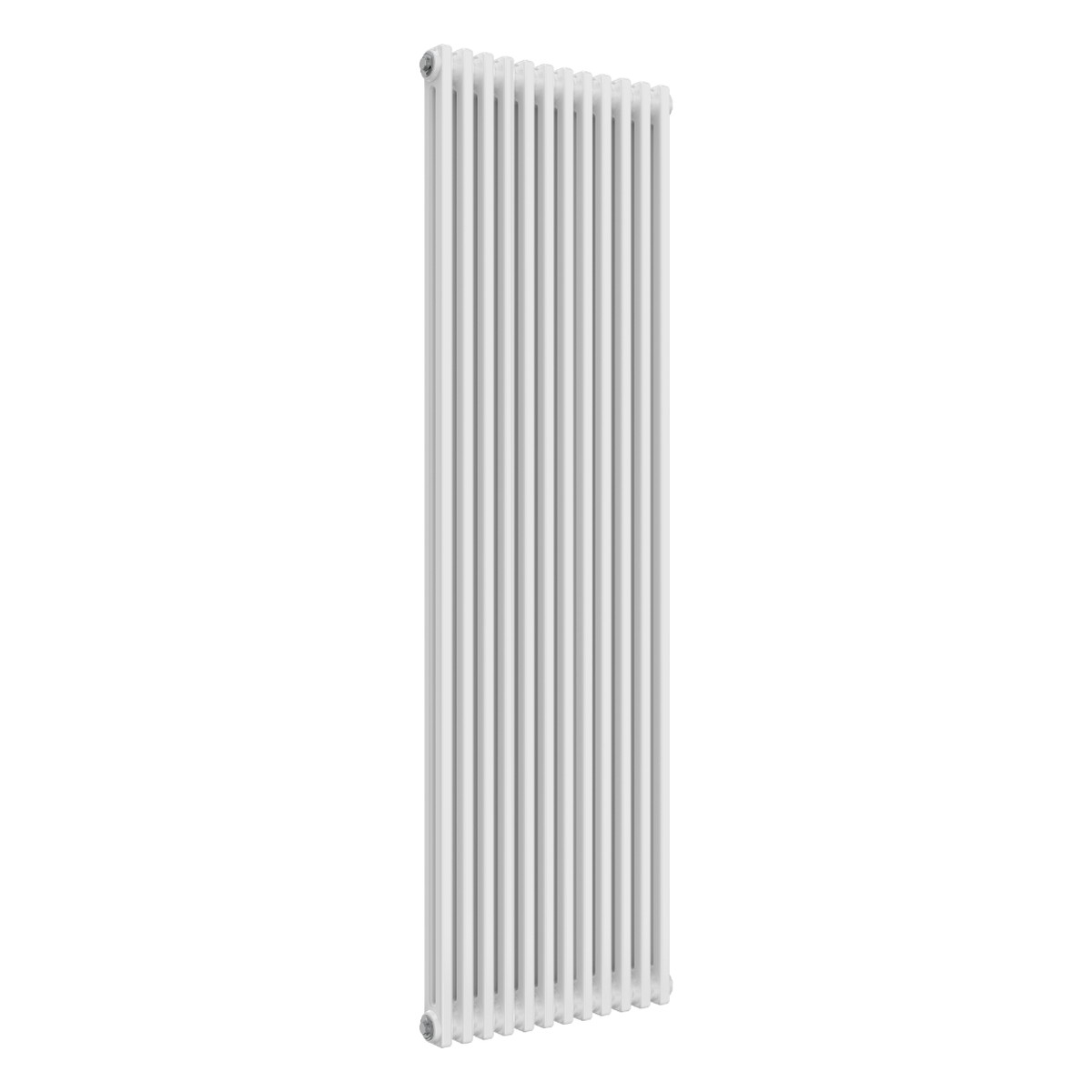

White 2 Column Vertical Radiator 1800 x 560mm - DUSC Columns - 5,074 BTU
Traditional cast iron looks in modern mild steel, made in the exact size 1800 x 560mm - not the nearest size. 5,074 BTU at Delta T50 with 560mm pipe centres.
White2 ColumnVertical12 Sections5 Year GuaranteeFree UK Delivery
5,074
BTU dT50
1,488W
Watts dT50
1800mm
Height
560mm
Width
92mm
Projection
5yr
Guarantee
Overview
A full-height white column radiator that turns a plain stretch of wall into the feature of the room. 1800mm tall by 560mm wide, 12 sections of 2 column steel, and 5,074 BTU of output where a horizontal radiator simply would not fit.
Every DUSC Columns radiator is pressed from mild steel and finished in a hard-wearing white powder coat, then backed by a 5 year guarantee. The range runs to 94 sizes, which is the whole point of it: instead of forcing your wall to suit a radiator, you pick the one that actually fits. This one measures 1800mm high, 560mm wide and sits 92mm off the wall.
Room photography shows the range style - section count varies by size, so refer to the specification table for this exact model.
Sizing Guide
Match the radiator to the room rather than the gap in the wall. These are the published outputs for this size:
Heat output at Delta T50
5,074 BTU / 1,488 watts
Typical room coverage
roughly 9 to 13 square metres in an average UK home
Sections
12
Use the BTU calculator on this page with your room's real dimensions before ordering, and size up slightly for north facing or draughty rooms.
Coverage is a guide only - insulation, glazing area and ceiling height all change the sums.
Specifications
Range
DUSC Columns
Type
2 column radiator (vertical)
Height x Width
1800 x 560mm
Projection from wall
92mm
Sections
12
Heat output (Delta T50)
5,074 BTU / 1,488 watts
Pipe centres
560mm
Wall to pipe centres
68mm
Finish
White powder coat over mild steel
Material
Mild steel
Weight (empty)
37.86kg
Guarantee
5 years
In the box
Radiator, wall brackets, fixing kit, instructions
Valves
Not included - sold separately
Fitting
Replacing an existing radiator? This size has 560mm pipe centres. If your current pipework measures 560mm centre to centre, this radiator drops straight onto it - no re-piping, no floorboards up.
Fitting is a routine job for any plumber or a confident DIY installer.
Connects to a standard UK two-pipe central heating system.
Pipe centres 560mm, valves at the foot of each end column. Add 90mm to the pipe centre measurement when fitting with valves.
Brackets hold the radiator 92mm off the wall - allow for that when planning skirting or furniture.
Empty weight is 37.86kg and heavier full of water: fix into masonry or studwork, and use fixings rated for the filled weight on plasterboard.
Flush the system and dose inhibitor after fitting, as with any steel radiator.
Mounting & Valves
This is a wall mounted vertical radiator and does not take floor feet. It fixes on the brackets supplied.
The wall fixings carry the full filled weight. Check the empty weight of 37.86kg in the specification, allow for water on top of that, and use fixings rated accordingly - especially on plasterboard or stud walls.
Traditional cross-head valves complete the period look.
A thermostatic valve holds bedrooms and hallways at a set temperature.
Angled, corner and straight valves all suit this radiator - choose by where your pipes come out of the wall or floor.
Delivery & Returns
Orders are picked from live UK stock and sent out carefully packed.
FREE UK mainland delivery on this radiator - typically 3 to 5 working days.
Check the radiator on arrival and report any transit damage straight away.
30 day returns on unused radiators in original packaging.
Questions on access or timed delivery? Call us on 01282 429063.
Frequently Asked Questions
This size has 560mm pipe centres. If your existing pipework measures 560mm centre to centre, it fits without re-piping. Measure centre to centre across your current valves, and add 90mm to the pipe centre figure when fitting with new valves.
5,074 BTU per hour (1,488 watts) at Delta T50, from 12 sections. That suits a room of roughly 9 to 13 square metres in an average UK home, though insulation and glazing change the sums - use the BTU calculator on this page.
On the wall brackets supplied. It weighs 37.86kg empty and more once filled with water, so fix into masonry or studwork and use fixings rated for the filled weight on plasterboard or stud walls.
The radiator itself in white, wall brackets, a fixing kit and instructions. Valves are not included and are sold separately. Feet, where offered, are added from the dropdown on this page.
