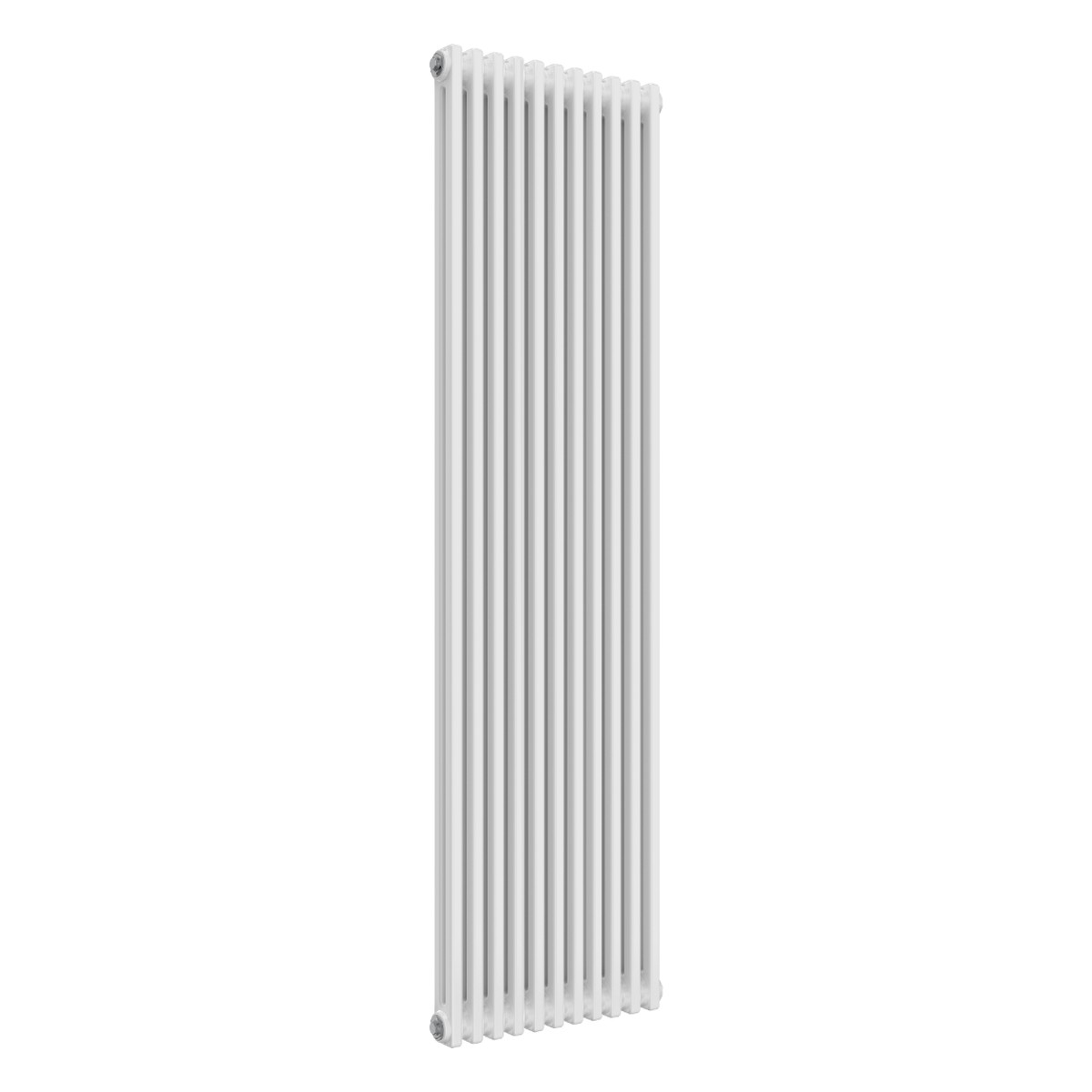

White 2 Column Vertical Radiator 1800 x 515mm - DUSC Columns - 4,652 BTU
Traditional cast iron looks in modern mild steel, made in the exact size 1800 x 515mm - not the nearest size. 4,652 BTU at Delta T50 with 515mm pipe centres.
White2 ColumnVertical11 Sections5 Year GuaranteeFree UK Delivery
4,652
BTU dT50
1,364W
Watts dT50
1800mm
Height
515mm
Width
92mm
Projection
5yr
Guarantee
Overview
A full-height white column radiator that turns a plain stretch of wall into the feature of the room. 1800mm tall by 515mm wide, 11 sections of 2 column steel, and 4,652 BTU of output where a horizontal radiator simply would not fit.
Every DUSC Columns radiator is pressed from mild steel and finished in a hard-wearing white powder coat, then backed by a 5 year guarantee. The range runs to 94 sizes, which is the whole point of it: instead of forcing your wall to suit a radiator, you pick the one that actually fits. This one measures 1800mm high, 515mm wide and sits 92mm off the wall.

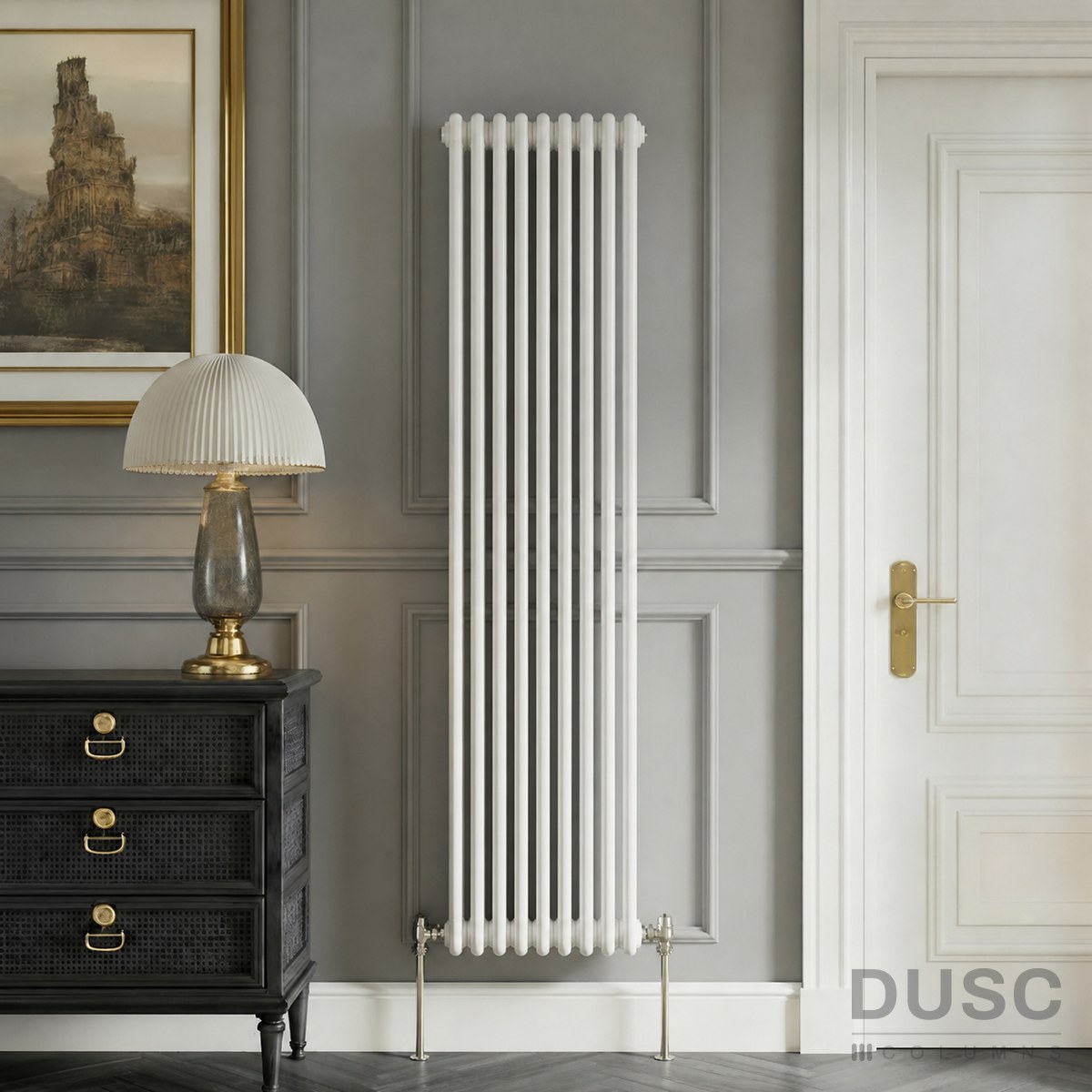

Room photography shows the range style - section count varies by size, so refer to the specification table for this exact model.
Sizing Guide
Match the radiator to the room rather than the gap in the wall. These are the published outputs for this size:
Heat output at Delta T50
4,652 BTU / 1,364 watts
Typical room coverage
roughly 8 to 11 square metres in an average UK home
Sections
11
Use the BTU calculator on this page with your room's real dimensions before ordering, and size up slightly for north facing or draughty rooms.
Coverage is a guide only - insulation, glazing area and ceiling height all change the sums.
Specifications
Range
DUSC Columns
Type
2 column radiator (vertical)
Height x Width
1800 x 515mm
Projection from wall
92mm
Sections
11
Heat output (Delta T50)
4,652 BTU / 1,364 watts
Pipe centres
515mm
Wall to pipe centres
68mm
Finish
White powder coat over mild steel
Material
Mild steel
Weight (empty)
35kg
Guarantee
5 years
In the box
Radiator, wall brackets, fixing kit, instructions
Valves
Not included - sold separately
Fitting
Replacing an existing radiator? This size has 515mm pipe centres. If your current pipework measures 515mm centre to centre, this radiator drops straight onto it - no re-piping, no floorboards up.
Fitting is a routine job for any plumber or a confident DIY installer.
Connects to a standard UK two-pipe central heating system.
Pipe centres 515mm, valves at the foot of each end column. Add 90mm to the pipe centre measurement when fitting with valves.
Brackets hold the radiator 92mm off the wall - allow for that when planning skirting or furniture.
Empty weight is 35kg and heavier full of water: fix into masonry or studwork, and use fixings rated for the filled weight on plasterboard.
Flush the system and dose inhibitor after fitting, as with any steel radiator.
Mounting & Valves
This is a wall mounted vertical radiator and does not take floor feet. It fixes on the brackets supplied.
The wall fixings carry the full filled weight. Check the empty weight of 35kg in the specification, allow for water on top of that, and use fixings rated accordingly - especially on plasterboard or stud walls.
Traditional cross-head valves complete the period look.
A thermostatic valve holds bedrooms and hallways at a set temperature.
Angled, corner and straight valves all suit this radiator - choose by where your pipes come out of the wall or floor.
Delivery & Returns
Orders are picked from live UK stock and sent out carefully packed.
FREE UK mainland delivery on this radiator - typically 3 to 5 working days.
Check the radiator on arrival and report any transit damage straight away.
30 day returns on unused radiators in original packaging.
Questions on access or timed delivery? Call us on 01282 429063.
Frequently Asked Questions
This size has 515mm pipe centres. If your existing pipework measures 515mm centre to centre, it fits without re-piping. Measure centre to centre across your current valves, and add 90mm to the pipe centre figure when fitting with new valves.
4,652 BTU per hour (1,364 watts) at Delta T50, from 11 sections. That suits a room of roughly 8 to 11 square metres in an average UK home, though insulation and glazing change the sums - use the BTU calculator on this page.
On the wall brackets supplied. It weighs 35kg empty and more once filled with water, so fix into masonry or studwork and use fixings rated for the filled weight on plasterboard or stud walls.
The radiator itself in white, wall brackets, a fixing kit and instructions. Valves are not included and are sold separately. Feet, where offered, are added from the dropdown on this page.
