White 3 Column Vertical Radiator 1800 x 335mm - Kartell Laser Klassic - 5,404 BTU

Name: White 3 Column Vertical Radiator 1800 x 335mm - Kartell Laser Klassic - 5,404 BTU
Brand: Kartell K-Rad
SKU: OFNLKW24
Price: 205.00 GBP
Availability: InStock

In stock

SKU

OFNLKW24

Now £205.00 Was £531.00

Need Help?

Call an heating expert on 01282 429061

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Key Features

More Information
Manufacturer Warranty	5 Years (T&C’s Apply)
Orientation	Vertical Orientation
Colour	White
Height	1800 mm
Width	335 mm
Heat Output Watts	1584
Heat Output BTU	5404
Radiator Pipe Centres (mm) (Plus Valves)	approx. 335
Radiator Projection (mm)	130-140
Radiator Wall To Pipe Centres (mm)	30-40
Manufacturer	Kartell
Manufacturer Part No	LK31800335

Product Details

Kartell K-Rad Laser Klassic

White 3 Column Vertical Radiator 1800 x 335mm - Kartell Laser Klassic - 5,404 BTU

Traditional column looks with laser-welded steel engineering - 5,404 BTU at Delta T60 from a 1800 x 335mm footprint.

Gloss White3 ColumnVertical7 Sections5 Year GuaranteeFree UK Delivery

5,404

BTU dT60

1,584W

Watts dT60

1800mm

Height

335mm

Width

100mm

Depth

5yr

Guarantee

Overview

A tower of heat on the footprint of a bookcase spine: 335mm wide, three columns deep, 5,404 BTU (1,584W) at Delta T60. Where the slim two-column version warms a hallway, this one heats it properly - the extra 100mm-deep column bank adds nearly forty percent more output without claiming another millimetre of width. Entrance halls with a single narrow pier of wall are its natural habitat.

Construction is laser-welded mild steel in gloss white powder coat, pressure tested to 10 bar and guaranteed for five years by Kartell. Brackets and fixings are in the box. Its seven sections mirror the proportions of original Edwardian columns almost exactly.

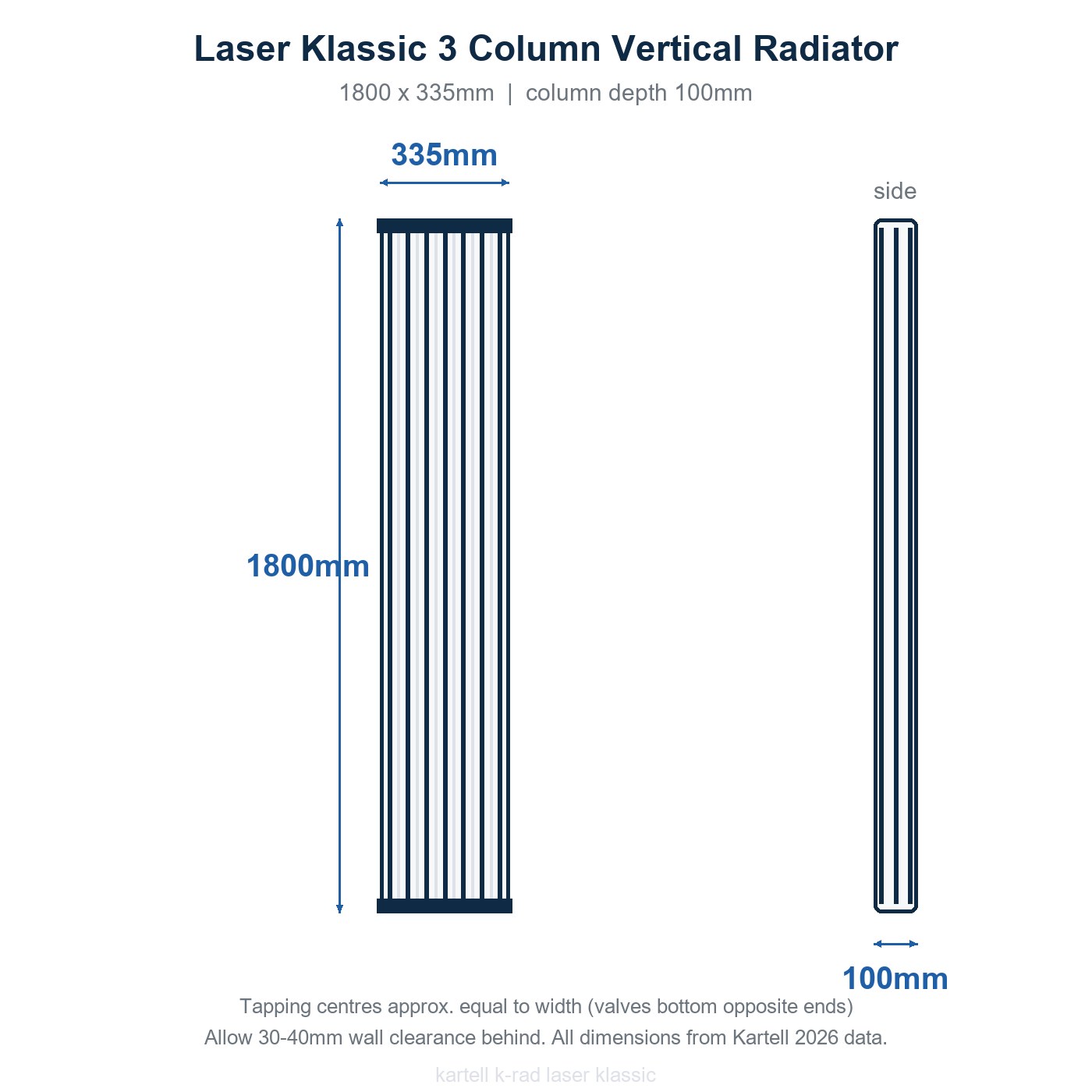

Range photography is for illustration - the number of sections varies with the size ordered. This listing is the 1800 x 335mm 3 column model with 7 sections. Dimension drawing included in the gallery.

Sizing Guide

A radiator only looks right when it heats right, so check the numbers first.

Output at Delta T60 (Kartell published)	5,404 BTU / 1,584W
Output at Delta T50 (calculated, EN442 factor)	approx. 4,264 BTU / 1,250W
Typical room coverage	roughly 10-13 square metres in an average UK home

Coverage is a guide only - insulation, glazing area and ceiling height change the sums. Use a BTU calculator with your room dimensions before ordering, and size up slightly for north-facing or draughty rooms.

Specifications

Range	Kartell K-Rad Laser Klassic
Type	3 column radiator (vertical)
Height x Width	1800 x 335mm
Column depth	100mm (allow 130-140mm wall to front face)
Sections	7
Heat output (Delta T60)	5,404 BTU / 1,584W
Heat output (Delta T50, calculated)	approx. 4,264 BTU / 1,250W
Finish	Gloss white powder coat over mild steel
Material	Laser-welded mild steel
Tapping centres	approx. 335mm - valves at bottom opposite ends
Weight (empty)	31.25kg
Pressure tested	10 bar
Guarantee	5 years (register with Kartell UK)
In the box	Radiator, wall brackets, fixing kit, instructions
Valves	Not included - sold separately

Installation

Any heating engineer will treat this as a straightforward swap or first fix.

Connects to a standard UK two-pipe central heating system.
Tappings sit at the bottom on opposite ends, approx. 335mm apart; pipe up through the floor or along the wall to suit.
Brackets hold the columns 30-40mm off the wall - allow 130-140mm from wall to the front face.
Empty weight is 31.25kg: fix into masonry or studwork, not plasterboard alone. Optional Kartell floor feet carry the weight on stud walls or solid floors.
Flush the system and dose inhibitor after fitting, as with any new radiator.

Valves & Extras

Valves are not included. You need a pair: one wheelhead or thermostatic (TRV) valve plus one lockshield. Angled valves suit pipework rising from the floor; straight valves suit wall-fed pipe runs.

Traditional cross-head or antique-style valves complete the period look this radiator is designed for.
A TRV keeps larger rooms at a set temperature and trims running costs.
Optional Kartell floor feet (white or black to match) add about 120mm and take the weight on suspended floors.

See our radiator valves range - the Kartell TRV and lockshield twin packs pair perfectly.

Delivery & Returns

Orders are picked from live UK stock. Radiators are palletised or double-boxed and checked before dispatch - please inspect on arrival and note any transit damage with the driver.

FREE UK mainland delivery on this radiator - typically 2-5 working days.
14 day returns on unused radiators in original packaging.
Questions on access or timed delivery? Call 01282 429061 before ordering.

Frequently Asked Questions

The columns are 100mm deep and the brackets hold the body 30-40mm off the wall, so allow roughly 130-140mm from wall to the front face.

Gloss white powder coat over mild steel. It is a factory powder coat, considerably tougher than wet paint, and covered by the five year Kartell guarantee. Special finishes including anthracite and raw metal are available in the wider Laser Klassic range.

Kartell rates it at 5,404 BTU per hour (1,584 watts) at Delta T60, the standard European test condition. At the more conservative Delta T50 condition used by many UK sizing guides that equates to approximately 4,264 BTU (1,250W) - a calculated figure using the EN442 correction factor.

The radiator itself in Gloss White with wall-mounting brackets, a fixing kit and instructions. Radiator valves are sold separately. Optional Kartell floor feet are available if you prefer floor-standing support.
