| Manufacturer Warranty | 5 Years (T&C’s Apply) |
|---|---|
| Orientation | Horizontal Orientation |
| Colour | Black |
| Height | 600 mm |
| Width | 1190 mm |
| Heat Output Watts | 2553 |
| Heat Output BTU | 8710 |
| Radiator Pipe Centres (mm) (Plus Valves) | approx. 1190 |
| Radiator Projection (mm) | 170-180 |
| Radiator Wall To Pipe Centres (mm) | 30-40 |
| Manufacturer | Kartell |
| Manufacturer Part No | BLK46001190 |
The flagship of the black Laser Klassic range runs four columns deep and does not apologise for it. 8,710 BTU (2,553W) at Delta T60 from a single 600 x 1190mm radiator is boiler-room territory - the output that heats double-height halls, barn conversion kitchens and glazed garden rooms that swallow ordinary radiators whole. Twenty-six sections at 140mm deep give it the massive, planted look of an original hotel radiator.
It remains every inch a modern Kartell: laser-welded mild steel, matt black RAL 9004 powder coat, 10 bar pressure test and a five year guarantee. Weighing over 50kg, it ships with heavy-duty wall brackets - the optional Kartell floor feet are a sensible addition on suspended floors.

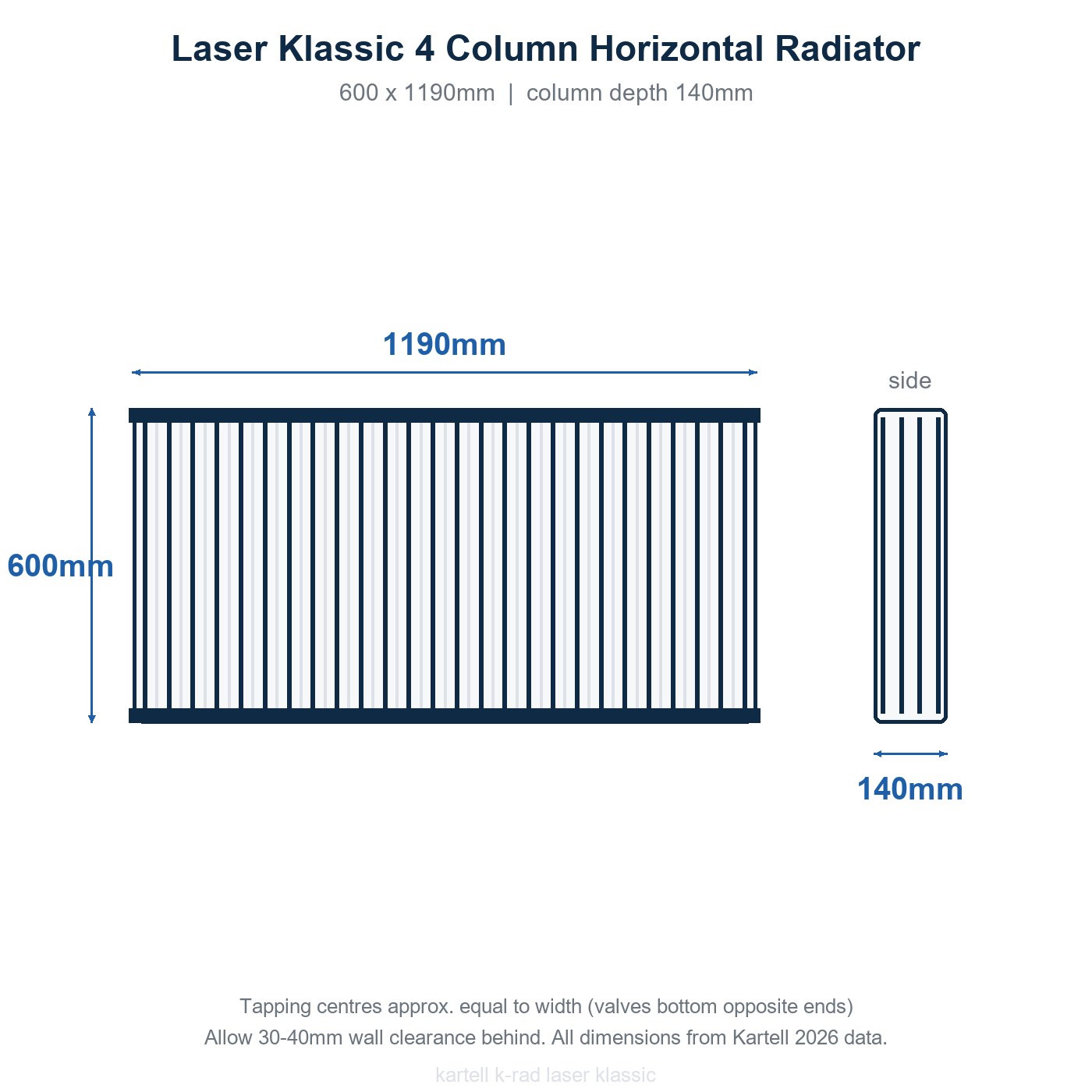

Range photography is for illustration - the number of sections varies with the size ordered. This listing is the 600 x 1190mm 4 column model with 26 sections. Dimension drawing included in the gallery.
Rooms are not heated by guesswork - match the radiator's output to the space it serves.
| Output at Delta T60 (Kartell published) | 8,710 BTU / 2,553W |
|---|---|
| Output at Delta T50 (calculated, EN442 factor) | approx. 6,872 BTU / 2,014W |
| Typical room coverage | roughly 15-21 square metres in an average UK home |
Coverage is a guide only - insulation, glazing area and ceiling height change the sums. Use a BTU calculator with your room dimensions before ordering, and size up slightly for north-facing or draughty rooms.
| Range | Kartell K-Rad Laser Klassic |
|---|---|
| Type | 4 column radiator (horizontal) |
| Height x Width | 600 x 1190mm |
| Column depth | 140mm (allow 170-180mm wall to front face) |
| Sections | 26 |
| Heat output (Delta T60) | 8,710 BTU / 2,553W |
| Heat output (Delta T50, calculated) | approx. 6,872 BTU / 2,014W |
| Finish | Matt black RAL 9004 powder coat over mild steel |
| Material | Laser-welded mild steel |
| Tapping centres | approx. 1190mm - valves at bottom opposite ends |
| Weight (empty) | 53.6kg |
| Pressure tested | 10 bar |
| Guarantee | 5 years (register with Kartell UK) |
| In the box | Radiator, wall brackets, fixing kit, instructions |
| Valves | Not included - sold separately |
Fitting follows standard UK two-pipe practice and holds no surprises for an installer.
Valves are not included. You need a pair: one wheelhead or thermostatic (TRV) valve plus one lockshield. Angled valves suit pipework rising from the floor; straight valves suit wall-fed pipe runs.
See our radiator valves range - the Kartell TRV and lockshield twin packs pair perfectly.
Orders are picked from live UK stock. Radiators are palletised or double-boxed and checked before dispatch - please inspect on arrival and note any transit damage with the driver.
