| Manufacturer Warranty | 5 Years (T&C’s Apply) |
|---|---|
| Orientation | Horizontal Orientation |
| Colour | Black |
| Height | 600 mm |
| Width | 1190 mm |
| Heat Output Watts | 2225 |
| Heat Output BTU | 7592 |
| Radiator Pipe Centres (mm) (Plus Valves) | approx. 1190 |
| Radiator Projection (mm) | 130-140 |
| Radiator Wall To Pipe Centres (mm) | 30-40 |
| Manufacturer | Kartell |
| Manufacturer Part No | BLK36001190 |
Just shy of six kilowatts of heat at Delta T60: with 7,592 BTU (2,225W) on tap from twenty-six sections, this 1190mm black three-column is the radiator large living rooms and open-plan extensions have been waiting for. One radiator where two would otherwise be plumbed, one set of valves, one uninterrupted period statement across the widest wall in the house.
The engineering matches the ambition - laser-welded mild steel columns 100mm deep, matt black RAL 9004 powder coat, 10 bar pressure testing and Kartell's five year guarantee. Brackets and fixings are included; budget for quality valves, because a radiator this visible deserves them.

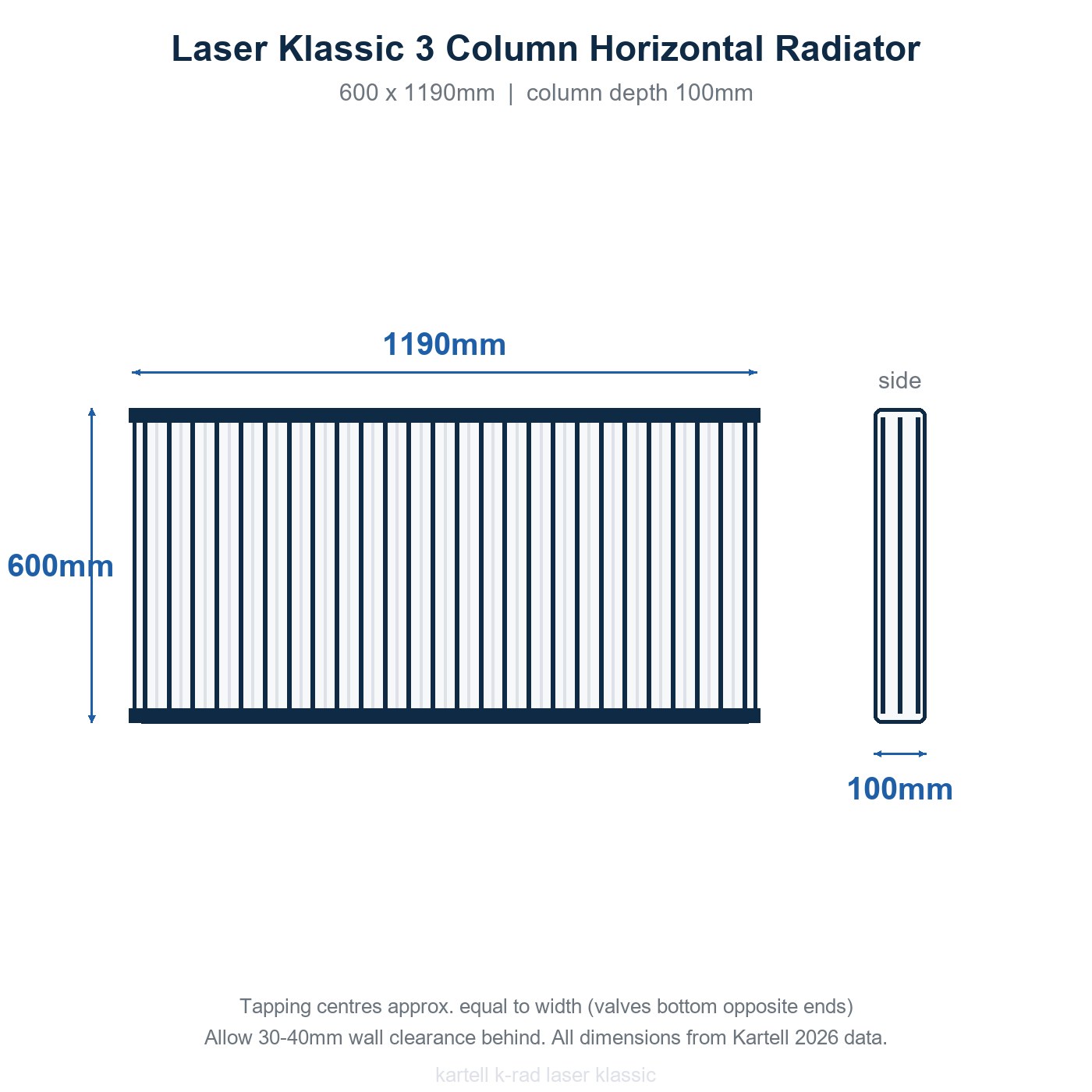

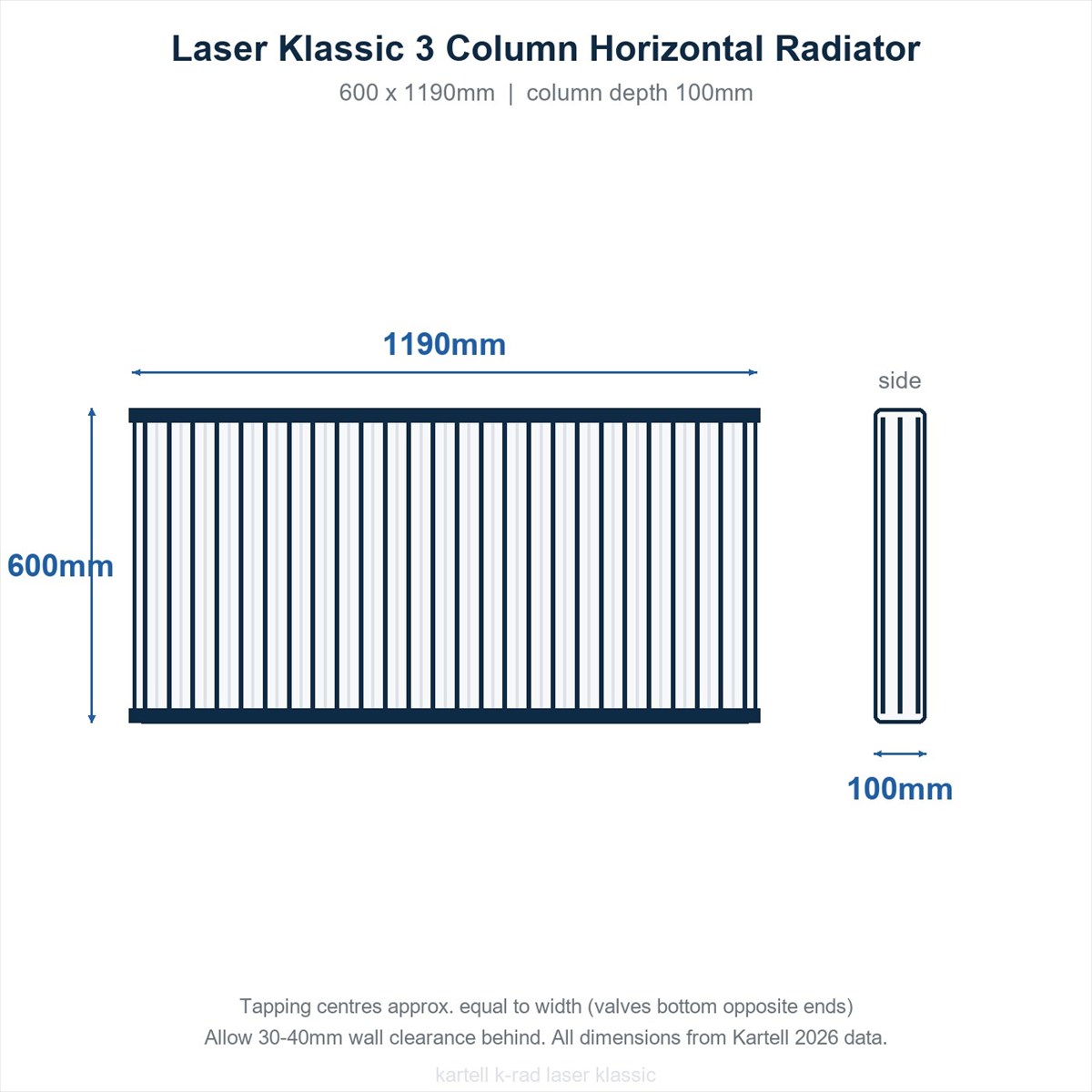

Range photography is for illustration - the number of sections varies with the size ordered. This listing is the 600 x 1190mm 3 column model with 26 sections. Dimension drawing included in the gallery.
A radiator only looks right when it heats right, so check the numbers first.
| Output at Delta T60 (Kartell published) | 7,592 BTU / 2,225W |
|---|---|
| Output at Delta T50 (calculated, EN442 factor) | approx. 5,990 BTU / 1,756W |
| Typical room coverage | roughly 14-18 square metres in an average UK home |
Coverage is a guide only - insulation, glazing area and ceiling height change the sums. Use a BTU calculator with your room dimensions before ordering, and size up slightly for north-facing or draughty rooms.
| Range | Kartell K-Rad Laser Klassic |
|---|---|
| Type | 3 column radiator (horizontal) |
| Height x Width | 600 x 1190mm |
| Column depth | 100mm (allow 130-140mm wall to front face) |
| Sections | 26 |
| Heat output (Delta T60) | 7,592 BTU / 2,225W |
| Heat output (Delta T50, calculated) | approx. 5,990 BTU / 1,756W |
| Finish | Matt black RAL 9004 powder coat over mild steel |
| Material | Laser-welded mild steel |
| Tapping centres | approx. 1190mm - valves at bottom opposite ends |
| Weight (empty) | 40.6kg |
| Pressure tested | 10 bar |
| Guarantee | 5 years (register with Kartell UK) |
| In the box | Radiator, wall brackets, fixing kit, instructions |
| Valves | Not included - sold separately |
Installation is a routine job for any plumber or competent DIYer used to hanging radiators.
Valves are not included. You need a pair: one wheelhead or thermostatic (TRV) valve plus one lockshield. Angled valves suit pipework rising from the floor; straight valves suit wall-fed pipe runs.
See our radiator valves range - the Kartell TRV and lockshield twin packs pair perfectly.
Orders are picked from live UK stock. Radiators are palletised or double-boxed and checked before dispatch - please inspect on arrival and note any transit damage with the driver.
