| Manufacturer Warranty | 5 Years (T&C’s Apply) |
|---|---|
| Orientation | Horizontal Orientation |
| Colour | Black |
| Height | 600 mm |
| Width | 1010 mm |
| Heat Output Watts | 1328 |
| Heat Output BTU | 4532 |
| Radiator Pipe Centres (mm) (Plus Valves) | approx. 1010 |
| Radiator Projection (mm) | 98-108 |
| Radiator Wall To Pipe Centres (mm) | 30-40 |
| Manufacturer | Kartell |
| Manufacturer Part No | BLK26001010 |
At just over a metre wide, this twenty-two section black column radiator is built for the main event: lounge alcoves, dining walls and knocked-through spaces that need 4,532 BTU (1,328W) at Delta T60 without resorting to a bulky double panel. The long, low two-column body keeps a slim 68mm depth, so it tucks behind sofas and sideboards where deeper radiators intrude.
The matt black RAL 9004 powder coat is factory-applied over laser-welded mild steel, then every unit is pressure tested to 10 bar before leaving Kartell. A five year guarantee, wall brackets and fixings are all included. Team it with chrome valves for contrast or black nickel for stealth.

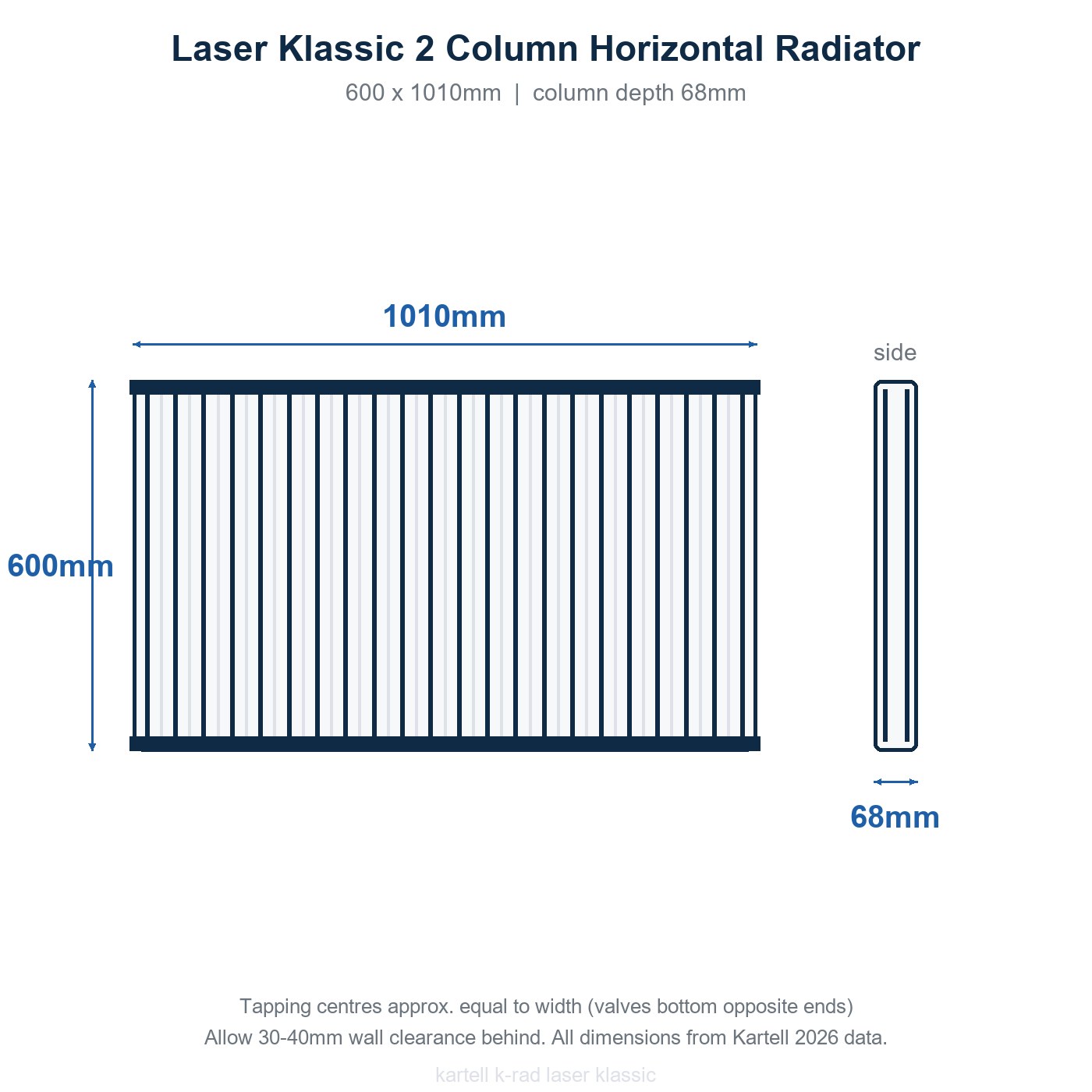

Range photography is for illustration - the number of sections varies with the size ordered. This listing is the 600 x 1010mm 2 column model with 22 sections. Dimension drawing included in the gallery.
Rooms are not heated by guesswork - match the radiator's output to the space it serves.
| Output at Delta T60 (Kartell published) | 4,532 BTU / 1,328W |
|---|---|
| Output at Delta T50 (calculated, EN442 factor) | approx. 3,576 BTU / 1,048W |
| Typical room coverage | roughly 8-11 square metres in an average UK home |
Coverage is a guide only - insulation, glazing area and ceiling height change the sums. Use a BTU calculator with your room dimensions before ordering, and size up slightly for north-facing or draughty rooms.
| Range | Kartell K-Rad Laser Klassic |
|---|---|
| Type | 2 column radiator (horizontal) |
| Height x Width | 600 x 1010mm |
| Column depth | 68mm (allow 98-108mm wall to front face) |
| Sections | 22 |
| Heat output (Delta T60) | 4,532 BTU / 1,328W |
| Heat output (Delta T50, calculated) | approx. 3,576 BTU / 1,048W |
| Finish | Matt black RAL 9004 powder coat over mild steel |
| Material | Laser-welded mild steel |
| Tapping centres | approx. 1010mm - valves at bottom opposite ends |
| Weight (empty) | 24.2kg |
| Pressure tested | 10 bar |
| Guarantee | 5 years (register with Kartell UK) |
| In the box | Radiator, wall brackets, fixing kit, instructions |
| Valves | Not included - sold separately |
Any heating engineer will treat this as a straightforward swap or first fix.
Valves are not included. You need a pair: one wheelhead or thermostatic (TRV) valve plus one lockshield. Angled valves suit pipework rising from the floor; straight valves suit wall-fed pipe runs.
See our radiator valves range - the Kartell TRV and lockshield twin packs pair perfectly.
Orders are picked from live UK stock. Radiators are palletised or double-boxed and checked before dispatch - please inspect on arrival and note any transit damage with the driver.
