| Manufacturer Warranty | 5 Years (T&C’s Apply) |
|---|---|
| Orientation | Horizontal Orientation |
| Colour | Black |
| Height | 600 mm |
| Width | 1010 mm |
| Heat Output Watts | 1883 |
| Heat Output BTU | 6424 |
| Radiator Pipe Centres (mm) (Plus Valves) | approx. 1010 |
| Radiator Projection (mm) | 130-140 |
| Radiator Wall To Pipe Centres (mm) | 30-40 |
| Manufacturer | Kartell |
| Manufacturer Part No | BLK36001010 |

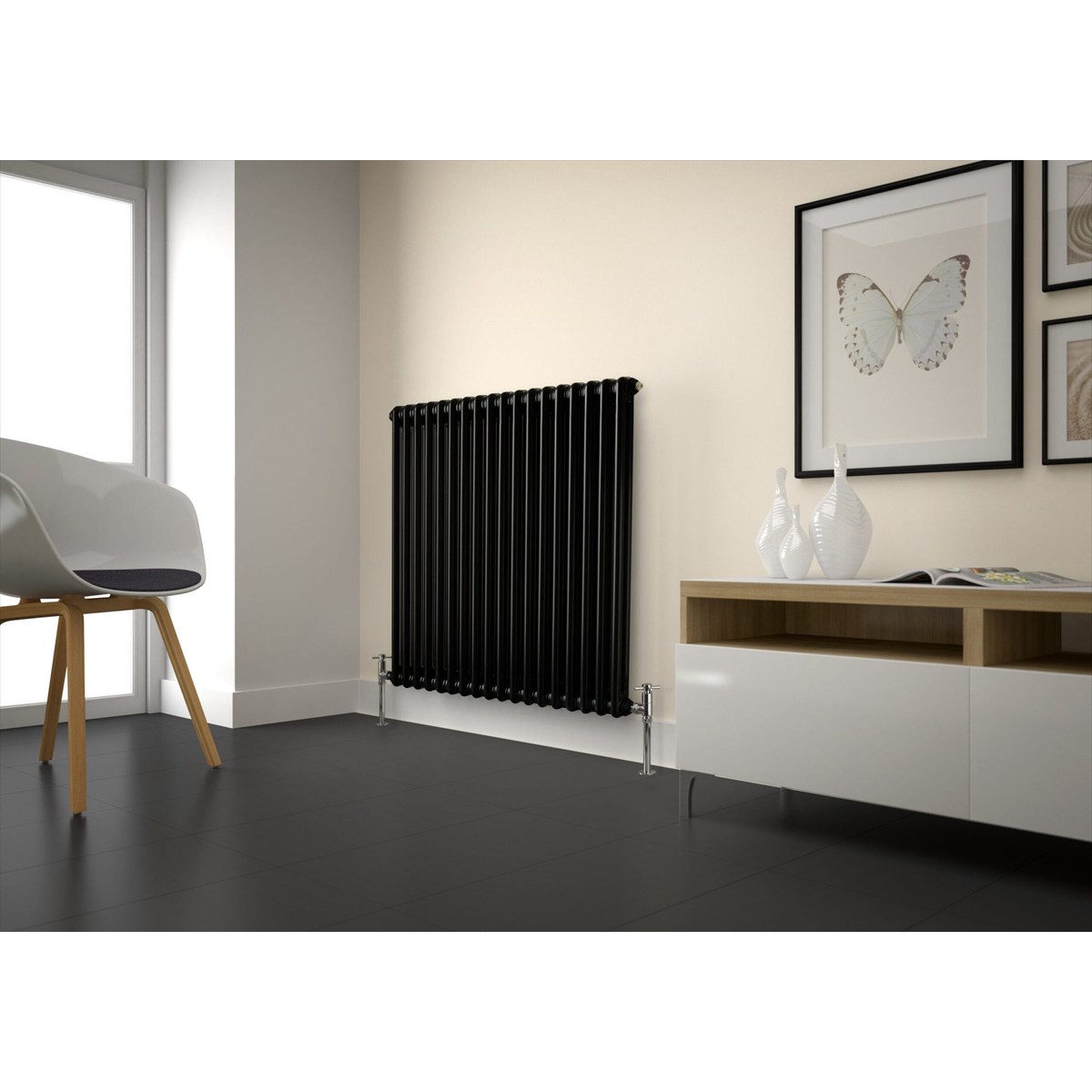

Family lounges with a run of bay-side wall are the natural home for this metre-plus black three-column. Twenty-two sections push out 6,424 BTU (1,883W) at Delta T60, the kind of output that normally forces a fan convector or an ugly type 22 panel - delivered here in a period profile that anchors the whole room. The low 600mm height keeps sight lines to the window clear.

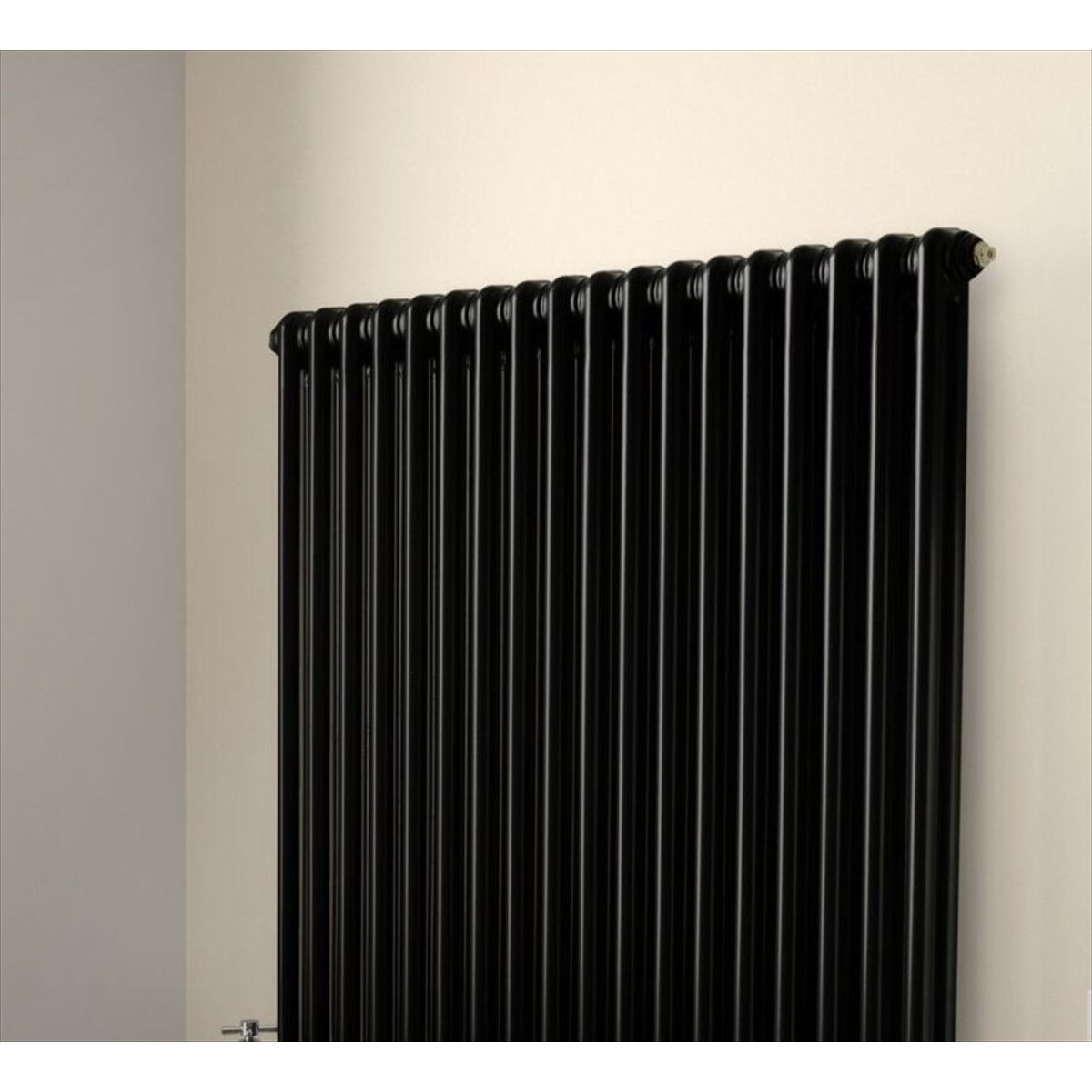

Every Laser Klassic is laser-welded from mild steel tube, finished in matt black RAL 9004 powder coat and tested to 10 bar. Kartell backs the range for five years. Wall brackets and fixings arrive in the box, and optional Kartell floor feet are available if you prefer the freestanding look on solid floors.

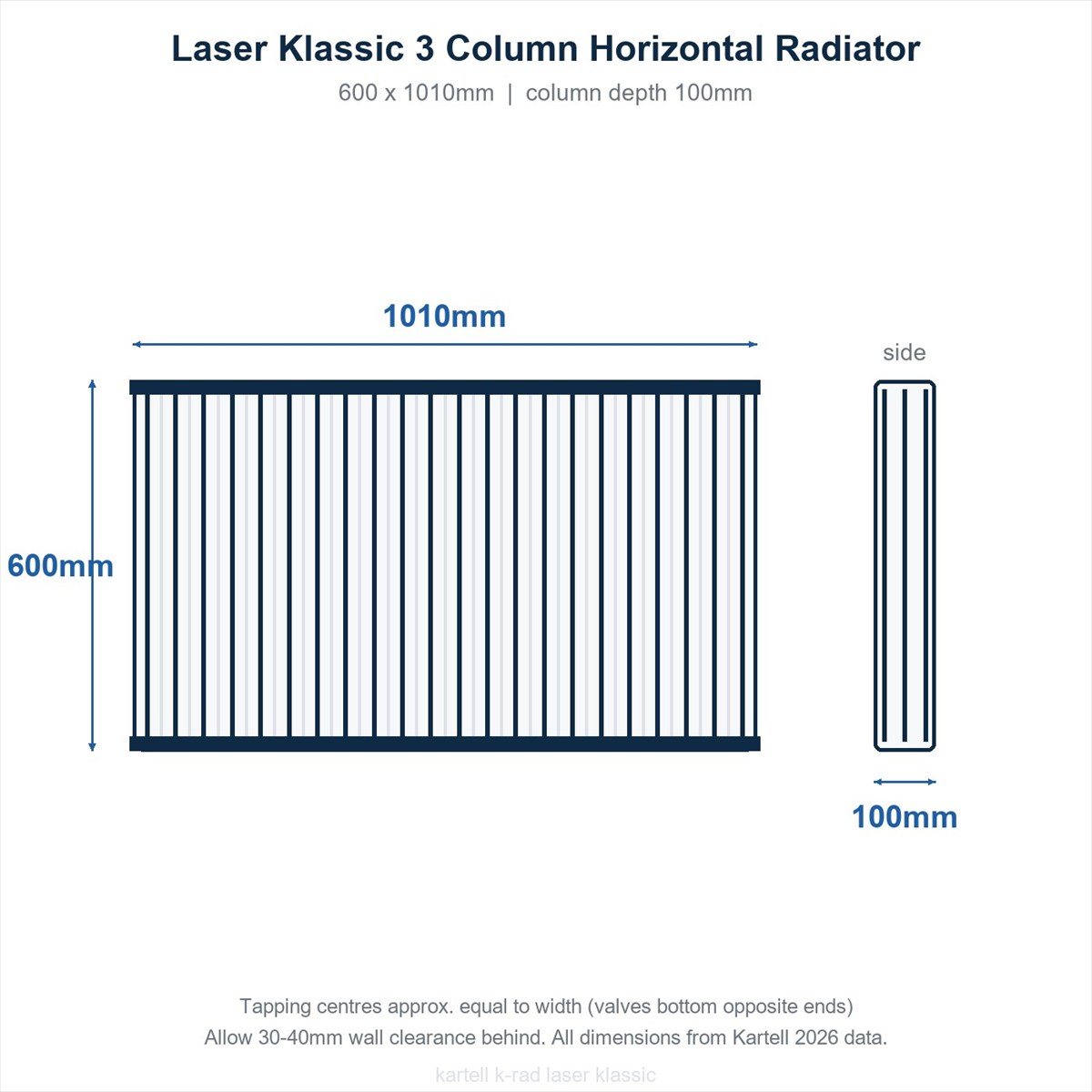

Range photography is for illustration - the number of sections varies with the size ordered. This listing is the 600 x 1010mm 3 column model with 22 sections. Dimension drawing included in the gallery.
Sizing correctly matters more than style - here is where this model fits.
| Output at Delta T60 (Kartell published) | 6,424 BTU / 1,883W |
|---|---|
| Output at Delta T50 (calculated, EN442 factor) | approx. 5,069 BTU / 1,486W |
| Typical room coverage | roughly 11-16 square metres in an average UK home |
Coverage is a guide only - insulation, glazing area and ceiling height change the sums. Use a BTU calculator with your room dimensions before ordering, and size up slightly for north-facing or draughty rooms.
| Range | Kartell K-Rad Laser Klassic |
|---|---|
| Type | 3 column radiator (horizontal) |
| Height x Width | 600 x 1010mm |
| Column depth | 100mm (allow 130-140mm wall to front face) |
| Sections | 22 |
| Heat output (Delta T60) | 6,424 BTU / 1,883W |
| Heat output (Delta T50, calculated) | approx. 5,069 BTU / 1,486W |
| Finish | Matt black RAL 9004 powder coat over mild steel |
| Material | Laser-welded mild steel |
| Tapping centres | approx. 1010mm - valves at bottom opposite ends |
| Weight (empty) | 34.1kg |
| Pressure tested | 10 bar |
| Guarantee | 5 years (register with Kartell UK) |
| In the box | Radiator, wall brackets, fixing kit, instructions |
| Valves | Not included - sold separately |
Any heating engineer will treat this as a straightforward swap or first fix.
Valves are not included. You need a pair: one wheelhead or thermostatic (TRV) valve plus one lockshield. Angled valves suit pipework rising from the floor; straight valves suit wall-fed pipe runs.
See our radiator valves range - the Kartell TRV and lockshield twin packs pair perfectly.
Orders are picked from live UK stock. Radiators are palletised or double-boxed and checked before dispatch - please inspect on arrival and note any transit damage with the driver.
