| Manufacturer Warranty | 5 Years (T&C’s Apply) |
|---|---|
| Orientation | Horizontal Orientation |
| Colour | White |
| Height | 300 mm |
| Width | 1190 mm |
| Heat Output Watts | 1,031 |
| Heat Output BTU | 3,517 |
| Radiator Pipe Centres (mm) (Plus Valves) | 1190 mm |
| Radiator Projection (mm) | 160 mm |
| Radiator Wall To Pipe Centres (mm) | 95 mm |
| Manufacturer | DUSC |
| Manufacturer Part No | DUSC-COL-4H-300X1190-W |

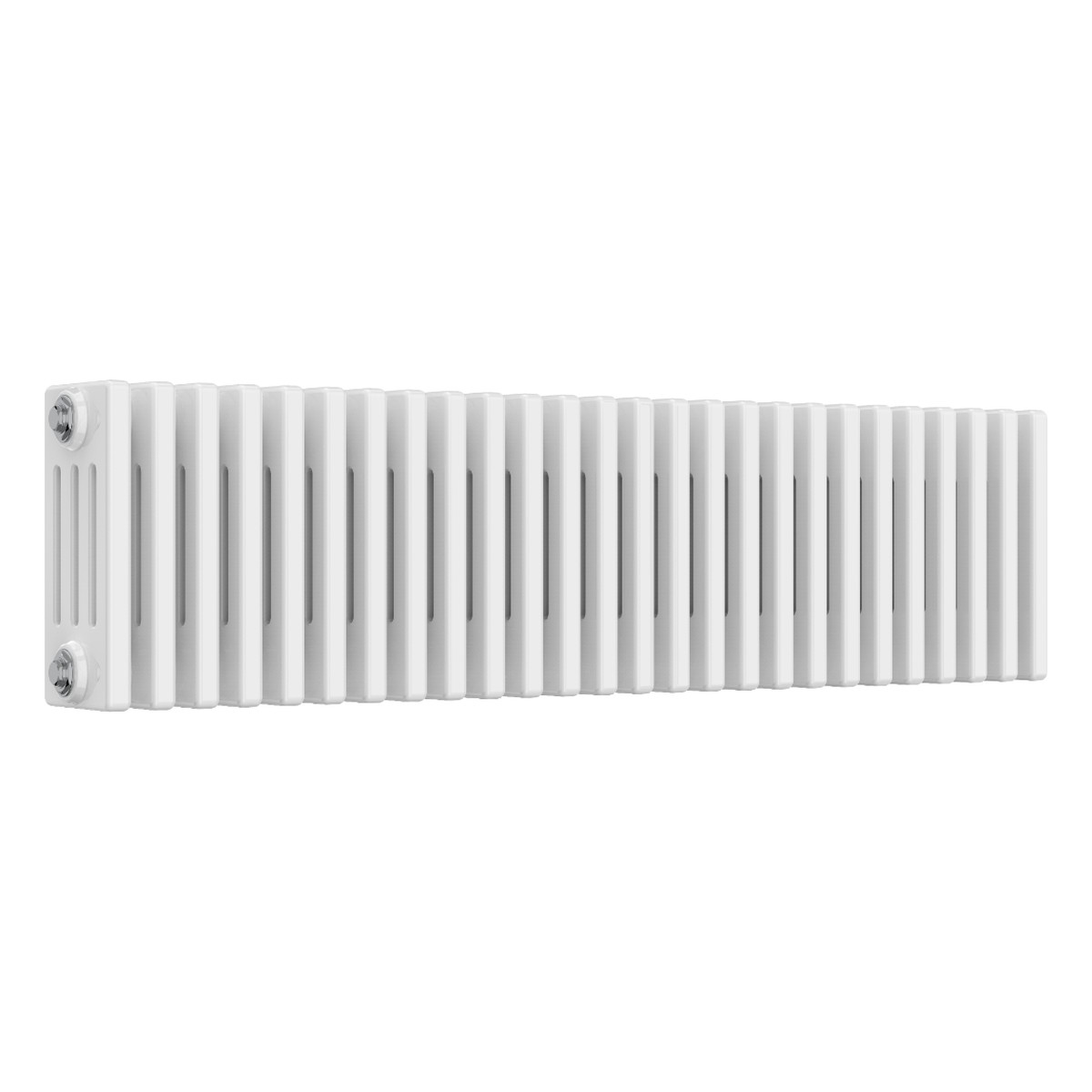

A low-level white column radiator built for the awkward wall: only 300mm high, so it slips under a low window or along a hallway skirting where a standard radiator is too tall. 1190mm of width gives it 3,517 BTU from 26 sections.
Every DUSC Columns radiator is pressed from mild steel and finished in a hard-wearing white powder coat, then backed by a 5 year guarantee. The range runs to 94 sizes, which is the whole point of it: instead of forcing your wall to suit a radiator, you pick the one that actually fits. This one measures 300mm high, 1190mm wide and sits 160mm off the wall.
Not the size you need? See the full column radiator range, or browse every white radiator we stock.
Room photography shows the range style - section count varies by size, so refer to the specification table for this exact model.
Match the radiator to the room rather than the gap in the wall. These are the published outputs for this size:
| Heat output at Delta T50 | 3,517 BTU / 1,031 watts |
|---|---|
| Typical room coverage | roughly 6 to 9 square metres in an average UK home |
| Sections | 26 |
Use the BTU calculator on this page with your room's real dimensions before ordering, and size up slightly for north facing or draughty rooms.
Coverage is a guide only - insulation, glazing area and ceiling height all change the sums.
| Range | DUSC Columns |
|---|---|
| Type | 4 column radiator (horizontal) |
| Height x Width | 300 x 1190mm |
| Projection from wall | 160mm |
| Sections | 26 |
| Heat output (Delta T50) | 3,517 BTU / 1,031 watts |
| Pipe centres | 1190mm |
| Wall to pipe centres | 95mm |
| Finish | White powder coat over mild steel |
| Material | Mild steel |
| Weight (empty) | 34.59kg |
| Guarantee | 5 years |
| In the box | Radiator, wall brackets, fixing kit, instructions |
| Valves | Not included - sold separately |
Fitting is a routine job for any plumber or a confident DIY installer.
Matching 4 column feet are available with this radiator in white, supplied as a pair and finished to match. They stand 140mm high and give the radiator the look of a traditional floor standing cast iron column radiator. Add them from the dropdown above.
Valves are not included - you need a pair: one wheelhead or thermostatic valve and one lockshield. Browse our radiator valves and accessories, including thermostatic radiator valves.
