| Manufacturer Warranty | 5 Years (T&C’s Apply) |
|---|---|
| Orientation | Vertical Orientation |
| Colour | White |
| Height | 1800 mm |
| Width | 335 mm |
| Heat Output Watts | 1,180 |
| Heat Output BTU | 4,025 |
| Radiator Pipe Centres (mm) (Plus Valves) | 335 mm |
| Radiator Projection (mm) | 118 mm |
| Radiator Wall To Pipe Centres (mm) | 68 mm |
| Manufacturer | DUSC |
| Manufacturer Part No | DUSC-COL-3V-1800X335-W |

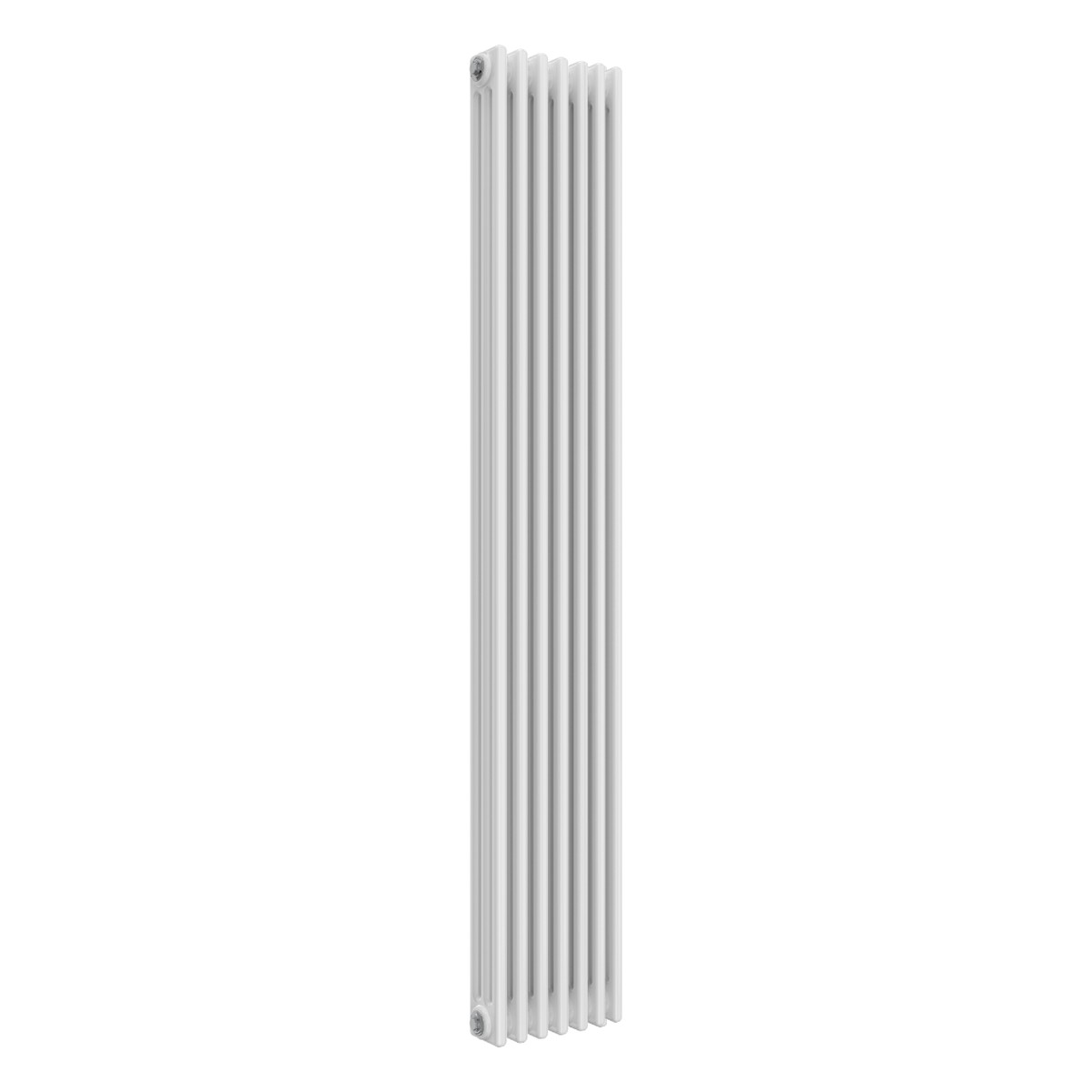

Where wall space is tight but the ceiling is generous, this is the column radiator that earns its keep. At just 335mm wide and a full 1800mm tall it slots into the dead strip beside a doorway or between two windows, and still puts out 4,025 BTU from its 7 3 column sections.
Every DUSC Columns radiator is pressed from mild steel and finished in a hard-wearing white powder coat, then backed by a 5 year guarantee. The range runs to 94 sizes, which is the whole point of it: instead of forcing your wall to suit a radiator, you pick the one that actually fits. This one measures 1800mm high, 335mm wide and sits 118mm off the wall.
Not the size you need? See the full column radiator range, or browse every white radiator we stock.
Room photography shows the range style - section count varies by size, so refer to the specification table for this exact model.
Match the radiator to the room rather than the gap in the wall. These are the published outputs for this size:
| Heat output at Delta T50 | 4,025 BTU / 1,180 watts |
|---|---|
| Typical room coverage | roughly 7 to 10 square metres in an average UK home |
| Sections | 7 |
Use the BTU calculator on this page with your room's real dimensions before ordering, and size up slightly for north facing or draughty rooms.
Coverage is a guide only - insulation, glazing area and ceiling height all change the sums.
| Range | DUSC Columns |
|---|---|
| Type | 3 column radiator (vertical) |
| Height x Width | 1800 x 335mm |
| Projection from wall | 118mm |
| Sections | 7 |
| Heat output (Delta T50) | 4,025 BTU / 1,180 watts |
| Pipe centres | 335mm |
| Wall to pipe centres | 68mm |
| Finish | White powder coat over mild steel |
| Material | Mild steel |
| Weight (empty) | 33.31kg |
| Guarantee | 5 years |
| In the box | Radiator, wall brackets, fixing kit, instructions |
| Valves | Not included - sold separately |
Fitting is a routine job for any plumber or a confident DIY installer.
This is a wall mounted vertical radiator and does not take floor feet. It fixes on the brackets supplied.
Valves are not included - you need a pair: one wheelhead or thermostatic valve and one lockshield. Browse our radiator valves and accessories, including thermostatic radiator valves.
