Home > Fittings & Accessories > Radiator Valves > Kartell K-Rad Design Corner TRV Twin Pack — Textured Grey GY-TRV101C

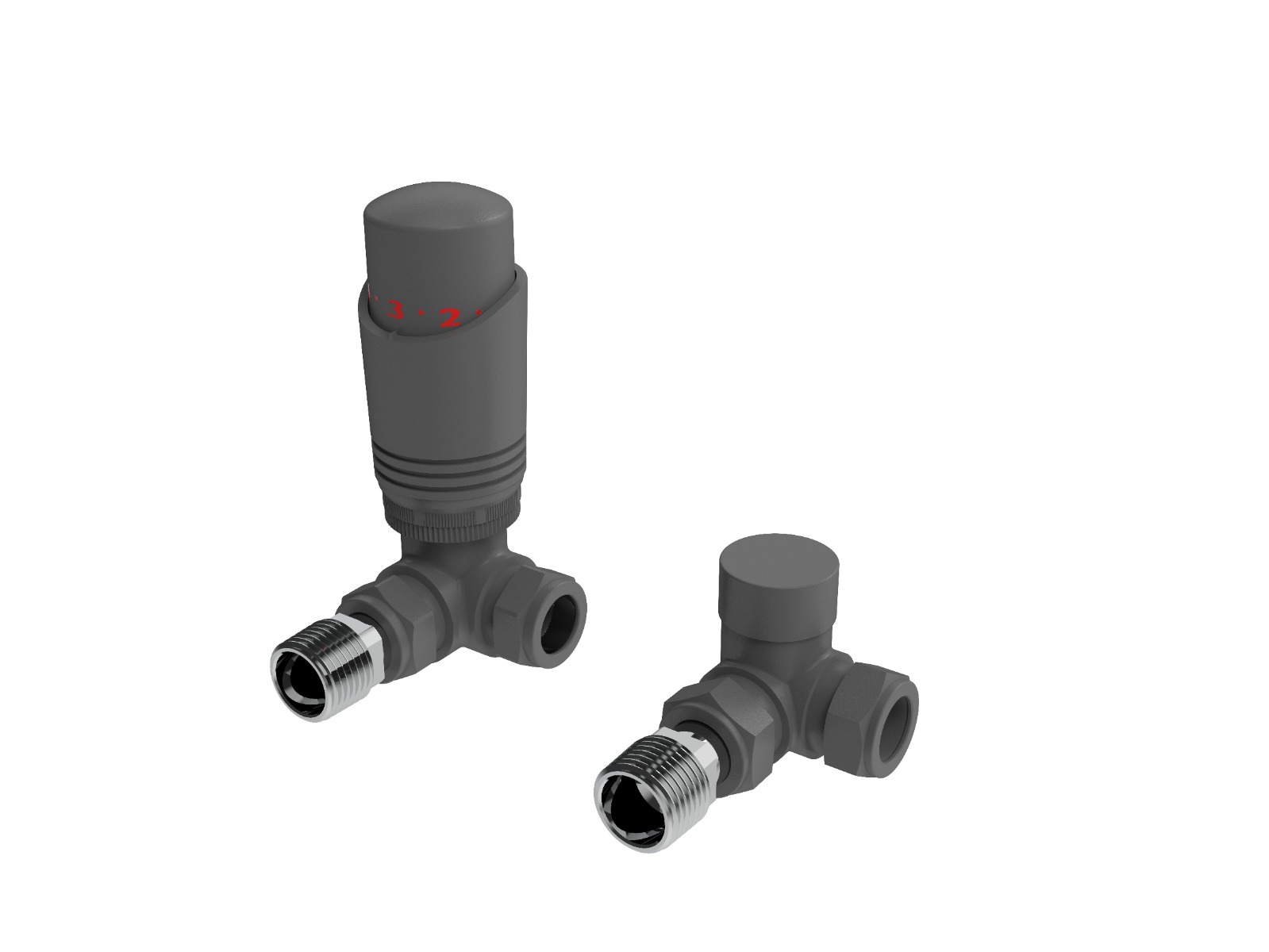

Thermostatic radiator valve twin pack for pipework through the wall. Textured grey matt finish. Brass body. 6 heat settings plus frost protection. Bi-directional. Includes TRV head and matching lockshield valve. 5-year Kartell UK guarantee.
The textured grey matt finish is an exact match for Kartell K-Rad textured grey radiators, including the Aspen, Boston, and Allegro ranges. Pair for a seamless, coordinated look.
Corner valves are designed for pipes that exit horizontally through the wall directly behind your radiator. The valve body turns 90 degrees to connect cleanly to the radiator tapping.
Rotate the TRV head through 6 clearly marked heat settings to dial in your exact comfort level. A dedicated frost protection setting keeps your room above freezing even in your absence.
Can be fitted on either the flow or return pipe, giving your installer full flexibility regardless of which side your pipes exit the wall.
Manufactured from high-quality brass for durability, corrosion resistance, and a long service life. Engineered to perform reliably in sealed central heating systems.
Contains both the thermostatic TRV head and the matching lockshield valve. One purchase, nothing extra needed to complete your radiator installation.
| Specification | Detail |
|---|---|
| Product Name | Kartell K-Rad Design Twin Pack TRV Corner — Textured Grey |
| SKU / Product Code | GY-TRV101C |
| EAN / GTIN-13 | 5055681462161 |
| Valve Type | Corner (pipework through wall) |
| Pack Contents | 1 x TRV Thermostatic Head + 1 x Matching Lockshield Valve |
| Colour / Finish | Textured Grey (Matt) |
| Material | Brass |
| Style | Modern / Contemporary |
| Heat Settings | 6 settings + frost protection |
| Flow Direction | Bi-directional (flow or return) |
| Pipework Position | Through wall (horizontal pipe from wall) |
| Connection Size | 15mm compression |
| Radiator Connection | ½" BSP |
| Product Weight | 0.5 kg |
| Manufacturer Guarantee | 5 Years — Kartell UK |
| Product | Type | Finish |
|---|---|---|
| GY-TRV101C THIS PRODUCT | Corner | Textured Grey Matt |
| GY-TRV301A | Angled | Textured Grey Matt |
| GY-TRV201S | Straight | Textured Grey Matt |
This is the most common question when buying radiator valves. The answer depends entirely on where your supply pipes exit — the wall or the floor.
Pipes come through the wall horizontally, connecting to the side or bottom tapping of the radiator. The valve body turns 90° to make the connection. Most common in newer builds and refurbishments where pipes are concealed in the wall.
Pipes rise vertically from the floor and connect to the bottom side tapping of the radiator. The valve body angles at 90°. The most common valve type in older UK homes where pipes run under floorboards.
Pipes rise directly from the floor and connect straight into the bottom tapping of the radiator in a vertical line. Less common but sometimes used in modern installations with underfloor pipe runs.
Professional installation by a qualified plumber is recommended for all radiator valve replacements, particularly on sealed central heating systems.
| Valve Type | Corner — for pipework through wall |
| Connection Size (Pipe) | 15mm compression fitting |
| Radiator Connection | ½" BSP male thread |
| Flow Direction | Bi-directional — fit on flow or return |
| TRV Head Rotation | Rotates 360° for wall or floor pipe access |
| Compatible Systems | Standard sealed and open-vented central heating systems |
| Compatible Radiators | All standard radiators and heated towel rails with ½" BSP tappings |
| Pack Contents | 1 x TRV thermostatic head, 1 x lockshield valve, compression fittings |
Need a different finish to match your radiator? Browse our full range of Kartell K-Rad Design TRV Twin Packs below.
| Finish | Corner | Angled | Straight |
|---|---|---|---|
| Textured Grey (Matt) THIS PRODUCT | GY-TRV101C | GY-TRV301A | GY-TRV201S |
| Matt Black | Available | Available | Available |
| Gloss White | Available | Available | Available |
| Chrome | Available | Available | Available |
