| Manufacturer | Kartell UK Ltd |
|---|---|
| Manufacturer Warranty | 5 Years (T&C’s Apply) |
| Weight | 21.83 |
| Orientation | Horizontal Orientation |
| Panel Type | Double Panel Radiator |
| Colour | White |
| Height | 600 mm |
| Width | 960 mm |
| Heat Output BTU | 5241 |
| Radiator Pipe Centres (mm) (Plus Valves) | 960 |
| Radiator Wall To Pipe Centres (mm) | 60 |
| Radiator Colour | White |
| Model | Aspen White Horizontal Double |
| Brand | K-Rad Designer Range |
| Fuel Type | Central Heating |
| Width (mm) | 960 |
| Depth (mm) | 79 |
| Height (mm) | 600 |
| Manufacturer Part No | ASP60-97DW |
Home > Radiators > Designer Radiators > Horizontal Radiators > Kartell K-Rad Aspen Horizontal Radiator 600 x 960mm White Double — 5,241 BTU

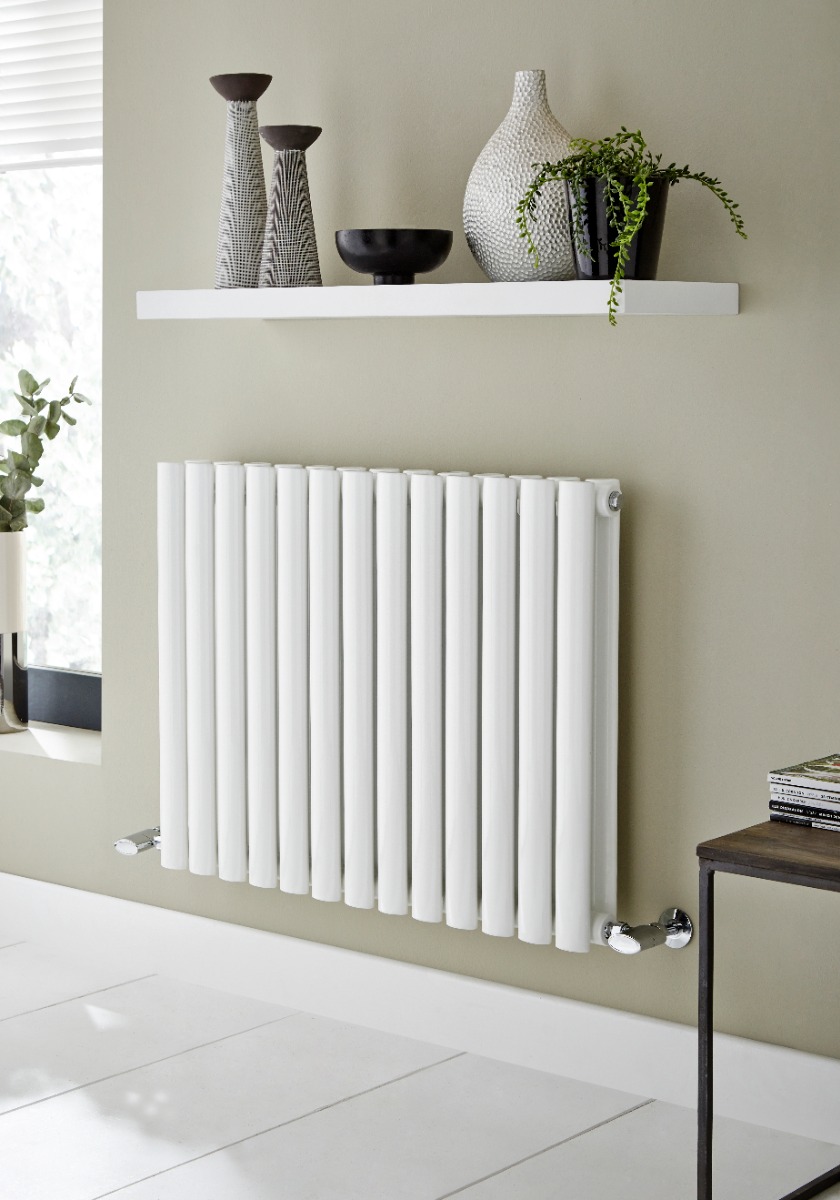

A double panel horizontal designer radiator in gloss white. 600mm high, 960mm wide, 79mm deep, delivering 5,241 BTU at Delta T60. 960mm pipe centres. 5 year Kartell UK guarantee. All fixings included.
Verified from Kartell UK directly. 5000-6999 BTU — suitable for medium rooms. Use the BTU Calculator tab to confirm.
960mm pipe centres, 51mm wall to pipe centres. Mid-width suits most standard rooms. 79mm double panel depth.
The double panel delivers significantly more heat than the same-size single panel from the same wall width. The 79mm depth is only 24mm more than the single.
Classic gloss white suits all interior styles. Matches standard UK radiator valves for a seamless finish. Compatible with most central heating systems.
Greater surface area than round tubes for more efficient heat transfer. Premium aesthetic over standard flat panel radiators.
Weighing 21.83kg. All wall brackets, fixing screws, wall plugs, air vent and blanking plug included. Pressure tested to 7.8 bar. Registered with Kartell UK.
| Specification | Detail |
|---|---|
| Product Name | Kartell K-Rad Aspen Horizontal Radiator 600 x 960mm White Double — 5,241 BTU |
| SKU / Kartell Code | ASP60-97DW |
| EAN / GTIN | 5055681407797 |
| Height | 600mm |
| Width | 960mm |
| Depth (Wall Projection) | 79mm |
| Orientation | Horizontal |
| Colour / Finish | Gloss White |
| Material | Mild Steel |
| Style | Double Panel — Oval Tube Designer |
| BTU Output (Delta T60) | 5,241 BTU |
| Watt Output (Delta T60) | 1,536W |
| Fuel Type | Central heating — gas, oil, or electric |
| Pipe Centres (Tapping Centres) | 960mm |
| Wall to Pipe Centres | 51mm |
| Valve Connection | 1/2 inch BSP |
| Empty Weight | 21.83 kg |
| Max Working Pressure | 7.8 bar |
| Fixings Supplied | Yes — all fixings included |
| Manufacturer Guarantee | 5 years — Kartell UK |
| Valves | Not included — sold separately (see Valves tab) |
Understanding Delta T60: All BTU figures quoted at Delta T60 — the European standard assuming mean water temperature 60°C above room temperature.
Professional installation by a Gas Safe registered engineer is strongly recommended for all connections to gas central heating systems.
| Pipe Centres (Tapping Centres) | 960mm |
| Wall to Pipe Centres | 51mm |
| Wall Projection | 79mm |
| Height | 600mm |
| Valve Connection | 1/2 inch BSP — angled, straight, or corner valves |
| Max Working Pressure | 7.8 bar |
| Compatible Systems | Sealed and open vented — gas, oil, electric, heat pump |
| Fixings Supplied | Yes — wall brackets, screws, plugs, air vent, blanking plug |
Valves are not included and must be purchased separately. For this gloss white radiator we recommend White TRV valves. Select your pipework type below.
When to use: Pipework rises vertically from the floor to the side connections. Most common UK installation type.
When to use: Pipework rises directly from the floor in a straight vertical line to the bottom tappings.
When to use: Pipework comes horizontally out of the wall to the side connections of the radiator.
Looking for a 600mm high 960mm wide double white horizontal radiator? The Kartell K-Rad Aspen Horizontal Radiator 600 x 960mm White Double — 5,241 BTU (ASP60-97DW) is confirmed from Kartell UK. Also found via: 600 x 960mm double white horizontal radiator UK, 600 x 970mm double white radiator, Kartell Aspen 960 double white horizontal, ASP60-97DW, 5,241 BTU horizontal double white radiator, double panel white horizontal radiator 600mm high 960mm wide, EAN 5055681407797.
