| Manufacturer | Kartell UK Ltd |
|---|---|
| Manufacturer Warranty | 5 Years (T&C’s Apply) |
| Weight | 8.33 |
| Orientation | Horizontal Orientation |
| Panel Type | Double Panel Radiator |
| Height | 600 mm |
| Width | 360 mm |
| Heat Output BTU | 1965 |
| Radiator Pipe Centres (mm) (Plus Valves) | 360 |
| Radiator Wall To Pipe Centres (mm) | 60 |
| Radiator Colour | Textured Grey |
| Model | Aspen Textured Grey Horizontal Double |
| Brand | K-Rad Designer Range |
| Fuel Type | Central Heating |
| Width (mm) | 360 |
| Product Type | Aspen Textured Grey Horizontal Double |
| Depth (mm) | 79 |
| Height (mm) | 600 |
| Manufacturer Part No | ASP60-37DA |
Home > Radiators > Designer Radiators > Horizontal Radiators > KRAD Aspen 600 x 360mm Textured Grey Double

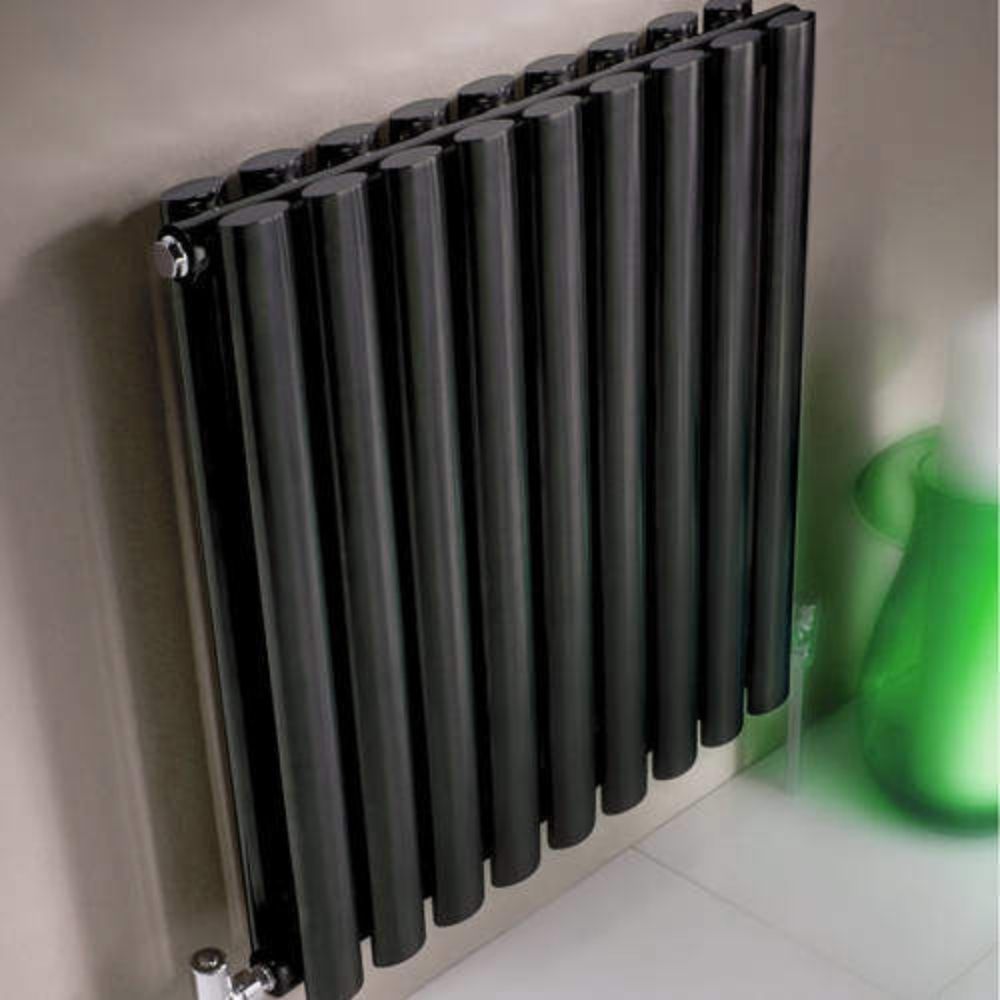

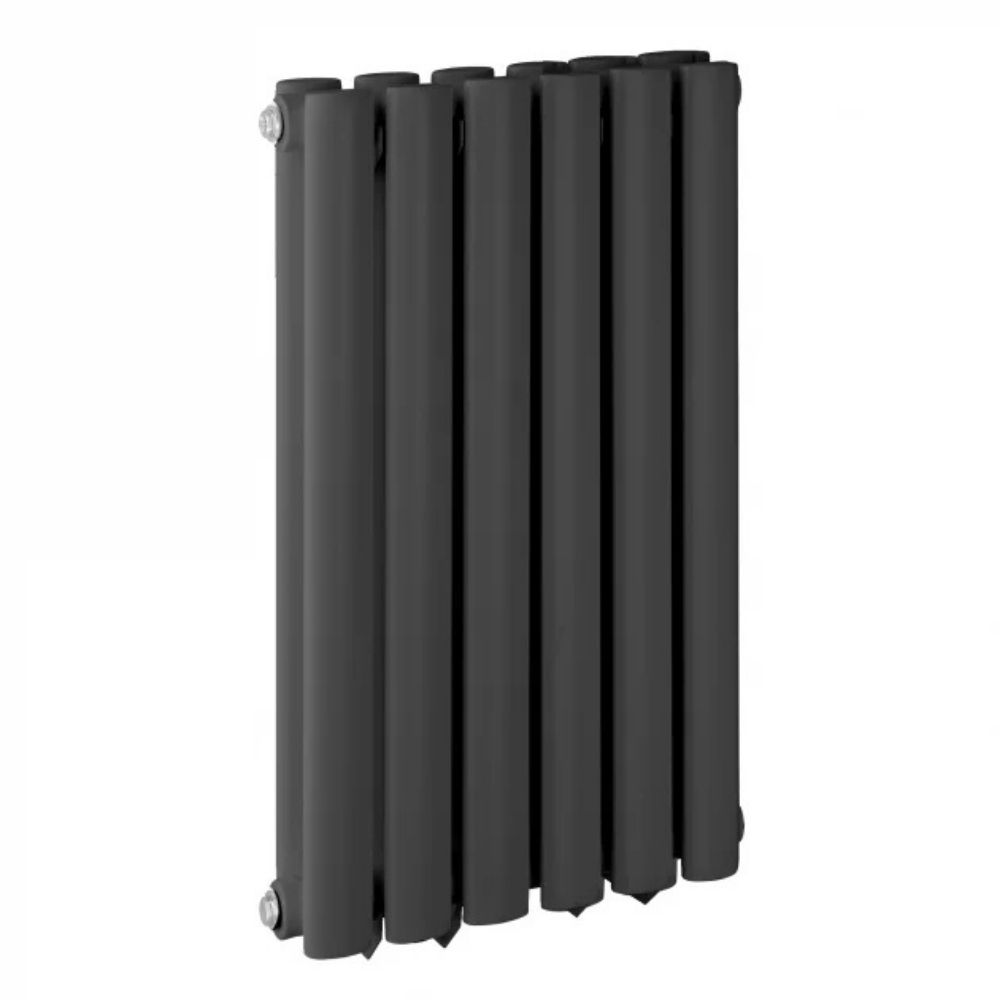

Tight on wall space but still need meaningful heat output? The Kartell K-Rad Aspen 600 x 360mm Textured Grey Double Horizontal Radiator is engineered for exactly t.
Tight on wall space but still need meaningful heat output? The Kartell K-Rad Aspen 600 x 360mm Textured Grey Double Horizontal Radiator is engineered for exactly this situation. At just 360mm wide it fits narrow wall sections — beside doorframes, between fitted cupboards, or in a cloakroom return — yet the double panel construction extracts 1,965 BTU (576W) from that compact footprint. This is not a compromise radiator; it is a precision heating solution for spaces where every millimetre of wall matters. SKU: ASP60-37DA.
At 360mm wide this radiator slots into wall sections that are too narrow for any other size — beside door architraves, in hallway returns, between fitted furniture and window reveals.
Despite the narrow 360mm span, the double panel construction delivers 1,965 BTU — enough to heat a cloakroom, WC or small en-suite without needing a separate electric towel rail.
There is no reason a cloakroom or utility room should have a plain white radiator when the rest of the house is styled. The textured grey finish brings design consistency throughout the property.
At just 8.33kg this is one of the lightest radiators in the Aspen textured grey range — straightforward to handle, position and fix to the wall without specialist equipment.
The 600mm height combined with the 360mm width gives maximum flexibility — it can sit under short window sections or on wall sections where taller radiators would block switches or sockets.
Full manufacturer guarantee applies regardless of size — even the smallest radiator in the range is fully protected for 5 years from date of purchase.

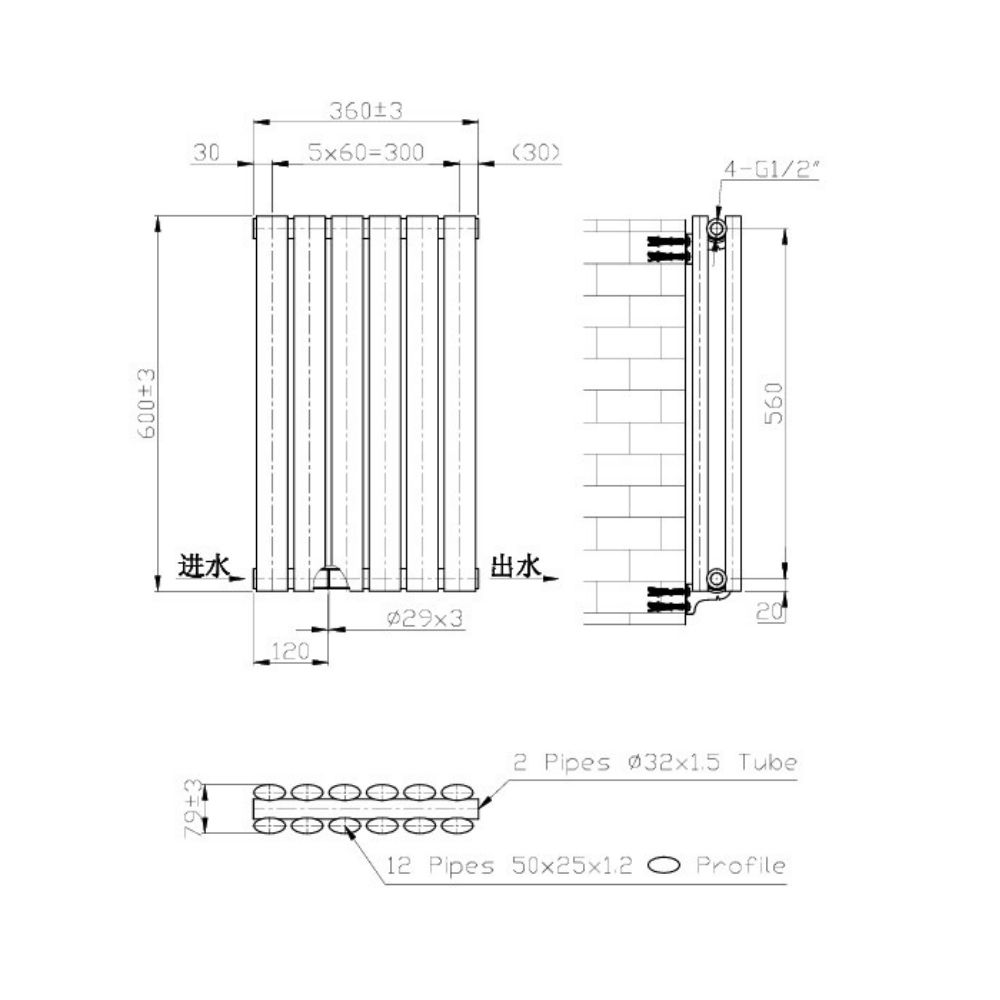

| Specification | Detail |
|---|---|
| Product Name | Kartell K-Rad Aspen 600 x 360mm Textured Grey Double Horizontal Designer Radiator |
| SKU / Kartell Code | ASP60-37DA |
| EAN / GTIN-13 | 5055681428730 |
| Height | 600mm |
| Width | 360mm |
| Depth | 79mm (double panel) |
| Weight | 8.33kg |
| Orientation | Horizontal |
| Colour / Finish | Textured Grey (Matt Powder Coat) |
| Material | Mild Steel |
| Panel Type | Double Panel — Designer Oval Tube |
| BTU Output (Delta T60) | 1,965 BTU |
| Watt Output (Delta T60) | 576W |
| Fuel Type | Central heating — gas, oil, or compatible electric |
| Pipe Centres | 360mm |
| Wall to Pipe Centres | 60mm |
| Valve Connection | 1/2 inch BSP |
| Max Working Pressure | 7.8 bar |
| Fixings Supplied | Yes — all wall fixings included |
| Manufacturer Guarantee | 5 years — Kartell UK |
| Valves Included | Not included — sold separately (see Valves tab) |
All outputs quoted at Delta T60 — the European standard assuming 80°C flow / 60°C return in a 20°C room.
Watch our step-by-step guide. All central heating connections must be made by a qualified heating engineer.
| Pipe Centres | 360mm |
| Wall to Pipe Centres | 60mm |
| Wall Projection | 79mm |
| Valve Connection | 1/2 inch BSP — angled, straight or corner at either end |
| Max Working Pressure | 7.8 bar |
| Compatible Systems | Sealed and open vented — gas, oil, electric |
| Fixings Supplied | Yes — wall brackets, screws, plugs, air vent, blanking plug |
Valves are not included and must be purchased separately. We recommend matching Kartell K-Design Textured Grey TRV twin packs to complement this radiator perfectly. Select your pipework type below.
When to use: Pipework rises vertically from the floor at either end and connects to the bottom tappings. This is the most common UK installation for horizontal radiators.
When to use: Pipework comes straight up through the floor directly into the bottom tapping at either end of the radiator.
When to use: Pipework comes horizontally out of the wall at either end and connects to the side tappings of the radiator valves.
ⓘ Unsure which type? Call 01282 429061 Monday to Friday and our team will advise.
For a standard UK downstairs cloakroom or WC of 2–4m² with average insulation, 1,965 BTU is more than sufficient. Use the BTU Calculator above with the Bathroom/En-suite room type to confirm for your specific space.
Quite possibly. The radiator body is 360mm wide — you need approximately 380–400mm of clear wall width to allow for brackets and valve clearance on each side. Always measure your available wall section before ordering.
In a compact space like a cloakroom, the extra 24mm of depth the double panel adds is rarely noticeable, but the additional BTU output (1,965 vs 1,054) makes a significant difference to heating performance. We generally recommend the double panel for small rooms where heating efficiency matters most.
Pipe centres are 360mm with wall to pipe centres at 60mm. This is a narrow spacing — confirm your existing pipework positions carefully before ordering, particularly in cloakrooms where pipes are often close together.
In most cloakrooms and WCs the pipework rises from the floor — in which case angled valves are the correct choice. If your pipes come out of the wall horizontally, you need corner valves. See the Valves tab for full guidance.
Yes — for cloakrooms, downstairs WCs and small en-suites, 1,965 BTU from this double panel model is typically sufficient as the sole heat source. Confirm using the BTU Calculator with your room dimensions.
Searching for a compact textured grey horizontal radiator for a cloakroom or tight wall section? The Kartell K-Rad Aspen 600 x 360mm Textured Grey Double Horizontal Radiator (ASP60-37DA) delivers 1,965 BTU from a double panel in just 360mm of wall width — the ideal heating solution for cloakrooms, WCs and narrow hallway sections. Search terms: ASP60-37DA, 360mm textured grey double horizontal radiator, compact textured grey radiator 360mm, 1965 BTU small double panel horizontal radiator, cloakroom textured grey radiator, Kartell Aspen 600 x 360 textured grey double.
