| Manufacturer | Kartell UK Ltd |
|---|---|
| Manufacturer Warranty | 5 Years (T&C’s Apply) |
| Weight | 107 |
| Orientation | Horizontal Orientation |
| Panel Type | Double Panel Radiator |
| Height | 600 mm |
| Width | 1140 mm |
| Heat Output BTU | 6223 |
| Radiator Pipe Centres (mm) (Plus Valves) | 1140 |
| Radiator Wall To Pipe Centres (mm) | 60 |
| Radiator Colour | Textured Grey |
| Model | Aspen Textured Grey Horizontal Double |
| Brand | K-Rad Designer Range |
| Fuel Type | Central Heating |
| Width (mm) | 1140 |
| Depth (mm) | 79 |
| Height (mm) | 600 |
| Manufacturer Part No | ASP60-115DA |
Home > Radiators > Designer Radiators > Horizontal Radiators > KRAD Aspen 600 x 1140mm Textured Grey Double

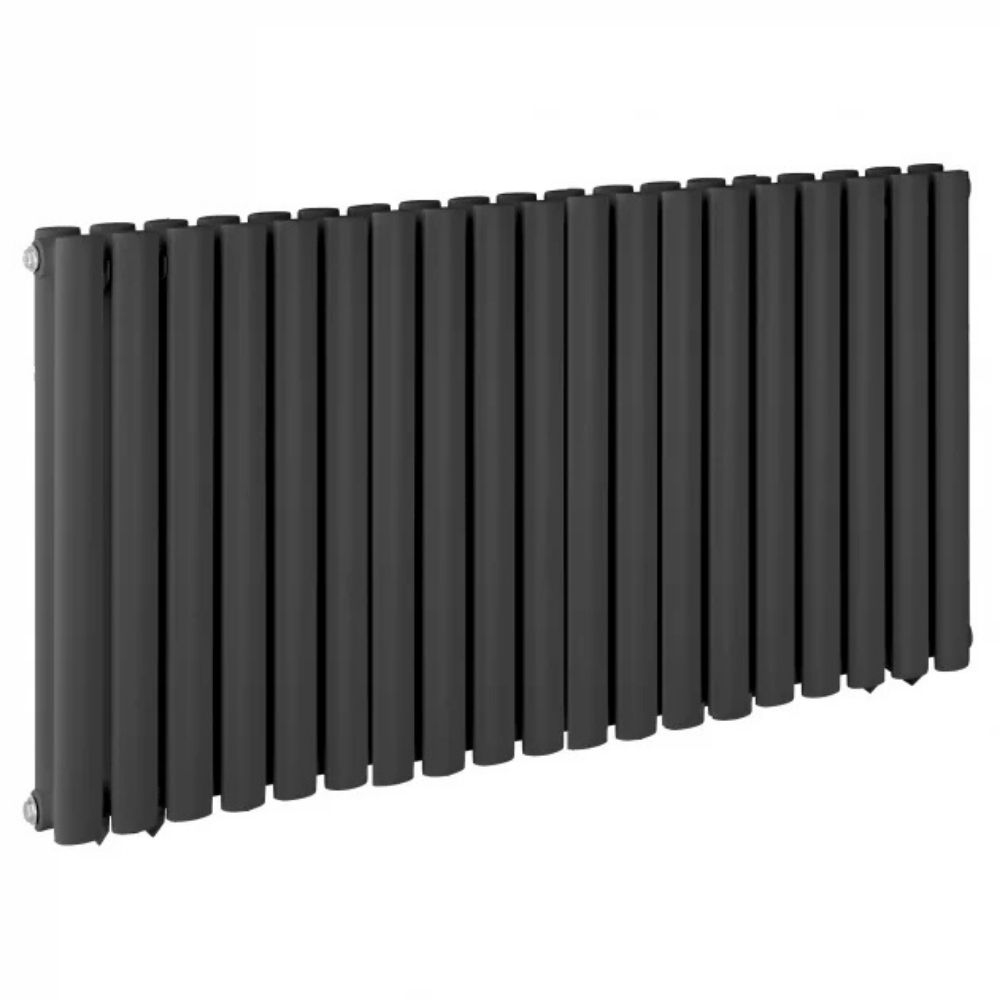

If you have an ageing standard radiator sitting under your living room window, the Kartell K-Rad Aspen 600 x 1140mm Textured Grey Double Horizontal Radiator is its.
If you have an ageing standard radiator sitting under your living room window, the Kartell K-Rad Aspen 600 x 1140mm Textured Grey Double Horizontal Radiator is its natural upgrade. It matches the footprint of most older 1100–1200mm radiators exactly, so it drops straight into existing pipework with minimal disruption. The double panel construction delivers a confident 6,223 BTU (1,824W) — enough to heat a substantial living room or open hallway as a standalone heat source — while the deep matt textured grey finish transforms what was once a purely functional fitting into a design statement. SKU: ASP60-115DA.
Pipe centres sit at 1140mm — a common dimension on older UK installations — making this a straight swap with no floor pipe alterations required.
Two panels of oval tube steel heat the room faster than a single panel equivalent, reducing boiler run times and improving energy efficiency.
The deep matt powder coat resists fingerprints and everyday knocks while coordinating beautifully with anthracite window frames and contemporary grey kitchen units.
At 600mm high it clears standard sill heights and complies with building regulations for sub-window installation, keeping natural light unobstructed.
All manufacturing defects covered for 5 full years from purchase. Kartell UK is one of the UK’s most established heating brands with a strong warranty record.
Wall brackets, screws, rawl plugs, air vent and blanking plug all supplied in the box — no additional fixing kit required.
| Specification | Detail |
|---|---|
| Product Name | Kartell K-Rad Aspen 600 x 1140mm Textured Grey Double Horizontal Designer Radiator |
| SKU / Kartell Code | ASP60-115DA |
| EAN / GTIN-13 | 5055681428693 |
| Height | 600mm |
| Width | 1140mm |
| Depth | 79mm (double panel) |
| Weight | 25.89kg |
| Orientation | Horizontal |
| Colour / Finish | Textured Grey (Matt Powder Coat) |
| Material | Mild Steel |
| Panel Type | Double Panel — Designer Oval Tube |
| BTU Output (Delta T60) | 6,223 BTU |
| Watt Output (Delta T60) | 1824W |
| Fuel Type | Central heating — gas, oil, or compatible electric |
| Pipe Centres | 1140mm |
| Wall to Pipe Centres | 60mm |
| Valve Connection | 1/2 inch BSP |
| Max Working Pressure | 7.8 bar |
| Fixings Supplied | Yes — all wall fixings included |
| Manufacturer Guarantee | 5 years — Kartell UK |
| Valves Included | Not included — sold separately (see Valves tab) |
All outputs quoted at Delta T60 — the European standard assuming 80°C flow / 60°C return in a 20°C room.
Watch our step-by-step guide. All central heating connections must be made by a qualified heating engineer.
| Pipe Centres | 1140mm |
| Wall to Pipe Centres | 60mm |
| Wall Projection | 79mm |
| Valve Connection | 1/2 inch BSP — angled, straight or corner at either end |
| Max Working Pressure | 7.8 bar |
| Compatible Systems | Sealed and open vented — gas, oil, electric |
| Fixings Supplied | Yes — wall brackets, screws, plugs, air vent, blanking plug |
Valves are not included and must be purchased separately. We recommend matching Kartell K-Design Textured Grey TRV twin packs to complement this radiator perfectly. Select your pipework type below.
When to use: Pipework rises vertically from the floor at either end and connects to the bottom tappings. This is the most common UK installation for horizontal radiators.
When to use: Pipework comes straight up through the floor directly into the bottom tapping at either end of the radiator.
When to use: Pipework comes horizontally out of the wall at either end and connects to the side tappings of the radiator valves.
ⓘ Unsure which type? Call 01282 429061 Monday to Friday and our team will advise.
Almost certainly yes. Pipe centres on this model are 1140mm, which falls within the standard bracket for older 1100–1200mm horizontal radiators. Measure the distance between your existing pipe centres before ordering to confirm.
For an average UK living room of around 15–20m² with standard insulation and double glazing, yes — 6,223 BTU is typically sufficient as the sole heat source. Use the BTU Calculator tab above to confirm for your specific room.
This double panel radiator projects 79mm from the wall — approximately 3 inches. That is shallower than many older convector radiators despite delivering significantly more heat.
Valves are not included and are sold separately. We recommend matching Kartell K-Design Textured Grey TRV twin packs — see the Valves tab for the correct type for your pipework configuration.
The Aspen carries a 5 year manufacturer guarantee from Kartell UK covering all manufacturing defects from date of purchase. This does not cover damage caused by incorrect installation or water quality issues.
Yes — this radiator is fully compatible with sealed central heating systems including gas combi, gas system, and oil boilers. Maximum working pressure 7.8 bar.
Replacing an old radiator under your living room window? The Kartell K-Rad Aspen 600 x 1140mm Textured Grey Double Horizontal Radiator (ASP60-115DA) is designed as a direct modern upgrade, matching common 1140mm pipe centre spacings and delivering 6,223 BTU from a slim 79mm double panel profile. Search terms: ASP60-115DA, 1140mm textured grey double horizontal radiator, Kartell Aspen 1140 textured grey double, 6223 BTU double panel horizontal radiator UK, under window textured grey radiator 1140mm, Kartell K-Rad 600 x 1140 textured grey.
