| Manufacturer | Kartell UK Ltd |
|---|---|
| Manufacturer Warranty | 5 Years (T&C’s Apply) |
| Weight | 4.41 |
| Orientation | Horizontal Orientation |
| Panel Type | Single Panel Radiator |
| Height | 600 mm |
| Width | 360 mm |
| Heat Output BTU | 1054 |
| Radiator Pipe Centres (mm) (Plus Valves) | 360 |
| Radiator Wall To Pipe Centres (mm) | 40 |
| Radiator Colour | Textured Grey |
| Model | Aspen Textured Grey Horizontal Single |
| Brand | K-Rad Designer Range |
| Fuel Type | Central Heating |
| Width (mm) | 360 |
| Depth (mm) | 55 |
| Height (mm) | 600 |
| Manufacturer Part No | ASP60-37SA |
Home > Radiators > Designer Radiators > Horizontal Radiators > KRAD Aspen 600 x 360mm Textured Grey Single

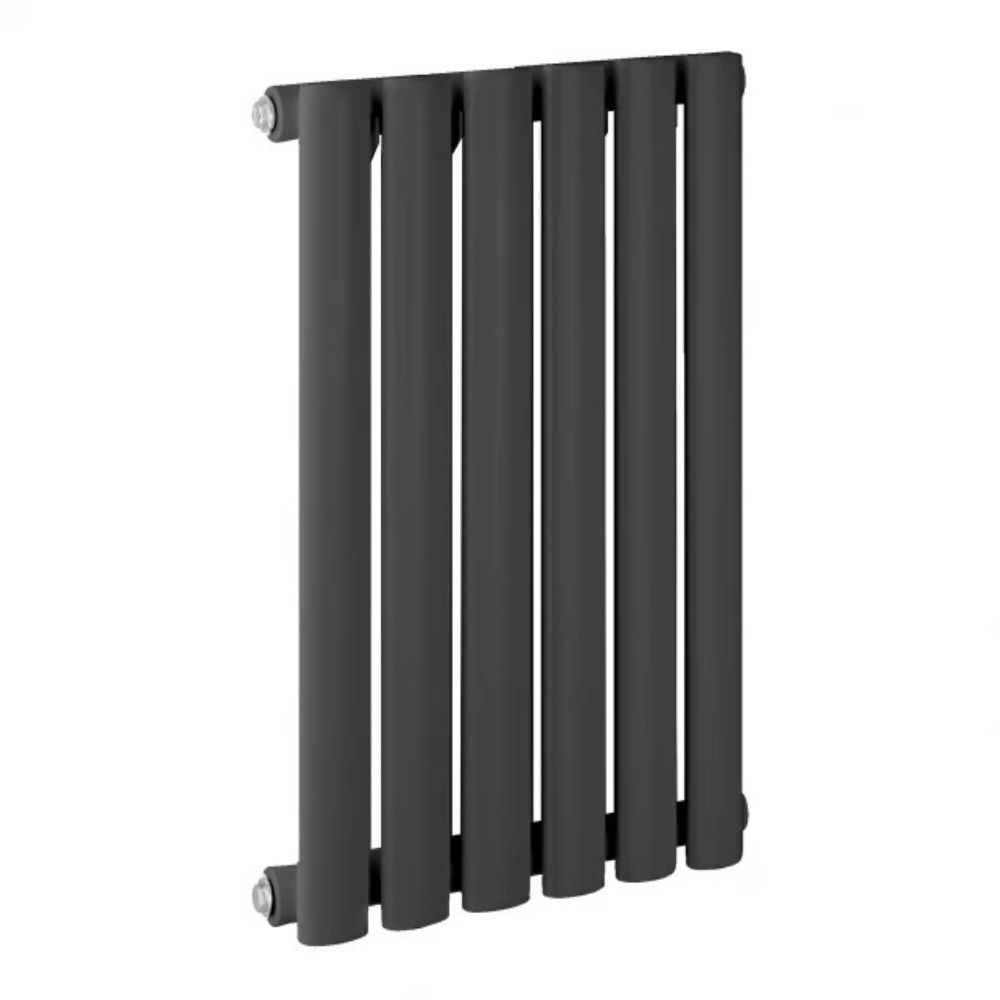

In a cloakroom, downstairs WC or compact en-suite where wall space is at an absolute premium, the Kartell K-Rad Aspen 600 x 360mm Textured Grey Single Horizontal Radiator
1,054 BTU at Delta T60
309W
5 Year Guarantee
Textured Grey Matt
Single Panel
600 x 360mm
SKU: ASP60-37SA
In a cloakroom, downstairs WC or compact en-suite where wall space is at an absolute premium, the Kartell K-Rad Aspen 600 x 360mm Textured Grey Single Horizontal Radiator delivers understated warmth in the slimmest possible package. At just 55mm deep and 360mm wide, it occupies the smallest wall footprint in the Aspen horizontal textured grey range while still producing 1,054 BTU (309W) — sufficient background heat for a small, well-insulated room. When the heating is on, it barely notices itself. When you walk into a room that matches the rest of the house in finish and quality, you do. SKU: ASP60-37SA.
At 360mm wide and 55mm deep, this is the smallest and slimmest radiator in the Aspen textured grey horizontal range — engineered for rooms where every millimetre of space counts.
Weighing just 4.41kg this is exceptionally easy to handle and fix — one person can install it comfortably without the need for a second pair of hands or heavy fixing equipment.
1,054 BTU is calibrated for compact cloakrooms, utility rooms and small en-suites in modern well-insulated properties. If your small room is poorly insulated or has single glazing, consider the double panel version (ASP60-37DA) at 1,965 BTU.
Choosing textured grey throughout the house — including the smallest rooms — creates a consistent, considered aesthetic that adds long-term value and visual coherence to the property.
This single panel model is compatible with standard central heating electric conversion elements if you later want to run it independently of the main boiler — particularly useful in cloakrooms and utility rooms.
The full manufacturer guarantee applies to every size in the Aspen range without exception, giving you 5 years of protection regardless of which model you choose.

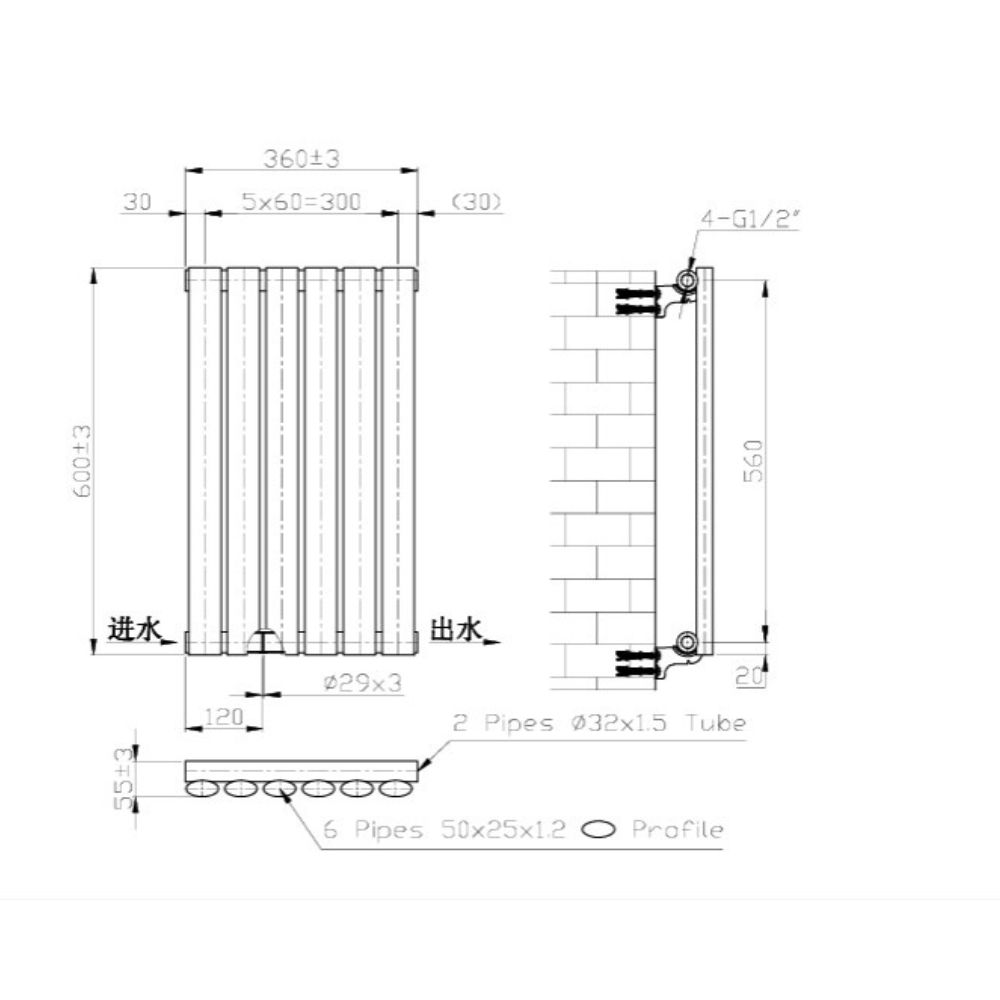

| Specification | Detail |
|---|---|
| Product Name | Kartell K-Rad Aspen 600 x 360mm Textured Grey Single Horizontal Designer Radiator |
| SKU / Kartell Code | ASP60-37SA |
| EAN / GTIN-13 | 5055681428747 |
| Height | 600mm |
| Width | 360mm |
| Depth | 55mm (single panel) |
| Weight | 4.41kg |
| Orientation | Horizontal |
| Colour / Finish | Textured Grey (Matt Powder Coat) |
| Material | Mild Steel |
| Panel Type | Single Panel — Designer Oval Tube |
| BTU Output (Delta T60) | 1,054 BTU |
| Watt Output (Delta T60) | 309W |
| Fuel Type | Central heating — gas, oil, or compatible electric |
| Pipe Centres | 360mm |
| Wall to Pipe Centres | 60mm |
| Valve Connection | 1/2 inch BSP |
| Max Working Pressure | 7.8 bar |
| Fixings Supplied | Yes — all wall fixings included |
| Manufacturer Guarantee | 5 years — Kartell UK |
| Valves Included | Not included — sold separately (see Valves tab) |
All outputs quoted at Delta T60 — the European standard assuming 80°C flow / 60°C return in a 20°C room.
Watch our step-by-step guide. All central heating connections must be made by a qualified heating engineer.
| Pipe Centres | 360mm |
| Wall to Pipe Centres | 60mm |
| Wall Projection | 55mm |
| Valve Connection | 1/2 inch BSP — angled, straight or corner at either end |
| Max Working Pressure | 7.8 bar |
| Compatible Systems | Sealed and open vented — gas, oil, electric |
| Fixings Supplied | Yes — wall brackets, screws, plugs, air vent, blanking plug |
Valves are not included and must be purchased separately. We recommend matching Kartell K-Design Textured Grey TRV twin packs to complement this radiator perfectly. Select your pipework type below.
When to use: Pipework rises vertically from the floor at either end and connects to the bottom tappings. This is the most common UK installation for horizontal radiators.
When to use: Pipework comes straight up through the floor directly into the bottom tapping at either end of the radiator.
When to use: Pipework comes horizontally out of the wall at either end and connects to the side tappings of the radiator valves.
ⓘ Unsure which type? Call 01282 429061 Monday to Friday and our team will advise.
The SA (Single) is 55mm deep and outputs 1,054 BTU. The DA (Double) is 79mm deep and outputs 1,965 BTU. Both are 360mm wide and 600mm high with the same pipe centres. Choose single for very small or well-insulated rooms; choose double where more heat output is needed.
For a very small, well-insulated modern cloakroom of 1.5–3m², 1,054 BTU can be sufficient. For larger cloakrooms or older properties with single glazing, we recommend the double panel (ASP60-37DA) at 1,965 BTU. Use the BTU Calculator with your exact dimensions to confirm.
At just 4.41kg it is one of the lightest radiators available in the UK market. A competent DIYer can position and bracket it easily, though all connections to the central heating system must be made by a qualified heating engineer.
Pipe centres are 360mm with wall to pipe centres at 60mm. This narrow 360mm spacing is specific to this size — confirm your existing pipe positions before ordering.
Technically yes — the valve connection is standard 1/2 inch BSP on all Aspen models. However, we strongly recommend matching Textured Grey valves for a cohesive finish, particularly in a cloakroom where the radiator and valves are very close to eye level.
Yes — all new steel radiators should be bled after filling and commissioning to remove any trapped air from the system. An air vent is supplied in the box for this purpose.
Searching for the smallest textured grey horizontal radiator available? The Kartell K-Rad Aspen 600 x 360mm Textured Grey Single Horizontal Radiator (ASP60-37SA) is the most compact model in the range — just 360mm wide, 55mm deep and 4.41kg — delivering 1,054 BTU for cloakrooms, en-suites and compact utility rooms. Search terms: ASP60-37SA, 360mm textured grey single horizontal radiator, small textured grey radiator 360mm, compact single panel horizontal radiator cloakroom, 1054 BTU textured grey radiator, Kartell Aspen 600 x 360 single textured grey.
