| Manufacturer | Kartell UK Ltd |
|---|---|
| Manufacturer Warranty | 5 Years (T&C’s Apply) |
| Weight | 13.71 |
| Orientation | Horizontal Orientation |
| Panel Type | Single Panel Radiator |
| Colour | Anthracite |
| Height | 600 mm |
| Width | 1140 mm |
| Heat Output BTU | 3344 |
| Radiator Pipe Centres (mm) (Plus Valves) | 1140 |
| Radiator Wall To Pipe Centres (mm) | 40 |
| Radiator Colour | Anthracite |
| Model | Aspen Anthracite Horizontal Single |
| Brand | K-Rad Designer Range |
| Fuel Type | Central Heating |
| Width (mm) | 1140 |
| Depth (mm) | 55 |
| Height (mm) | 600 |
| Manufacturer Part No | ASP60-115SA |
Home > Radiators > Designer Radiators > Horizontal Radiators > KRAD Aspen 600 x 1140mm Textured Grey Single
For rooms that are already reasonably warm or where you simply want to add designer character without dominating the space, the Kartell K-Rad Aspen 600 x 1140mm Textured Gr.

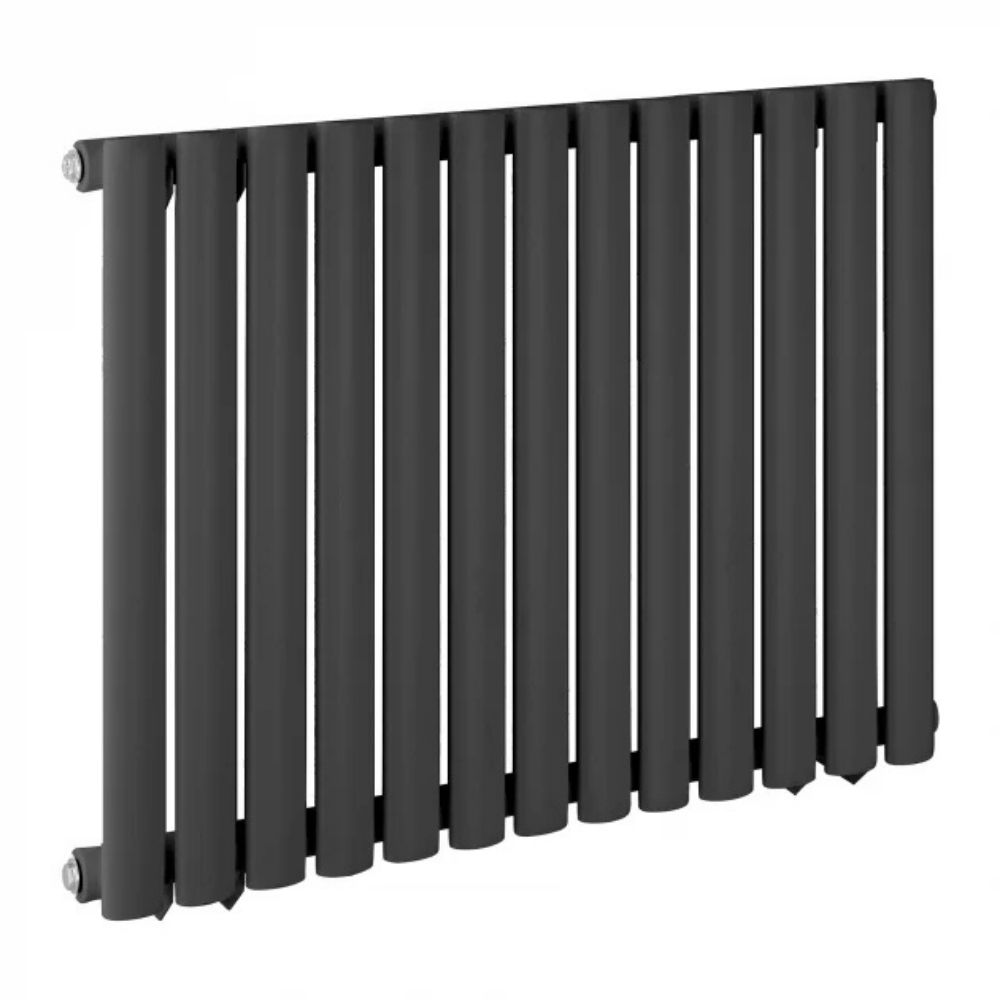

For rooms that are already reasonably warm or where you simply want to add designer character without dominating the space, the Kartell K-Rad Aspen 600 x 1140mm Textured Grey Single Horizontal Radiator is the considered choice. The single panel profile keeps the radiator visually lighter and the wall projection to just 55mm, while still delivering a solid 3,344 BTU (980W) — comfortably sufficient for a mid-sized bedroom, a study, or a well-insulated open hallway. The textured grey matt finish adds a premium touch that a plain white radiator simply cannot match. SKU: ASP60-115SA.
Single panel construction projects just 55mm from the wall — ideal where sofas, beds or fitted wardrobes sit close to the radiator, or where a minimal visual profile is preferred.
At 3,344 BTU, this radiator is correctly sized for a standard double bedroom or home office without over-heating the space or wasting energy.
The deep matt textured grey powder coat coordinates with dark flooring, anthracite skirting boards and contemporary Scandi-style interiors that white radiators disrupt visually.
The 1140mm span creates a long, low horizontal feature rather than a bulky box, complementing the proportions of most modern UK rooms.
Despite the single panel, this radiator carries the full 5 year Kartell UK manufacturer guarantee — the same protection as the double panel version.

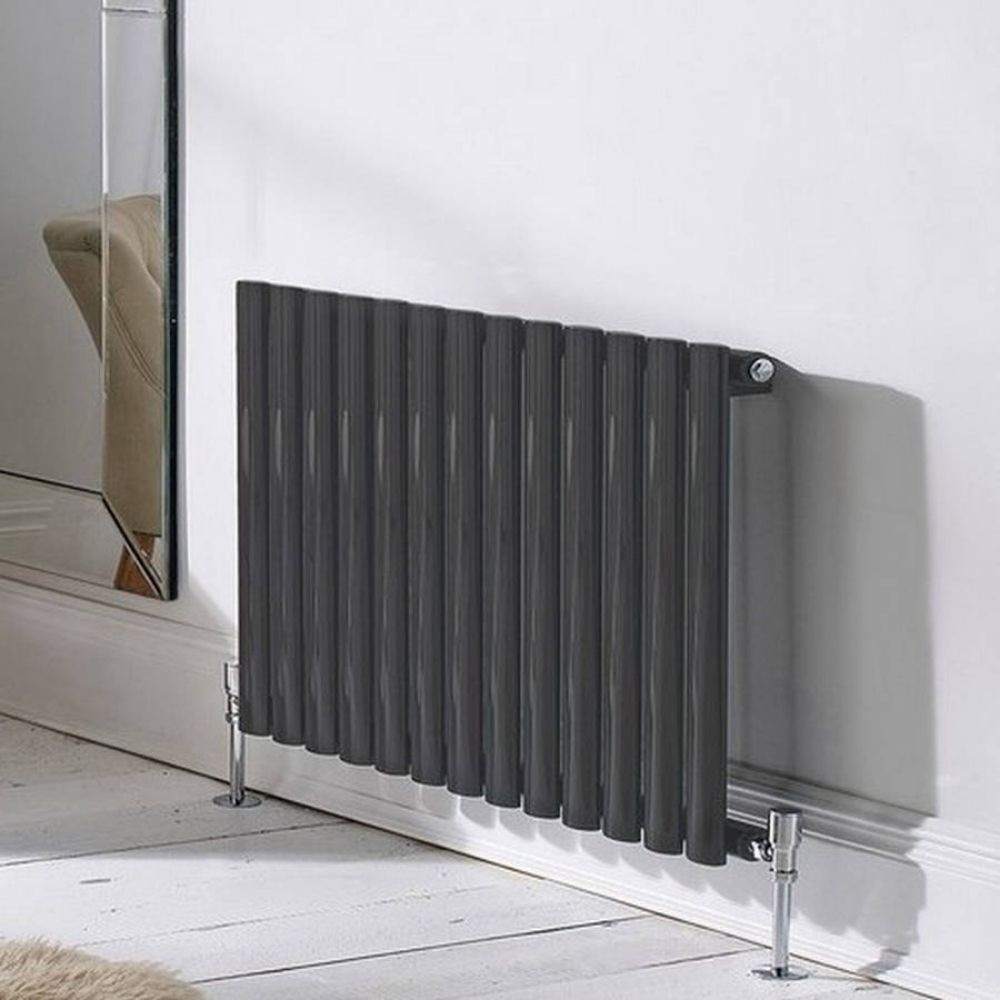

Sits neatly beneath standard window sill heights, allowing natural light in while keeping the room warm from the most thermally efficient wall position.
| Specification | Detail |
|---|---|
| Product Name | Kartell K-Rad Aspen 600 x 1140mm Textured Grey Single Horizontal Designer Radiator |
| SKU / Kartell Code | ASP60-115SA |
| EAN / GTIN-13 | 5055681428709 |
| Height | 600mm |
| Width | 1140mm |
| Depth | 55mm (single panel) |
| Weight | 13.71kg |
| Orientation | Horizontal |
| Colour / Finish | Textured Grey (Matt Powder Coat) |
| Material | Mild Steel |
| Panel Type | Single Panel — Designer Oval Tube |
| BTU Output (Delta T60) | 3,344 BTU |
| Watt Output (Delta T60) | 980W |
| Fuel Type | Central heating — gas, oil, or compatible electric |
| Pipe Centres | 1140mm |
| Wall to Pipe Centres | 60mm |
| Valve Connection | 1/2 inch BSP |
| Max Working Pressure | 7.8 bar |
| Fixings Supplied | Yes — all wall fixings included |
| Manufacturer Guarantee | 5 years — Kartell UK |
| Valves Included | Not included — sold separately (see Valves tab) |
All outputs quoted at Delta T60 — the European standard assuming 80°C flow / 60°C return in a 20°C room.
Watch our step-by-step guide. All central heating connections must be made by a qualified heating engineer.

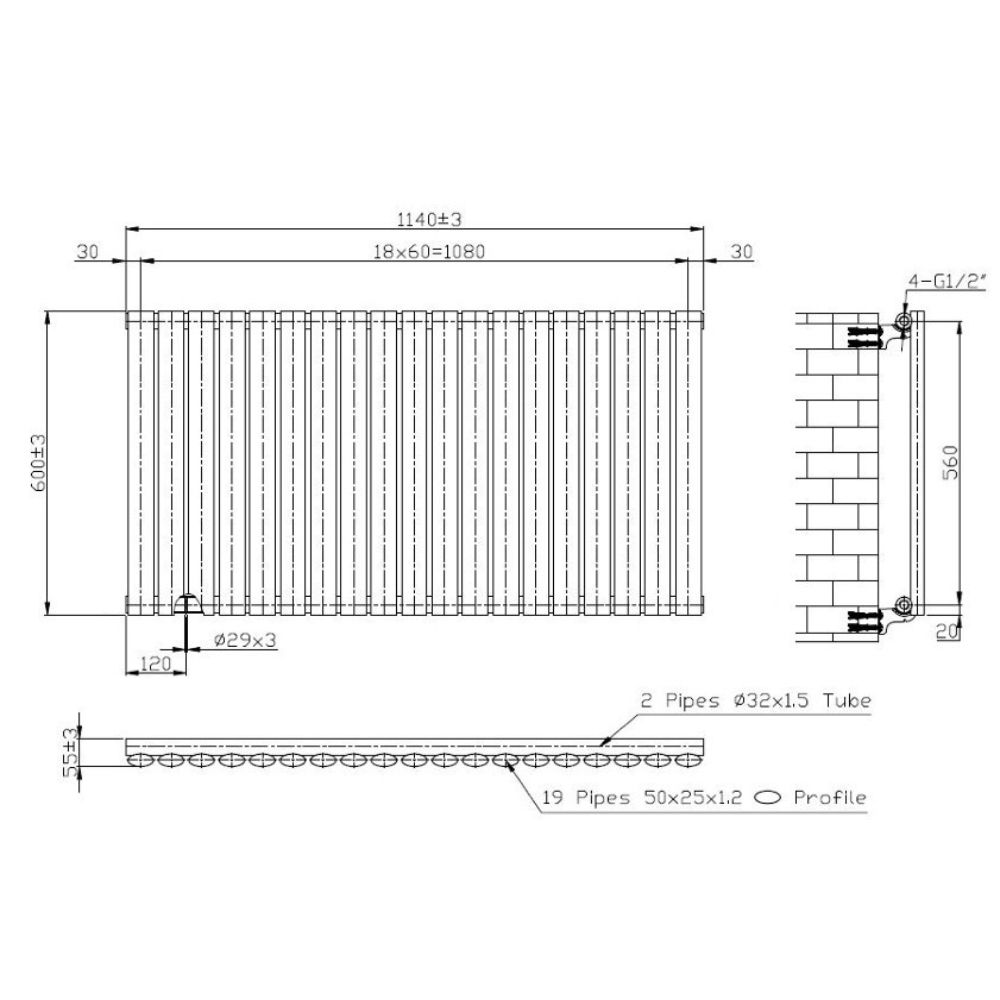

| Pipe Centres | 1140mm |
| Wall to Pipe Centres | 60mm |
| Wall Projection | 55mm |
| Valve Connection | 1/2 inch BSP — angled, straight or corner at either end |
| Max Working Pressure | 7.8 bar |
| Compatible Systems | Sealed and open vented — gas, oil, electric |
| Fixings Supplied | Yes — wall brackets, screws, plugs, air vent, blanking plug |
Valves are not included and must be purchased separately. We recommend matching Kartell K-Design Textured Grey TRV twin packs to complement this radiator perfectly. Select your pipework type below.
When to use: Pipework rises vertically from the floor at either end and connects to the bottom tappings. This is the most common UK installation for horizontal radiators.
When to use: Pipework comes straight up through the floor directly into the bottom tapping at either end of the radiator.
When to use: Pipework comes horizontally out of the wall at either end and connects to the side tappings of the radiator valves.
ⓘ Unsure which type? Call 01282 429061 Monday to Friday and our team will advise.
The single panel (ASP60-115SA) has a 55mm depth and outputs 3,344 BTU. The double panel (ASP60-115DA) is 79mm deep and outputs 6,223 BTU. Choose single for moderate heating needs or where wall projection matters; choose double for larger rooms or faster heat-up times.
For a standard UK double bedroom of around 10–14m² with average insulation and double glazing, 3,344 BTU is typically sufficient. Use the BTU Calculator tab above to check against your exact room dimensions.
This is a standard central heating radiator suitable for bathroom use provided it is installed in compliance with Part P of the Building Regulations and is not within zones 0, 1 or 2 as defined by BS 7671. We recommend consulting a qualified installer.
Pipe centres are 1140mm, with wall to pipe centres at 60mm. These are the same as the double panel version, so both models are interchangeable in the same pipework position.
Yes — both single and double panel Aspen models use standard 1/2 inch BSP connections, so the same Textured Grey TRV twin packs fit both. See the Valves tab for angled, straight and corner options.
A single panel does heat up marginally more slowly than a double due to less surface area, however the difference is minimal in normal use. The single panel also cools more quickly when the heating turns off, which can be an advantage in rooms with independent TRV control.
Looking for a slim textured grey horizontal radiator 1140mm wide? The Kartell K-Rad Aspen 600 x 1140mm Textured Grey Single Horizontal Radiator (ASP60-115SA) delivers 3,344 BTU from a 55mm single panel profile — the ideal choice for bedrooms, home offices and well-insulated spaces where a double panel would be excessive. Search terms: ASP60-115SA, 1140mm textured grey single horizontal radiator, Kartell Aspen 1140 textured grey single, 3344 BTU single panel horizontal radiator, slim textured grey radiator 1140mm, Kartell K-Rad 600 x 1140 single textured grey.
