| Manufacturer | Kartell UK Ltd |
|---|---|
| Manufacturer Warranty | 5 Years (T&C’s Apply) |
| Weight | 6.56 |
| Orientation | Horizontal Orientation |
| Panel Type | Single Panel Radiator |
| Colour | White |
| Height | 600 mm |
| Width | 540 mm |
| Heat Output BTU | 1587 |
| Radiator Pipe Centres (mm) (Plus Valves) | 540 |
| Radiator Colour | White |
| Model | Aspen White Horizontal Single |
| Brand | K-Rad Designer Range |
| Fuel Type | Central Heating |
| Width (mm) | 540 |
| Depth (mm) | 55 |
| Height (mm) | 600 |
| Manufacturer Part No | ASP60-55SW |
Home > Radiators > Designer Radiators > Horizontal Radiators > Kartell K-Rad Aspen Horizontal Radiator 600 x 540mm White Single — 1,661 BTU

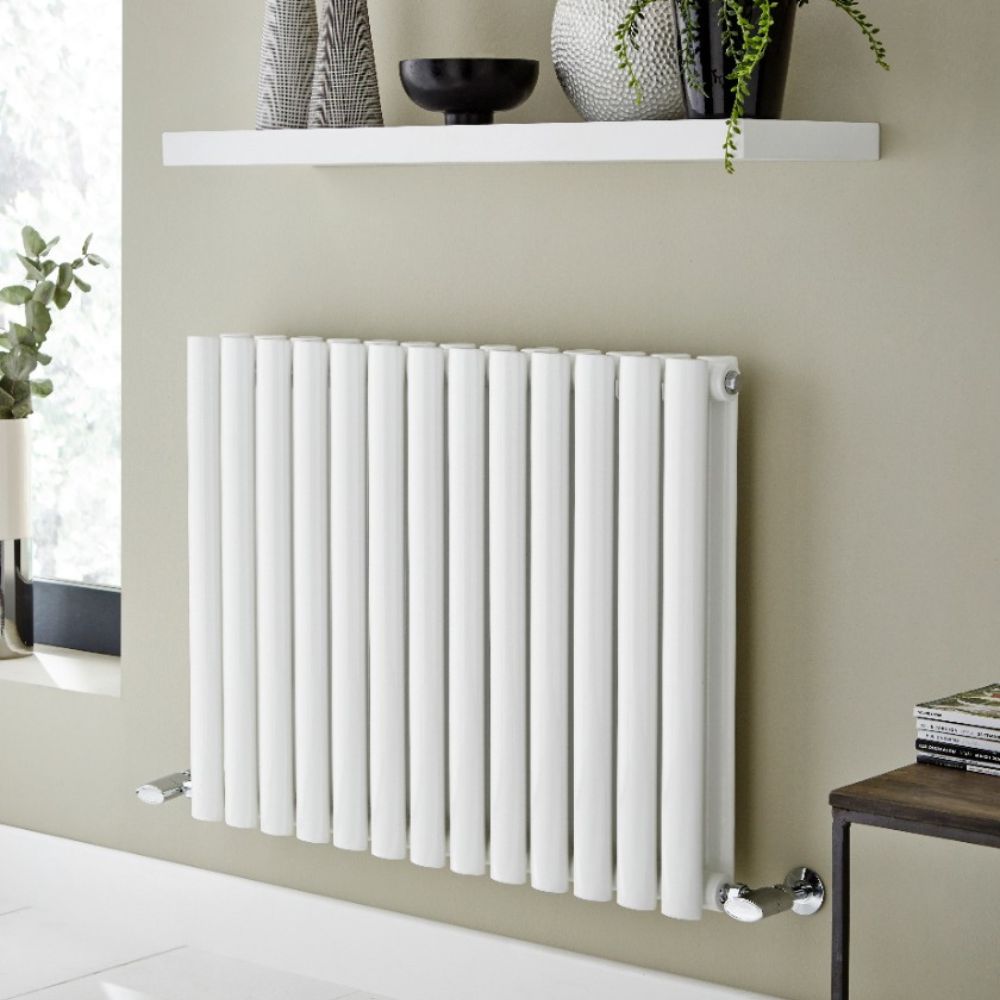

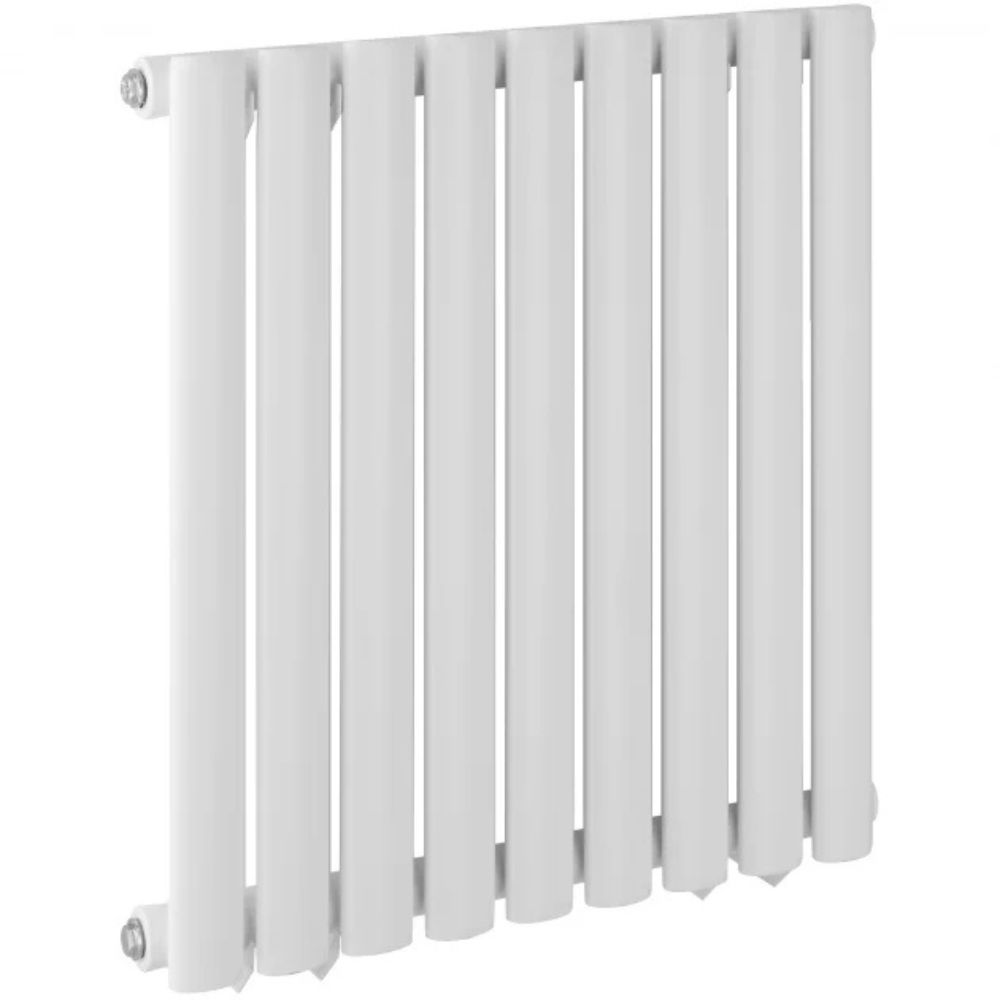

A single panel horizontal designer radiator in gloss white. 600mm high, 540mm wide, 55mm deep, delivering 1,661 BTU at Delta T60. 540mm pipe centres. 5 year Kartell UK guarantee. All fixings included.
Verified from Kartell UK directly. Sub 2000 BTU — suitable for small rooms and bathrooms. Use the BTU Calculator tab to confirm.
540mm pipe centres, 51mm wall to pipe centres. Compact format suits tight wall spaces. 55mm single panel depth.
At 55mm deep, this single panel sits close to the wall — one of the slimmest profiles available for a designer horizontal radiator.
Classic gloss white suits all interior styles. Matches standard UK radiator valves for a seamless finish. Compatible with most central heating systems.
Greater surface area than round tubes for more efficient heat transfer. Premium aesthetic over standard flat panel radiators.
Weighing 6.56kg. All wall brackets, fixing screws, wall plugs, air vent and blanking plug included. Pressure tested to 7.8 bar. Registered with Kartell UK.
| Specification | Detail |
|---|---|
| Product Name | Kartell K-Rad Aspen Horizontal Radiator 600 x 540mm White Single — 1,661 BTU |
| SKU / Kartell Code | ASP60-55SW |
| EAN / GTIN | 5055681407698 |
| Height | 600mm |
| Width | 540mm |
| Depth (Wall Projection) | 55mm |
| Orientation | Horizontal |
| Colour / Finish | Gloss White |
| Material | Mild Steel |
| Style | Single Panel — Oval Tube Designer |
| BTU Output (Delta T60) | 1,661 BTU |
| Watt Output (Delta T60) | 487W |
| Fuel Type | Central heating — gas, oil, or electric |
| Pipe Centres (Tapping Centres) | 540mm |
| Wall to Pipe Centres | 51mm |
| Valve Connection | 1/2 inch BSP |
| Empty Weight | 6.56 kg |
| Max Working Pressure | 7.8 bar |
| Fixings Supplied | Yes — all fixings included |
| Manufacturer Guarantee | 5 years — Kartell UK |
| Valves | Not included — sold separately (see Valves tab) |
Understanding Delta T60: All BTU figures quoted at Delta T60 — the European standard assuming mean water temperature 60°C above room temperature.
Professional installation by a Gas Safe registered engineer is strongly recommended for all connections to gas central heating systems.
| Pipe Centres (Tapping Centres) | 540mm |
| Wall to Pipe Centres | 51mm |
| Wall Projection | 55mm |
| Height | 600mm |
| Valve Connection | 1/2 inch BSP — angled, straight, or corner valves |
| Max Working Pressure | 7.8 bar |
| Compatible Systems | Sealed and open vented — gas, oil, electric, heat pump |
| Fixings Supplied | Yes — wall brackets, screws, plugs, air vent, blanking plug |
Valves are not included and must be purchased separately. For this gloss white radiator we recommend White TRV valves. Select your pipework type below.
When to use: Pipework rises vertically from the floor to the side connections. Most common UK installation type.
When to use: Pipework rises directly from the floor in a straight vertical line to the bottom tappings.
When to use: Pipework comes horizontally out of the wall to the side connections of the radiator.
Looking for a 600mm high 540mm wide single white horizontal radiator? The Kartell K-Rad Aspen Horizontal Radiator 600 x 540mm White Single — 1,661 BTU (ASP60-55SW) is confirmed from Kartell UK. Also found via: 600 x 540mm single white horizontal radiator UK, 600 x 550mm single white radiator, Kartell Aspen 540 single white horizontal, ASP60-55SW, 1,661 BTU horizontal single white radiator, single panel white horizontal radiator 600mm high 540mm wide, EAN 5055681407698.
