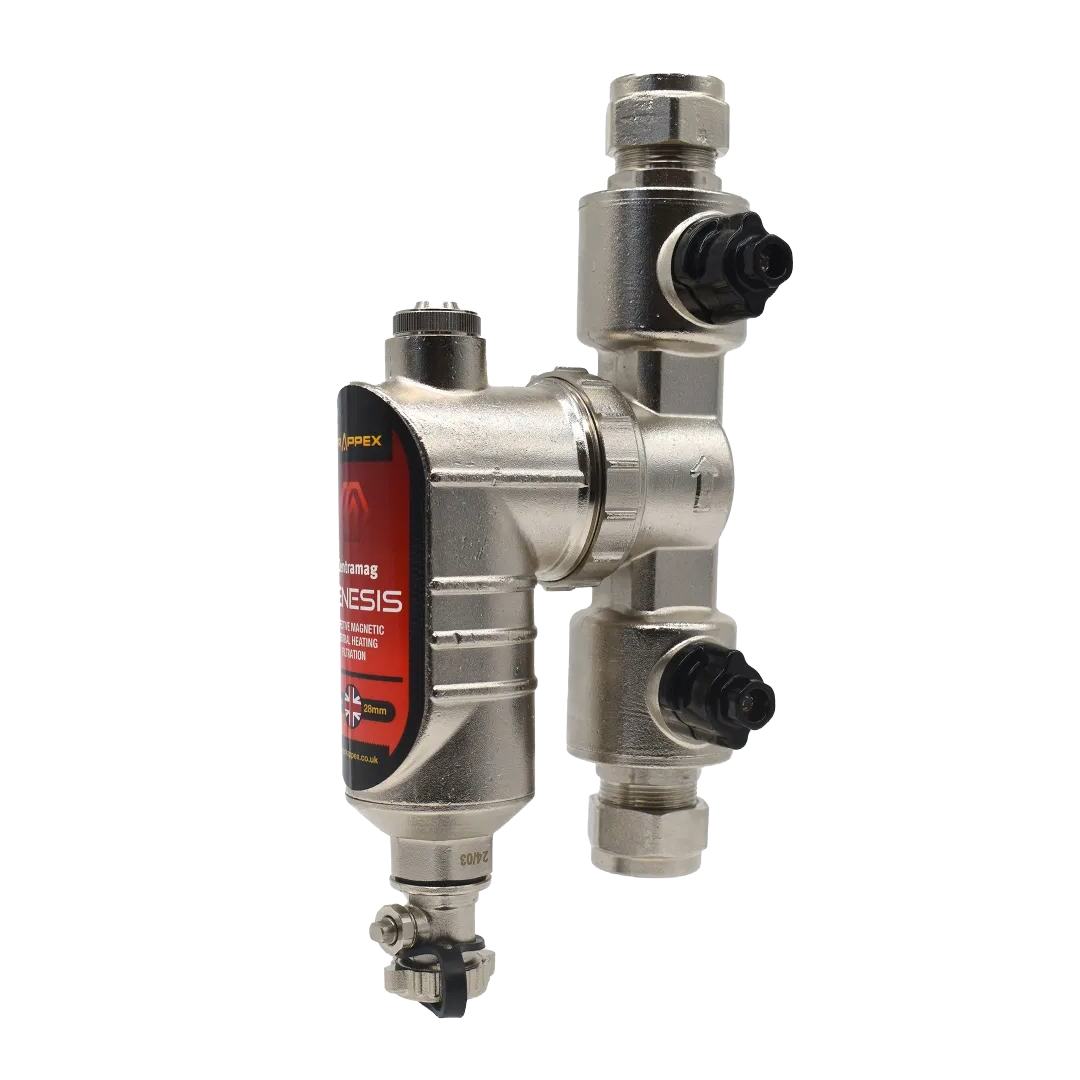

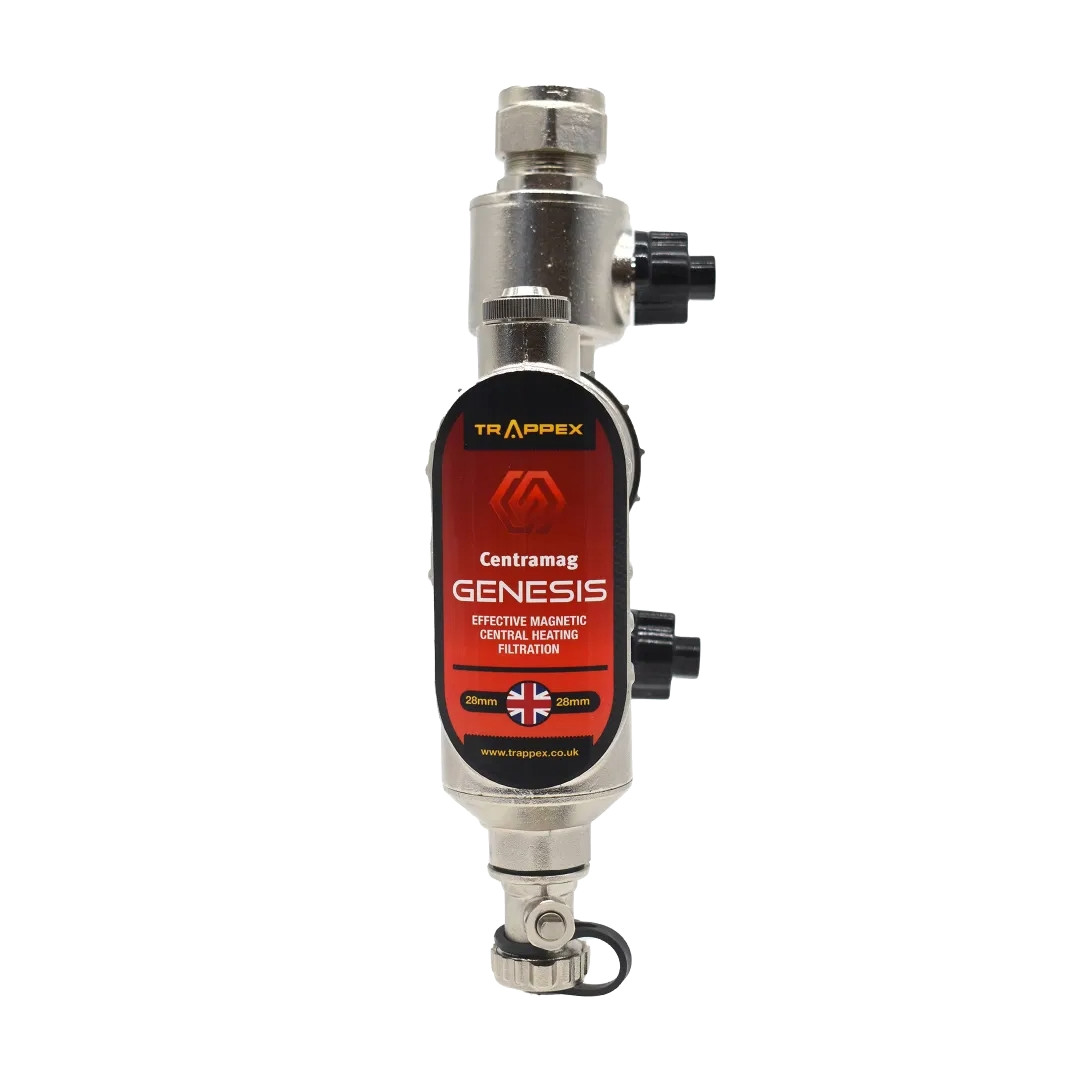

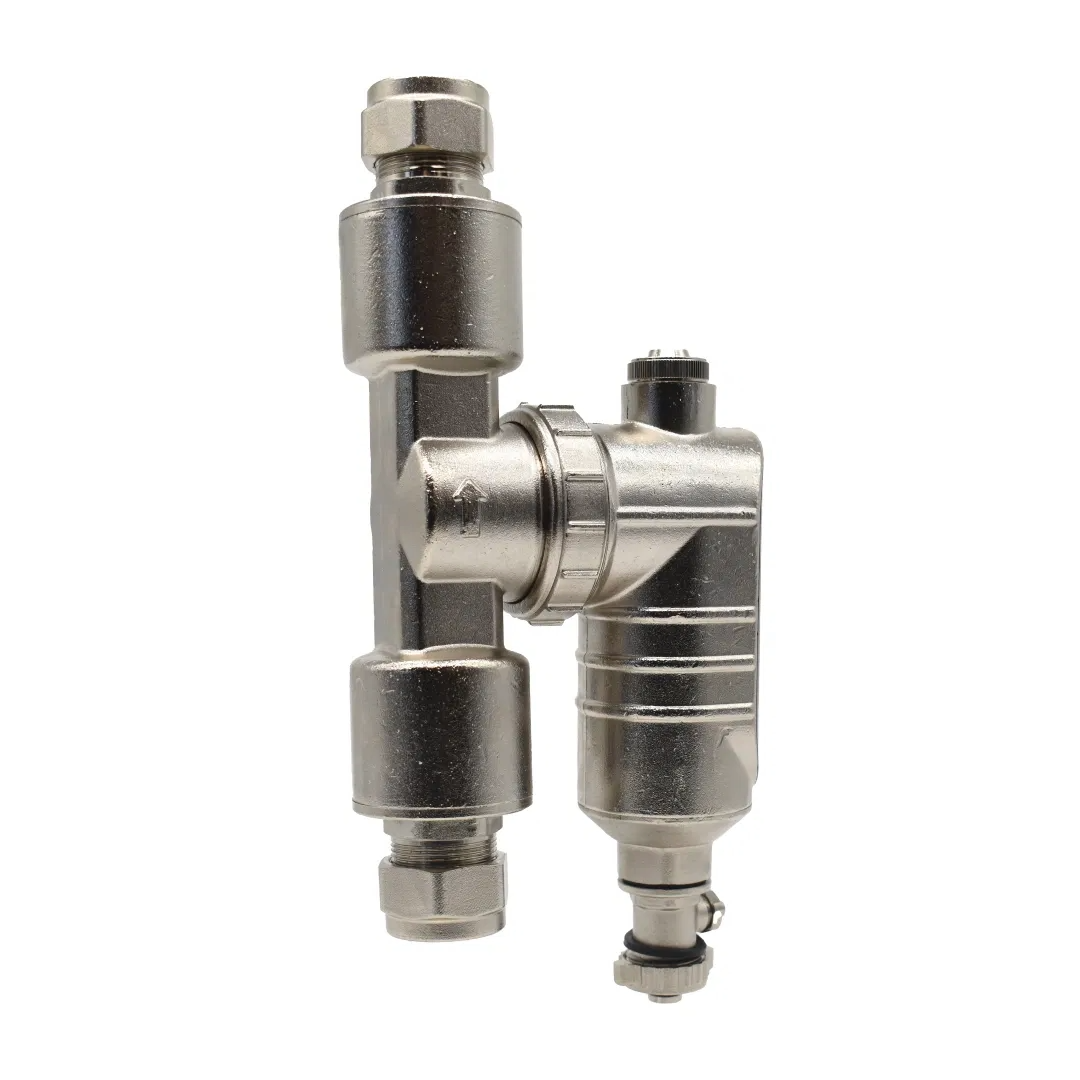

Trappex 28mm Genesis Brass Filter With Valves

Product Details

The Trappex 28mm Genesis Brass Filter with Valves is designed to deliver superior filtration for central heating systems, protecting against both magnetic and non-magnetic particles. With a robust brass construction and 28mm connection, it ensures long-term efficiency and reliability.

Equipped with a 10,000 gauss neodymium magnet, this filter captures magnetic debris, while its advanced design also traps non-magnetic particles. Easy to install and maintain, the filter can be fitted horizontally, vertically, or at angles, offering maximum flexibility.

Thanks to its triple radial EPDM seals, slip socket, and integrated plug & drain valve, the Trappex Genesis Filter is simple to clean without disassembly, reducing downtime and extending system lifespan.

Key Features:

• 28mm Magnetic Filter: Captures both magnetic and non-magnetic particles
• Durable Brass Body: Long-lasting, high-quality construction
• Triple Radial Seals: EPDM seals for secure, leak-free operation
• Easy to Clean: No disassembly required
• Flexible Installation: Horizontal, vertical, or 50° angled fitting
• Powerful Magnet: 10,000 gauss neodymium for effective debris capture
• High Performance: Up to 10 bar pressure and 100°C operating temperature
• 25-Year Warranty: Long-term peace of mind

Technical Specifications:

• Product Code: Trappex Genesis 28mm
• Body Material: Brass
• Connection Size: 28mm
• Seal Type: Triple radial EPDM seals
• Magnet Strength: 10,000 gauss neodymium
• Maximum Pressure: 10 bar
• Maximum Temperature: 100°C
• Installation Options: Horizontal, vertical, angled
• Warranty: 25 years
